C1TAAT0-E Series
Manufacturer: ODU
Beta
⌘K

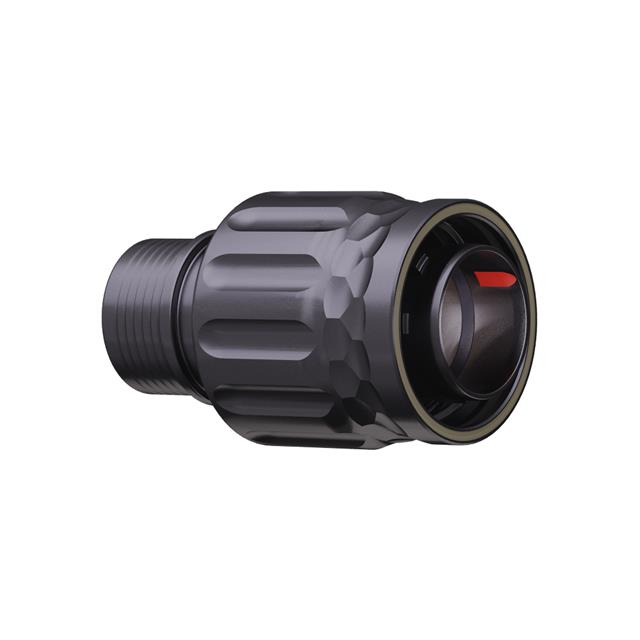

ODU AMC SERIES T SCREW-LOCK PLUG
| Part | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Shielding | Features | Voltage Rating | Number of Positions | Shell Size - Insert | Orientation | Shell Finish | Termination | Primary Material | Shell Material | Connector Type | Cable Opening | Cable Opening | Material Flammability Rating | Mounting Type | Contact Finish - Mating | Ingress Protection | Color | Contact Material | Insert Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
5 A | -65 ░C | 175 °C | Shielded | Coupling Nut | 50 V | 10 | 9 | A | Tin Nickel | Crimp | Metal | Aluminum | Plug Male Pins | 0.399 in | 7.6 mm | UL94 V-0 | Free Hanging (In-Line) | Gold | IP68 IP69K | Silver | Copper Alloy | Polyetheretherketone (PEEK) | 50 µin | 1.27 µm | Threaded | |
5 A | -65 ░C | 175 °C | Shielded | Coupling Nut | 50 V | 8 | 9 | A | Tin Nickel | Crimp | Metal | Aluminum | Plug Male Pins | 0.399 in | 7.6 mm | UL94 V-0 | Free Hanging (In-Line) | Gold | IP68 IP69K | Silver | Copper Alloy | Polyetheretherketone (PEEK) | 50 µin | 1.27 µm | Threaded |
