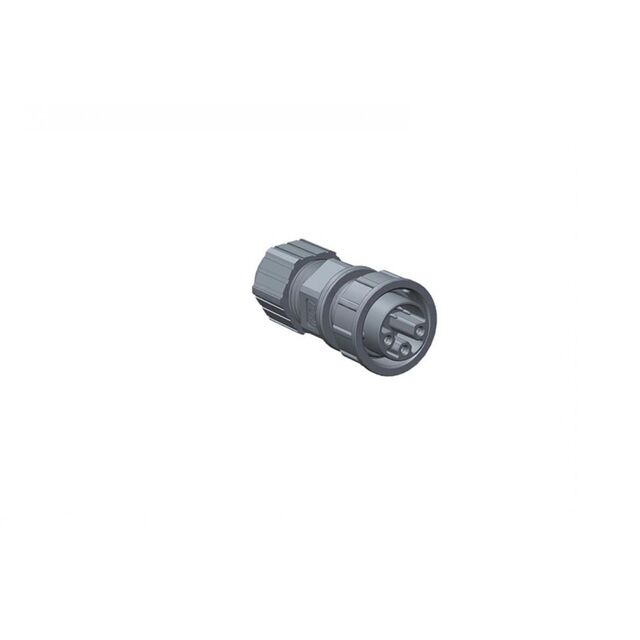

CBU-08BFDA Series
Manufacturer: Amphenol LTW
Catalog
CERES, MIDDLE SIZE, PLASTIC, 10A+2A, 08 PINS, FEMALE CONNECTOR, FEMALE (POWER) + MALE (SIGNAL) CONTACT, STRAIGHT, 3 POINTS LOCK,
| Part | Contact Material | Connector Type | Ingress Protection | Orientation | Primary Material | Shielding | Number of Positions | Color | Shell Size - Insert | Contact Finish - Mating | Insert Material | Features | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Shell Material | Backshell Material, Plating | Current Rating (Amps) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol LTW | Copper Alloy | Female Sockets Male Pins Plug | IP67 - Dust Tight Waterproof | Keyed | Plastic | Unshielded | 8 | Black | C | Gold | Polyamide (PA) Nylon Glass Filled | Backshell Coupling Nut | 7.6 mm | 0.378 in | 9.6 mm | 0.299 in | Glass Filled Nylon Polyamide (PA) | Nylon Polyamide (PA) | 2 A 10 A | Free Hanging (In-Line) |
