WS-SE Series

Catalog

FASTENER, SADDLE CLAMP, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 18 MM, 14 MM

Part	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]	Type Attributes	Color	Panel Hole Size	Panel Hole Size [diameter]	Height [z]	Height [z]	Material	Opening Size [y]	Opening Size [x]	Opening Size [x]	Opening Size [y]	Length	Length	Material Flammability Rating	Mounting Type	Width [x]	Width [x]	Type	Panel Thickness [Min]	Panel Thickness [Max]	Panel Hole Size [diameter]	Length [x]	Length [x]	Panel Hole Size	Opening Size [z]	Opening Size [z]	Width [y]	Width	Height	Height	Features
Essentra Components WS-SE3-1-01	2.59 mm	1.57 mm	0.062 in	0.102 in	Side Entry	Natural	7.98 mm	0.314 in	0.22 in	5.59 mm	Polyamide (PA66) Nylon 6/6	0.118 in	6.83 mm	0.269 in	3 mm	0.708 in	17.98 mm	UL94 V-2	Arrowhead	0.551 in	14 mm	Clip Wire Saddle

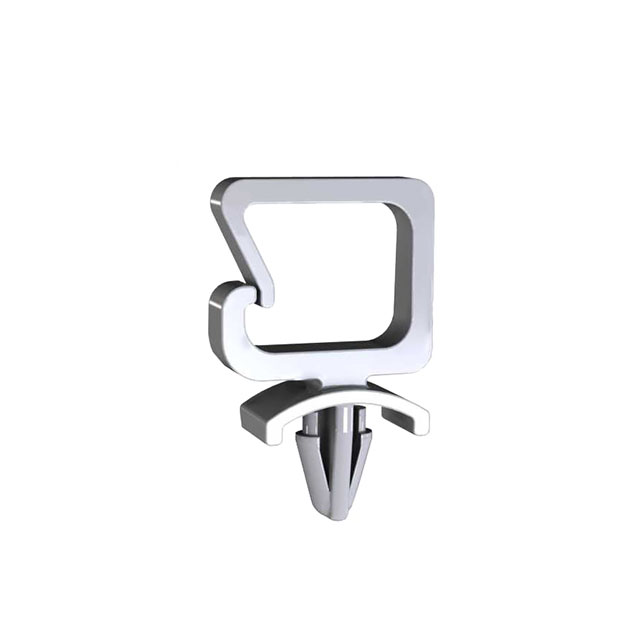

Essentra Components WS-SE-A-3-01	1.8 mm	0.61 mm			Side Entry	Natural		0.189 in	0.71 in	18.03 mm	Polyamide (PA66) Nylon 6/6	0.47 in	11.94 mm	0.47 in	11.94 mm			UL94 V-2	Arrowhead Winged	0.28 in	7.11 mm	Clip Wire Saddle	0.024 in	0.071 "	4.8 mm	0.06 ft	18.29 mm

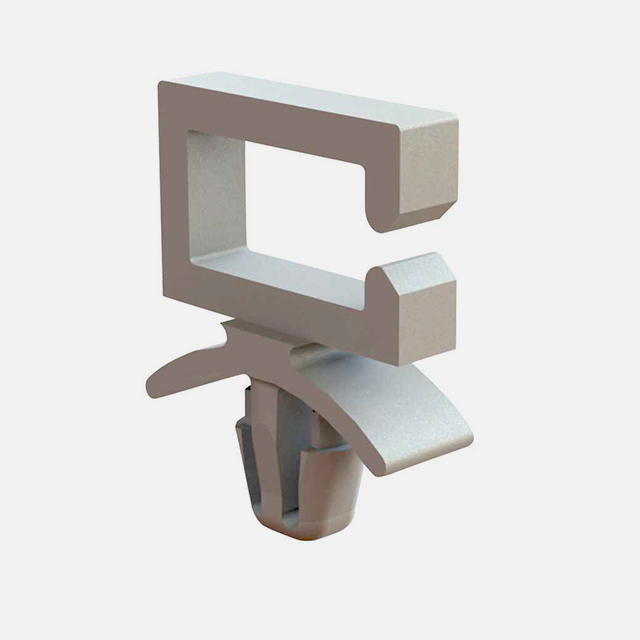

Essentra Components WS-SE-A-1-01	1.98 mm	0.79 mm			Side Entry	Natural	4.75 mm		0.42 in	10.67 mm	Polyamide (PA66) Nylon 6/6		10.16 mm	0.4 in				UL94 V-2	Arrowhead Winged			Clip Wire Saddle	0.031 "	0.078 in				0.187 in	0.22 "	5.59 mm	0.22 in	5.59 mm

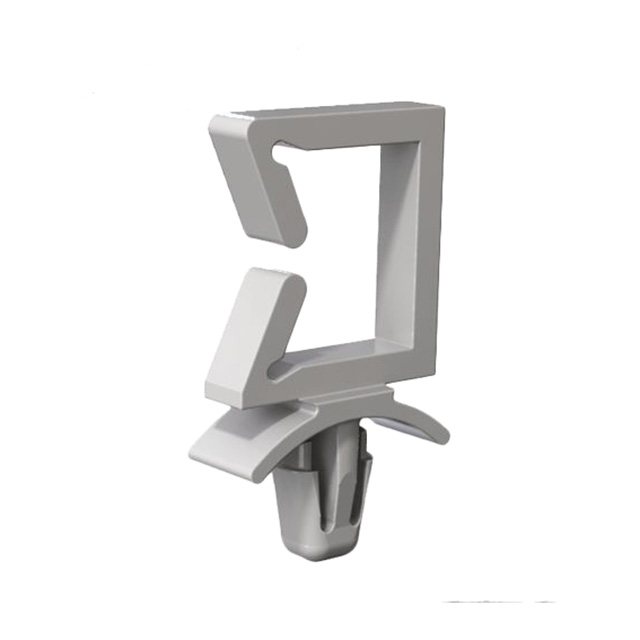

Essentra Components WS-SE-A-2-19	1.98 mm	0.79 mm			Side Entry	Natural	4.75 mm				Polyamide (PA66) Nylon 6/6		10.16 mm	0.4 in				UL94 V-0	Arrowhead Winged			Clip Wire Saddle	0.031 "	0.078 in				0.187 in	0.45 in	11.43 mm	0.22 in	5.59 mm	16.51 mm	0.65 in	Flame Retardant
