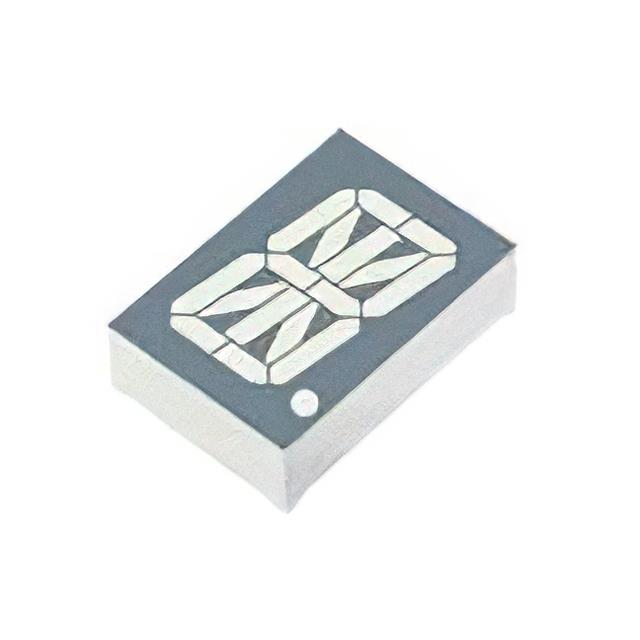

PSA12 Series
Manufacturer: Kingbright
Beta
⌘K
PSA12-11SRWA
| Part | Current - Test | Digit/Alpha Size | Digit/Alpha Size | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Number of Characters | Voltage - Forward (Vf) (Typ) | Wavelength - Peak | Common Pin | Package / Case | Power Dissipation (Max) [Max] | Millicandela Rating | Display Type | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Kingbright | 10 mA | 30.48 mm | 1.2 in | 0.463 " | 1.575 in | 27.5 mm | 11.75 mm | 40 mm | 1.083 in | 1 | 3.6 V | 655 nm | Common Anode | 18-DIP (0.800" 20.32mm) | 75 mw | 28 mcd | 16-Segment Alphanumeric | Red |
 Kingbright | 10 mA | 30.48 mm | 1.2 in | 0.453 " | 1.575 in | 27.5 mm | 11.5 mm | 40 mm | 1.083 in | 1 | 1.85 V 3.7 V | 645 nm | Common Anode | 18-DIP (0.800" 20.32mm) | 75 mw | 63 mcd | 16-Segment Alphanumeric | Red |
