5988091 Series

Manufacturer: DIALIGHT

Catalog

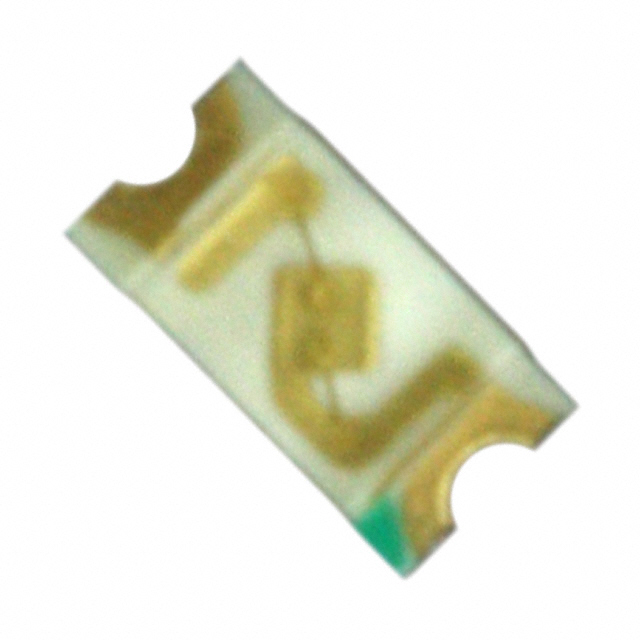

LED, BLUE, SMD, 0603, 20 MA, 3.2 V, 475 NM

Part	Configuration	Package / Case	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Lens Size [y]	Lens Size [x]	Current - Test	Wavelength - Dominant	Viewing Angle	Height (Max) [z]	Lens Style	Lens Transparency	Color	Mounting Type	Lens Color	Millicandela Rating	Voltage - Forward (Vf) (Typ)
DIALIGHT 5988091102F	Standard	1608 Metric	0603	1.6 mm	0.8 mm	0.8 mm	1.1 mm	20 mA	473 nm	140 °	0.7 mm	Rectangle with Flat Top	Clear	Blue	Surface Mount	Colorless	90 mcd	3.2 V
DIALIGHT 5988091107F	Standard	1608 Metric	0603	1.6 mm	0.8 mm	0.8 mm	1.1 mm	20 mA	470 nm	140 °	0.7 mm	Rectangle with Flat Top	Clear	Blue	Surface Mount	Colorless	140 mcd 150 mcd	3.2 V
