V60D120 Series

Catalog

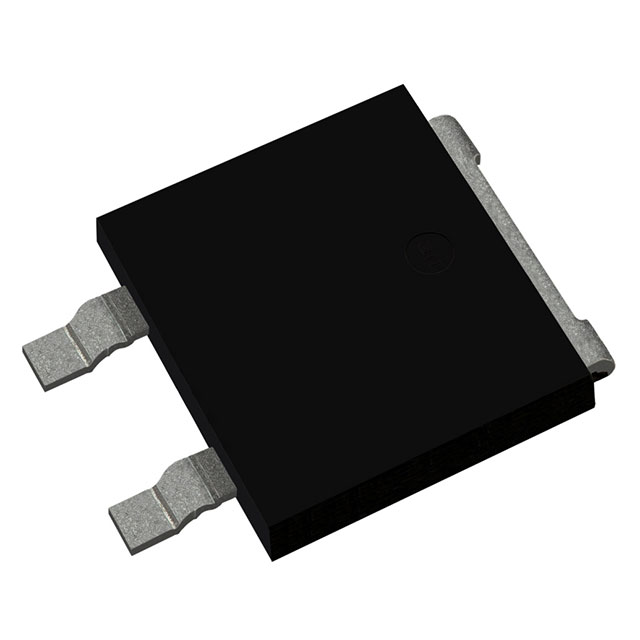

DIODE ARR SCHOT 120V 30A TO263AC

Part	Diode Configuration	Qualification	Voltage - DC Reverse (Vr) (Max) [Max]	Supplier Device Package	Current - Reverse Leakage @ Vr	Mounting Type	Grade	Package / Case	Voltage - Forward (Vf) (Max) @ If [Max]	Technology	Current - Average Rectified (Io) (per Diode)	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Speed
Vishay General Semiconductor - Diodes Division V60D120CHM3/I	1 Pair Common Cathode	AEC-Q101	120 V	TO-263AC (SMPD)	800 µA	Surface Mount	Automotive	D2PAK (2 Leads + Tab) TO-263-3 Variant	960 mV	Schottky	30 A	150 °C	-40 °C	200 mA 500 ns
Vishay General Semiconductor - Diodes Division V60D120C-M3/I	1 Pair Common Cathode		120 V	SMPD	800 µA	Surface Mount		D2PAK (2 Leads + Tab) TO-263-3 Variant	960 mV	Schottky	30 A	150 °C	-40 °C	200 mA 500 ns
