PPPC272 Series

Catalog

CONN HDR 54POS 0.1 GOLD PCB

Part	Contact Shape	Contact Finish Thickness - Post	Contact Material	Insulation Material	Contact Finish - Post	Insulation Color	Connector Type	Number of Rows [custom]	Number of Positions	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Fastening Type	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Type	Mounting Type	Number of Positions Loaded	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Termination	Voltage Rating	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Insulation Height [z]	Insulation Height [z]

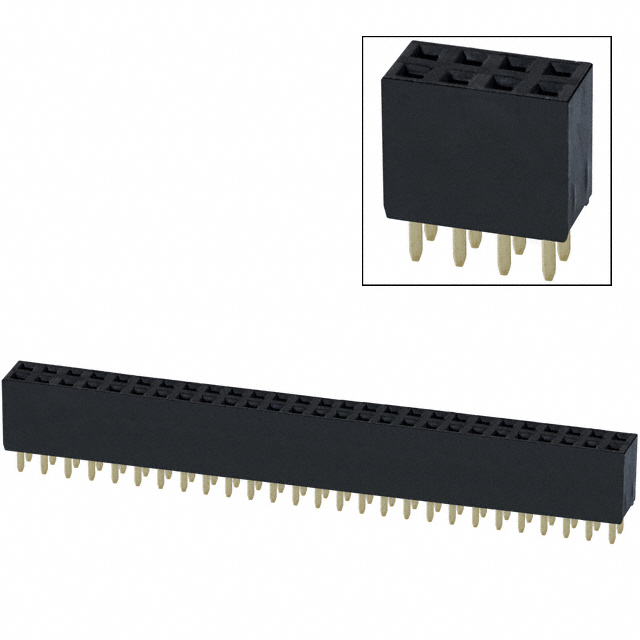

Sullins Connector Solutions PPPC272LFBN	Square	Flash	Phosphor Bronze	Polyester	Gold	Black	Header	2	54	0.1 "	2.54 mm	0.126 "	3.2 mm	Push-Pull	UL94 V-0	0.1 in	2.54 mm	Female Socket	Through Hole	All	Flash	0.335 "	8.51 mm	Solder	250 V	Gold	-40 C	105 ░C	3 A

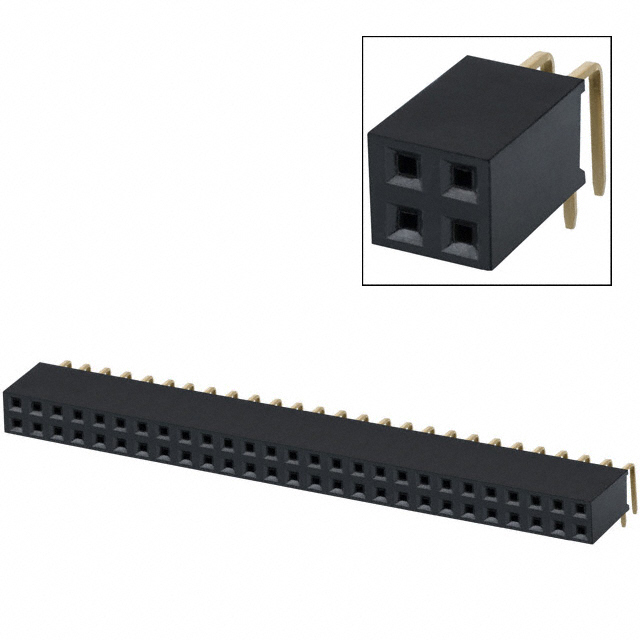

Sullins Connector Solutions PPPC272LJBN-RC	Square	Flash	Phosphor Bronze	Polyester	Gold	Black	Header	2	54	0.1 "	2.54 mm			Push-Pull	UL94 V-0	0.1 in	2.54 mm	Female Socket	Right Angle Through Hole	All	Flash			Solder	250 V	Gold	-40 C	105 ░C	3 A	0.124 in	3.15 mm	0.2 in	5.08 mm
Sullins Connector Solutions PPPC272LJBN	Square	Flash	Phosphor Bronze	Polyester	Gold	Black	Header	2	54	0.1 "	2.54 mm			Push-Pull	UL94 V-0	0.1 in	2.54 mm	Female Socket	Right Angle Through Hole	All	Flash			Solder	250 V	Gold	-40 C	105 ░C	3 A	0.124 in	3.15 mm	0.2 in	5.08 mm
