TST09 Series
Manufacturer: ITT Cannon, LLC
Beta
⌘K

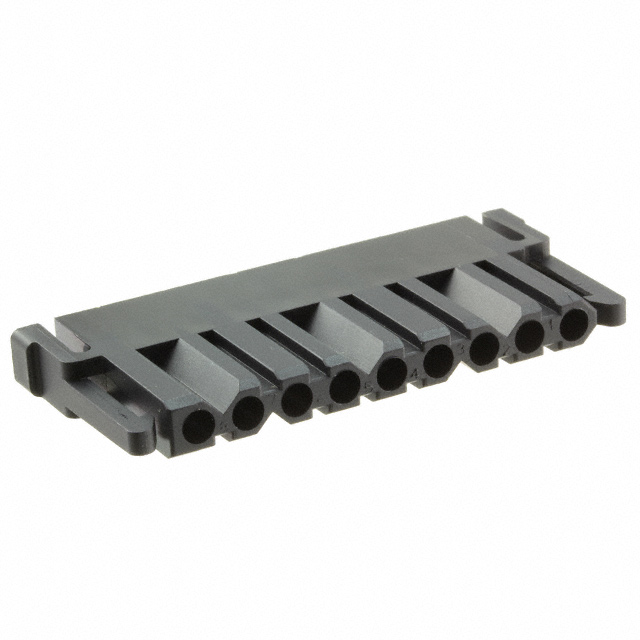

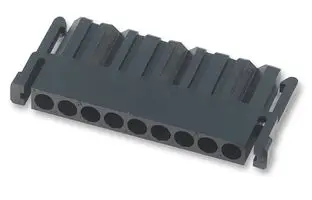

CONN PLUG HSG 9POS 5.08MM
| Part | Note | Connector Type | Number of Positions | Fastening Type | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Termination | Pitch | Pitch | Number of Rows | Insulation Material | Contact Type | Style | Material Flammability Rating | Shrouding | Contact Length - Post [x] | Contact Length - Post | Features | Contact Finish - Mating | Insulation Height | Insulation Height | Current Rating (Amps) | Termination | Voltage Rating | Contact Shape | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Color | Pitch - Mating | Pitch - Mating | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ITT Cannon, LLC | Contacts Not Included | Plug | 9 | Latch Lock | Free Hanging (In-Line) | -55 C | 105 ░C | Black | Crimp Solder | 5.08 mm | 0.2 in | 1 | Nylon Polyamide (PA) | Female Socket | |||||||||||||||||||
 ITT Cannon, LLC | Receptacle | 9 | Latch Holder | Right Angle Through Hole | -40 C | 105 ░C | 1 | Nylon Polyamide (PA) | Male Pin | Board to Cable/Wire | UL94 V-0 | Shrouded - 4 Wall | 0.157 in | 4 mm | Mounting Flange | Gold | 9.8 mm | 0.386 in | 10 A | Solder | 250 V | Circular | 16 Áin | 0.41 Ám | Black | 0.2 " | 5.08 mm | All |
