1337611 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

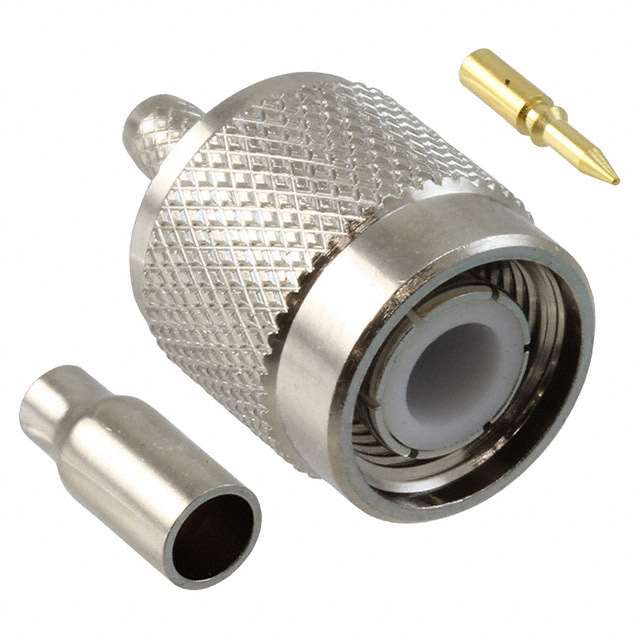

CONN TNC PLUG STR 50 OHM SOLDER
| Part | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Voltage Rating | Includes | Body Material | Body Finish | Insertion Loss | Center Contact Plating | Shield Termination | Impedance | Connector Type | Mounting Type | Number of Ports | Contact Termination | Fastening Type | Cable Group | Center Contact Material | Frequency - Max [Max] | Connector Style | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 500 | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 500 V | 1 Connector 1 Contact 1 Ferrule 1 Insulator 1 Sleeve | Brass | Nickel | 0.2 dB | Gold | Crimp | 50 Ohms | Plug Male Pin | Free Hanging (In-Line) | 1 | Solder | Threaded | 188A 316 RG-174A | Brass | 11 GHz | TNC | Silver |
