PPPC132 Series

Catalog

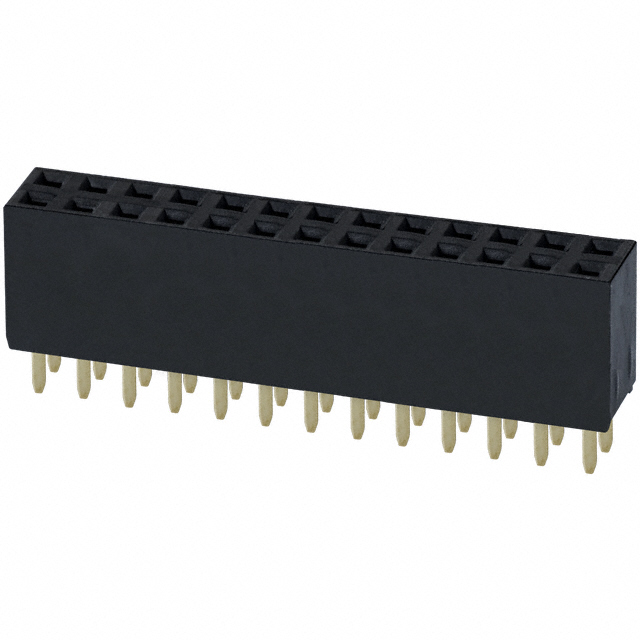

CONN HDR 26POS 0.1 GOLD PCB

Part	Insulation Material	Contact Shape	Contact Material	Contact Finish Thickness - Post	Number of Rows [custom]	Current Rating (Amps)	Voltage Rating	Number of Positions Loaded	Insulation Height	Insulation Height	Contact Finish - Post	Contact Finish - Mating	Insulation Color	Material Flammability Rating	Contact Length - Post [x]	Contact Length - Post [x]	Fastening Type	Termination	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Number of Positions	Connector Type	Mounting Type
Sullins Connector Solutions PPPC132LFBN-RC	Polyester	Square	Phosphor Bronze	Flash	2	3 A	250 V	All	0.335 "	8.51 mm	Gold	Gold	Black	UL94 V-0	0.126 "	3.2 mm	Push-Pull	Solder	Female Socket	-40 C	105 ░C	0.1 in	2.54 mm	0.1 "	2.54 mm	Flash	26	Header	Through Hole
