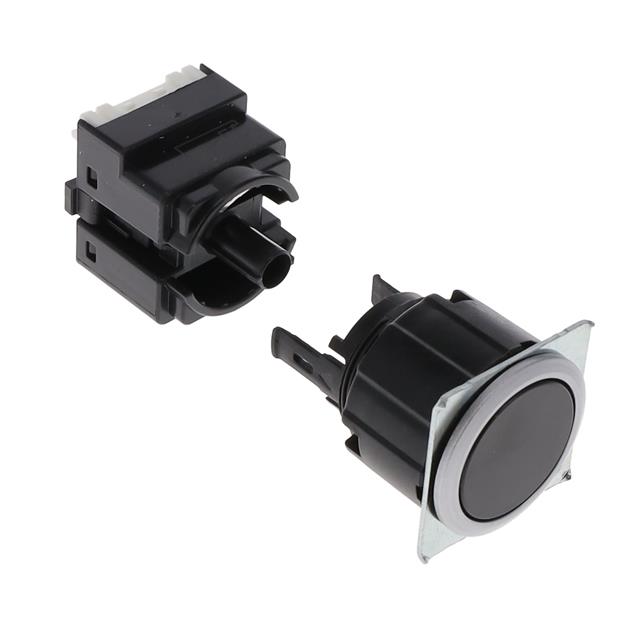

A3U-TMB Series
Manufacturer: Omron Automation and Safety
Beta
⌘K
SWITCH PUSHBUTTON SPDT 0.1A 30V
| Part | Mechanical Life | Electrical Life | Ingress Protection | Circuit | Termination Style | Mounting Type | Actuator Marking | Color - Actuator/Cap | Actuator Type | Type | Voltage Rating - DC | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Switch Function | Panel Cutout Dimensions [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | 1000000 Cycles | 200000 Cycles | IP40 | SPDT | Connector | Panel Mount Front | No Marking | Black | Button Flush Round | Standard | 30 V | 100 mA | -20 ░C | 70 °C | On-Mom | 25.2 mm |
 Omron Automation and Safety | 1000000 Cycles | 200000 Cycles | IP65 | DPDT | Connector | Panel Mount Front | No Marking | Black | Button Flush Round | Standard | 30 V | 100 mA | -20 ░C | 70 °C | On-Mom | 25.2 mm |
 Omron Automation and Safety | 1000000 Cycles | 200000 Cycles | IP40 | DPDT | Connector | Panel Mount Front | No Marking | Black | Button Flush Round | Standard | 30 V | 100 mA | -20 ░C | 70 °C | On-Mom | 25.2 mm |
