TPS7A11 Series

Catalog

500-MA, LOW-VIN (0.75-V), ULTRA-LOW-IQ, LOW-DROPOUT VOLTAGE REGULATOR WITH ENABLE

Part	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Number of Regulators	Current - Output	Mounting Type	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed)	PSRR [Max]	PSRR [Min]	Output Configuration	Voltage Dropout (Max) [Max]	Control Features	Package / Case	Current - Supply (Max) [Max]	Current - Quiescent (Iq)	Protection Features	Voltage - Output (Min/Fixed) [Min]
Texas Instruments TPS7A1106PYKAR	5-DSBGA	-40 C	125 °C	1	500 mA	Surface Mount	3.3 V	0.6 V	64 dB	35 dB	Positive	0.07 V	Enable	5-XFBGA DSBGA	11 µA	2.6 µA	Over Current Over Temperature UVLO
Texas Instruments TPS7A1109PYKAR	5-DSBGA	-40 C	125 °C	1	500 mA	Surface Mount	3.3 V	0.9 V	64 dB	35 dB	Positive	0.07 V	Enable	5-XFBGA DSBGA	11 µA	2.6 µA	Over Current Over Temperature UVLO

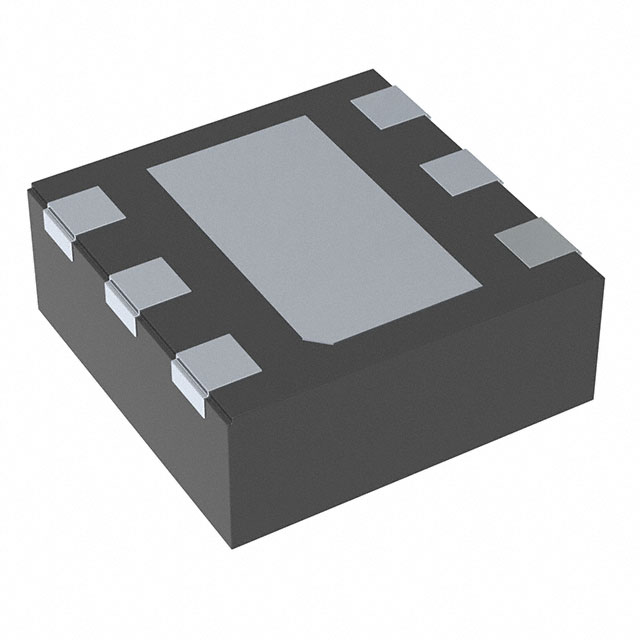

Texas Instruments TPS7A1108PDRVT	6-WSON (2x2)	-40 C	125 °C	1	500 mA	Surface Mount	3.3 V	0.8 V	64 dB	35 dB	Positive	0.14 V	Enable		11 µA	2.6 µA	Over Current Over Temperature Under Voltage Lockout (UVLO)
Texas Instruments TPS7A1106PDRVR	6-WSON (2x2)	-40 C	125 °C	1	500 mA	Surface Mount	3.3 V	0.6 V	64 dB	35 dB	Positive	0.14 V	Enable		11 µA	2.6 µA	Over Current Over Temperature UVLO
Texas Instruments TPS7A11105PDRVT	6-WSON (2x2)	-40 C	125 °C	1	500 mA	Surface Mount	3.3 V	1.05 V	64 dB	35 dB	Positive	0.14 V	Enable		11 µA	2.6 µA	Over Current Over Temperature Under Voltage Lockout (UVLO)
Texas Instruments TPS7A1106PDRVT	6-WSON (2x2)	-40 C	125 °C	1	500 mA	Surface Mount	3.3 V	0.6 V	64 dB	35 dB	Positive	0.14 V	Enable		11 µA	2.6 µA	Over Current Over Temperature Under Voltage Lockout (UVLO)
Texas Instruments TPS7A11075PYKAR	5-DSBGA	-40 C	125 °C	1	500 mA	Surface Mount	3.3 V	0.75 V	64 dB	35 dB	Positive	0.07 V	Enable	5-XFBGA DSBGA	11 µA	2.6 µA	Over Current Over Temperature UVLO
Texas Instruments TPS7A11105PDRVR	6-WSON (2x2)	-40 C	125 °C	1	500 mA	Surface Mount	3.3 V	1.05 V	64 dB	35 dB	Positive	0.14 V	Enable		11 µA	2.6 µA	Over Current Over Temperature UVLO
Texas Instruments TPS7A1108PDRVR	6-WSON (2x2)	-40 C	125 °C	1	500 mA	Surface Mount	3.3 V	0.8 V	64 dB	35 dB	Positive	0.14 V	Enable		11 µA	2.6 µA	Over Current Over Temperature UVLO
Texas Instruments TPS7A1105PYKAR	5-DSBGA	-40 C	125 °C	1	500 mA	Surface Mount	3.3 V		64 dB	35 dB	Positive	0.07 V	Enable	5-XFBGA DSBGA	11 µA	2.6 µA	Over Current Over Temperature UVLO	0.5 V
