DUR14 Series
Manufacturer: SunLED
Beta
⌘K

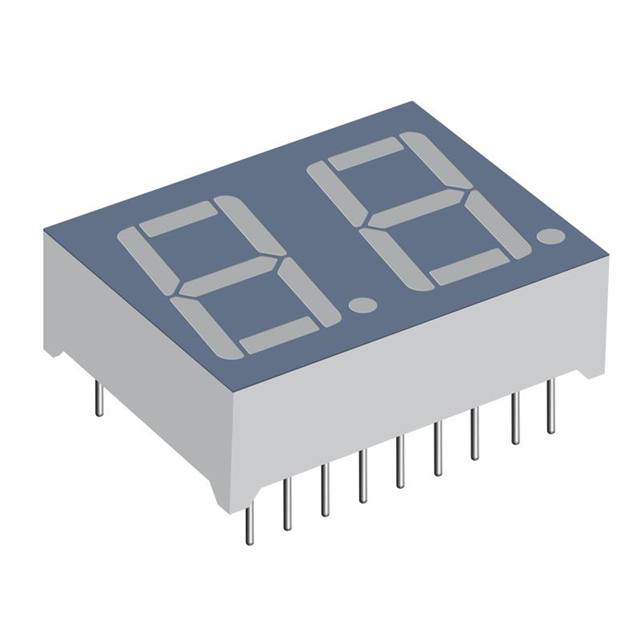

0.56" HE RED DUAL DISPLAY
| Part | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Number of Characters | Wavelength - Peak | Power Dissipation (Max) [Max] | Digit/Alpha Size | Digit/Alpha Size | Color | Voltage - Forward (Vf) (Typ) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SunLED | 19.05 mm | 0.984 " | 8 mm | 25 mm | 0.315 in | 0.75 in | 2 | 627 nm | 75 mw | 0.56 in | 14.22 mm | Red | 1.9 V |
