V7-6 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K

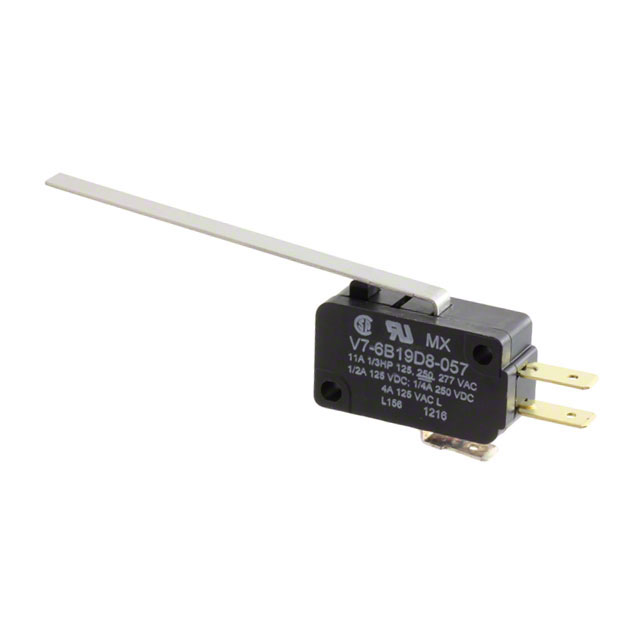

SWITCH SNAP ACTION SPDT 11A 125V
| Part | Differential Travel | Differential Travel | Circuit | Pretravel | Pretravel | Release Force | Mounting Type | Electrical Life | Switch Function | Current Rating (Amps) | Mechanical Life | Actuator Type | Operating Position | Operating Position | Termination Style | Overtravel [custom] | Overtravel [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Force | Voltage Rating - AC | Voltage Rating - DC | Operating Force [Max] | Operating Force [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 0.1 in | 2.54 mm | SPDT | 0.3 in | 7.6 mm | 3 gf | Chassis Mount | 100000 Cycles | On-Mom | 11 A 500 mA | 10000000 Cycles | Lever Straight | 0.571 in | 14.5 mm | Quick Connect | 3.7 mm | 0.146 " | 85 °C | -40 C | 55 gf | 125 V | 125 VDC | ||
 Honeywell Sensing and Productivity Solutions | SPST-NO | Chassis Mount | Off-Mom | 15 A 500 mA | 10000000 Cycles | Lever Straight | Quick Connect | 85 °C | -40 C | 120 gf | 125 V | 125 VDC | ||||||||||||
 Honeywell Sensing and Productivity Solutions | 0.016 in | 0.4 mm | SPDT | 0.047 in | 1.2 mm | 113 gf | Chassis Mount | 100000 Cycles | On-Mom | 11 A 500 mA | 10000000 Cycles | Round (Pin Plunger) | 0.579 in | 14.7 mm | Quick Connect | 1 mm | 0.04 " | 85 °C | -40 C | 125 V | 125 VDC | 397 gf | 170 gf | |
Honeywell Sensing and Productivity Solutions |
