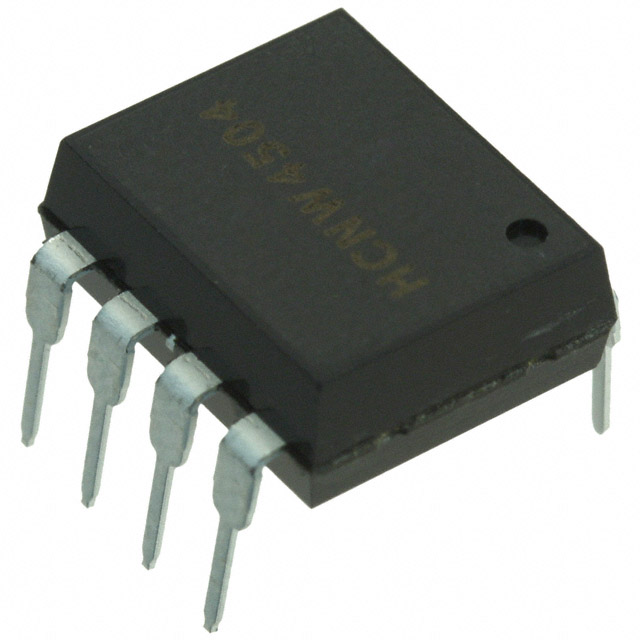

HCNW4504 Series
Manufacturer: Broadcom Limited
Catalog
OPTOISOLATOR 5KV TRANSISTOR 8DIP
| Part | Turn On / Turn Off Time (Typ) | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output (Max) [Max] | Current - DC Forward (If) (Max) [Max] | Package / Case | Package / Case | Package / Case | Current Transfer Ratio (Max) | Current Transfer Ratio (Min) [Min] | Output Type | Supplier Device Package | Input Type | Current - Output / Channel [custom] | Number of Channels | Voltage - Forward (Vf) (Typ) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | 200 ns 300 ns | Through Hole | 85 °C | -55 °C | 20 V | 25 mA | 10.16 mm | 8-DIP | 10.16 mm | 63 % | 19 % | 1.81 mOhm | 8-DIP | DC | 8 mA | 1 | 1.59 V |
