2403C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

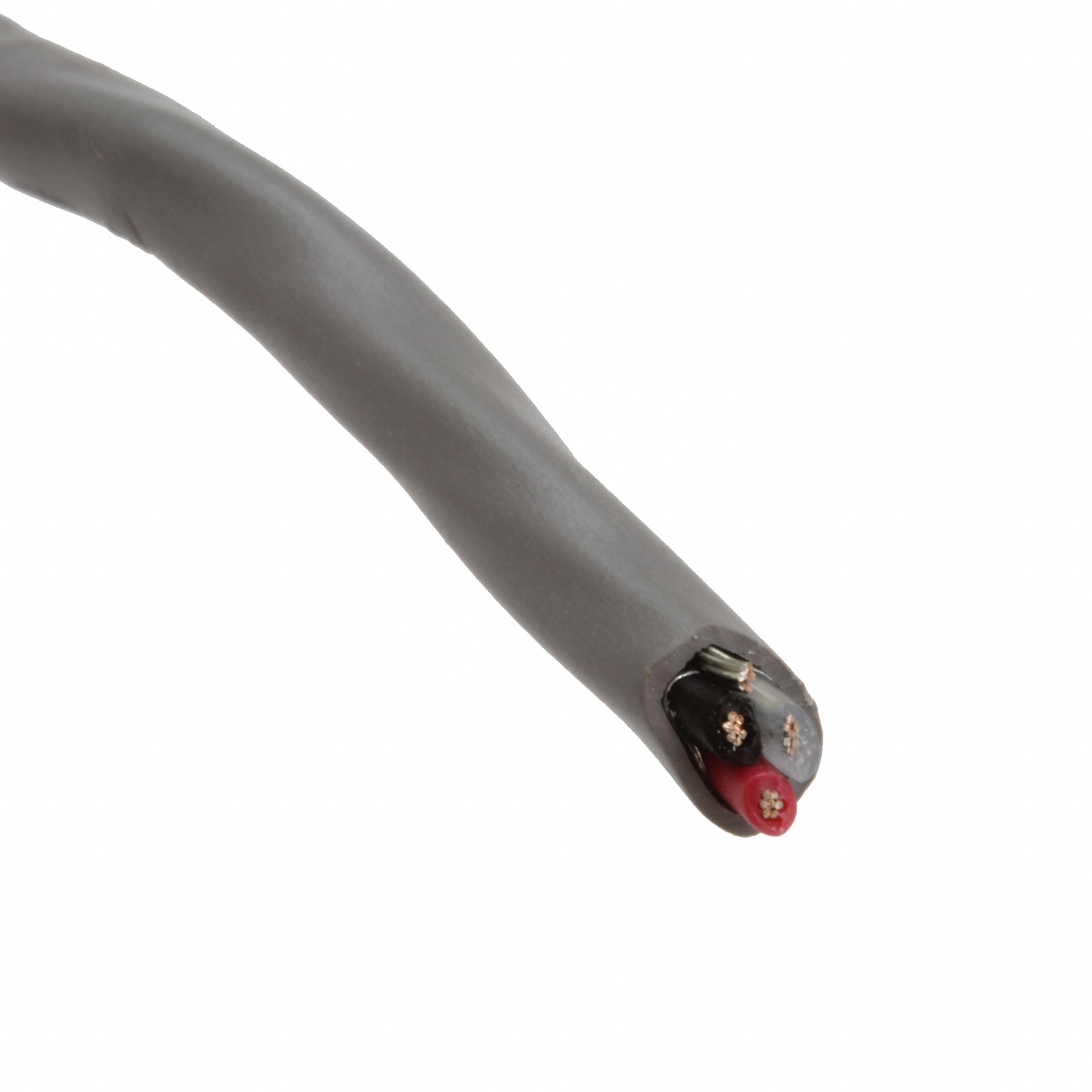

CABLE 3COND 22AWG SHLD 1000'
| Part | Shield Material | Shield Coverage | Voltage | Jacket (Insulation) Diameter | Jacket (Insulation) Diameter | Jacket Color | Conductor Material | Shield Type | Usage | Length | Length | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Number of Conductors | Cable Type | Features | Wire Gauge | Conductor Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | 300 VDC | 4.52 mm | 0.178 in | Slate | Copper Tinned | Foil | Communication Control | 304.8 m | 1000 ft | 0.02 " | 0.508 mm | 30 AWG | 7 | Poly-Vinyl Chloride (PVC) | 3 | Multi-Conductor | Drain Wire | 22 AWG | Polyethylene (PE) |
