342182 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

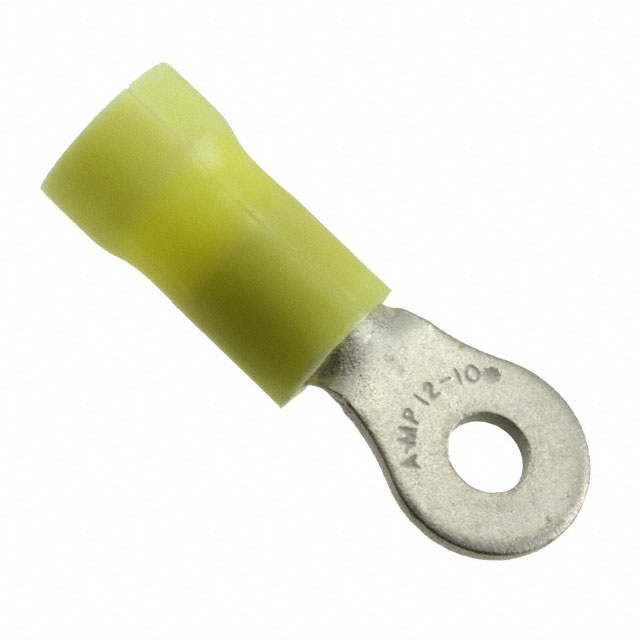

CONN RING CIRC 10-12AWG CRIMP
| Part | Termination | Material - Insulation | Contact Finish | Length - Overall | Length - Overall | Contact Material | Color | Width - Outer Edges [y] | Width - Outer Edges [y] | Wire Gauge [Max] | Wire Gauge [Min] | Insulation | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Max] | Thickness | Thickness | Mounting Type | Terminal Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Crimp | Poly-Vinyl Chloride (PVC) | Tin | 1.103 in | 28.02 mm | Copper | Yellow | 9.5 mm | 0.374 in | 12 AWG | 10 AWG | Insulated | 0.15 " | 6.4 mm | 3.81 mm | 0.252 " | 0.99 mm | 0.039 in | Free Hanging (In-Line) | Circular |
