ERB-SE Series

Catalog

FUSE BOARD MOUNT 4A 32VDC 0603

Part	Response Time	Fuse Type	Current Rating (Amps)	Approval Agency	Mounting Type	DC Cold Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Breaking Capacity @ Rated Voltage	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Voltage Rating - DC	Package / Case

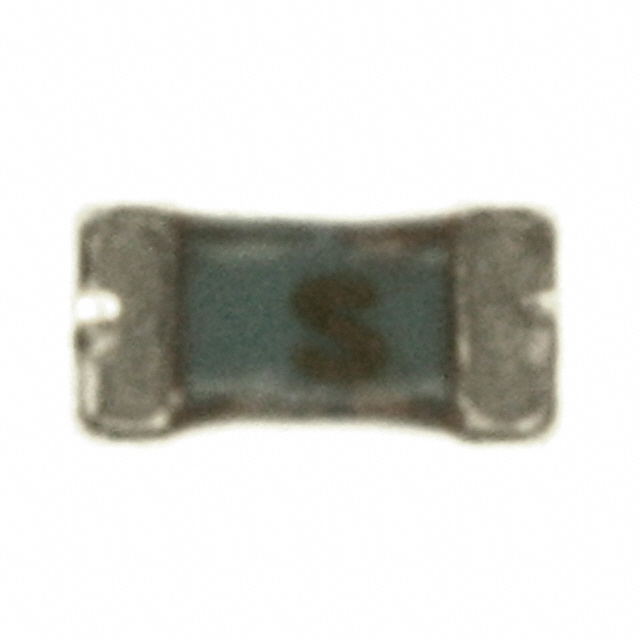

Panasonic Industrial Automation Sales ERB-SE4R00U	Fast Blow	Board Mount	4 A	cUL UL	Surface Mount	28 mOhms	100 °C	-40 °C	35 A	0.031 in	0.7 mm	0.028 in	1.6 mm	0.063 in	0.8 mm	32 V	0603 (1608 Metric)
Panasonic Industrial Automation Sales ERB-SE5R00U	Fast Blow	Board Mount	5 A	cUL UL	Surface Mount	0.02 Ohms	100 °C	-40 °C	35 A	0.031 in	0.7 mm	0.028 in	1.6 mm	0.063 in	0.8 mm	32 V	0603 (1608 Metric)

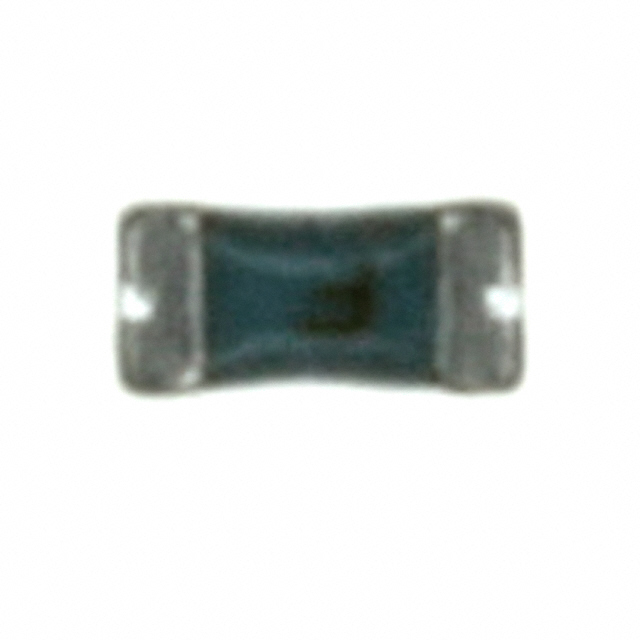

Panasonic Industrial Automation Sales ERB-SE0R50U	Fast Blow	Board Mount	0.5 A	cUL UL	Surface Mount	0.37 Ohms	100 °C	-40 °C	50 A	0.031 in	0.7 mm	0.028 in	1.6 mm	0.063 in	0.8 mm	32 V	0603 (1608 Metric)
Panasonic Industrial Automation Sales ERB-SE2R50U	Fast Blow	Board Mount	2.5 A	cUL UL	Surface Mount	0.048 Ohms	100 °C	-40 °C	50 A	0.031 in	0.7 mm	0.028 in	1.6 mm	0.063 in	0.8 mm	32 V	0603 (1608 Metric)
Panasonic Industrial Automation Sales ERB-SE3R00U	Fast Blow	Board Mount	3 A	cUL UL	Surface Mount	0.036 Ohms	100 °C	-40 °C	50 A	0.031 in	0.7 mm	0.028 in	1.6 mm	0.063 in	0.8 mm	32 V	0603 (1608 Metric)
