ADC10D Series

Catalog

BOARD REF FOR ADC10D1000RB

Part	Input Range	Number of A/D Converters	Number of Bits [custom]	Utilized IC / Part	Supplied Contents	Power (Typ) @ Conditions	Data Interface	Number of Inputs	Mounting Type	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Architecture	Reference Type	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Configuration	Features	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Input Type	Package / Case	Ratio - S/H:ADC	Sampling Rate (Per Second)	Sampling Rate (Per Second)
Texas Instruments ADC10D1000RB/NOPB	980 mVpp	2	10	ADC10D1000	Board(s)	2.9 W	Serial
Texas Instruments ADC10D020CIVS		1	10				Parallel	2	Surface Mount	3.6 V	2.7 V	Two-Step	External Internal	85 °C	-40 °C	48-TQFP (7x7)	S/H-ADC	Simultaneous Sampling	2.7 V	3.6 V	Differential Single Ended	48-TQFP	1:1
Texas Instruments ADC10D040CIVS		1	10				Parallel	2	Surface Mount	3.6 V	3 V	Two-Step	External Internal	85 °C	-40 °C	48-TQFP (7x7)	S/H-ADC	Simultaneous Sampling	3 V	3.6 V	Single Ended	48-TQFP	1:1	40M
Texas Instruments ADC10DL065CIVS		2	10				Parallel	2	Surface Mount	3.6 V	3 V	Pipelined	External Internal	85 °C	-40 °C	64-TQFP (10x10)	S/H-ADC	Simultaneous Sampling	3 V	3.6 V	Differential	64-TQFP	1:1		65 M

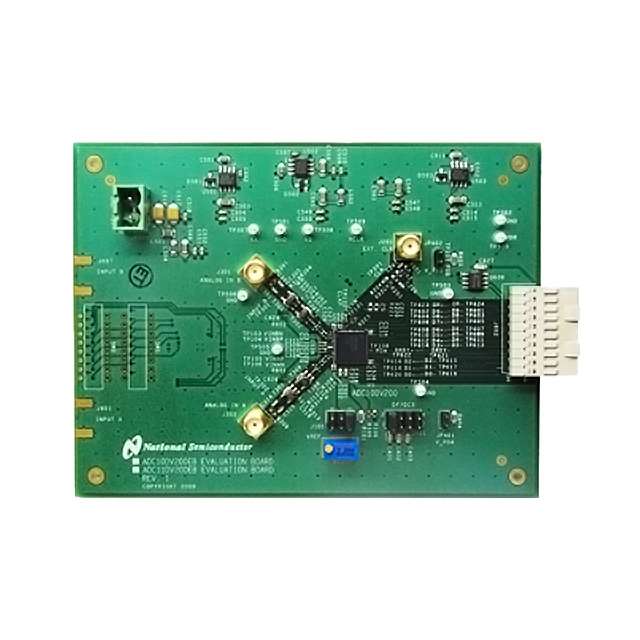

Texas Instruments ADC10DV200EB/NOPB		2	10	ADC10DV200	Board(s)		Parallel																		200 M
