6THB Series

Catalog

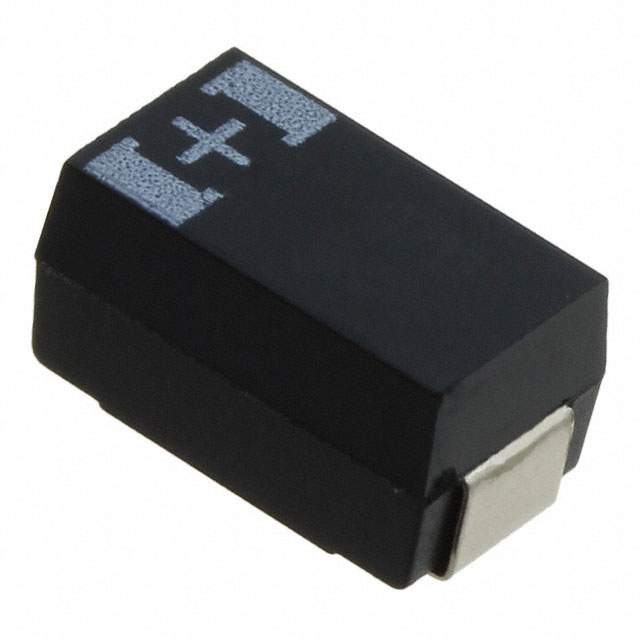

POSCAP SMD, TH SERIES ROHS COMPLIANT: YES

Part	Mounting Type	Capacitance	Tolerance	Voltage - Rated	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Manufacturer Size Code	ESR (Equivalent Series Resistance)	Type	Lifetime @ Temp.	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]

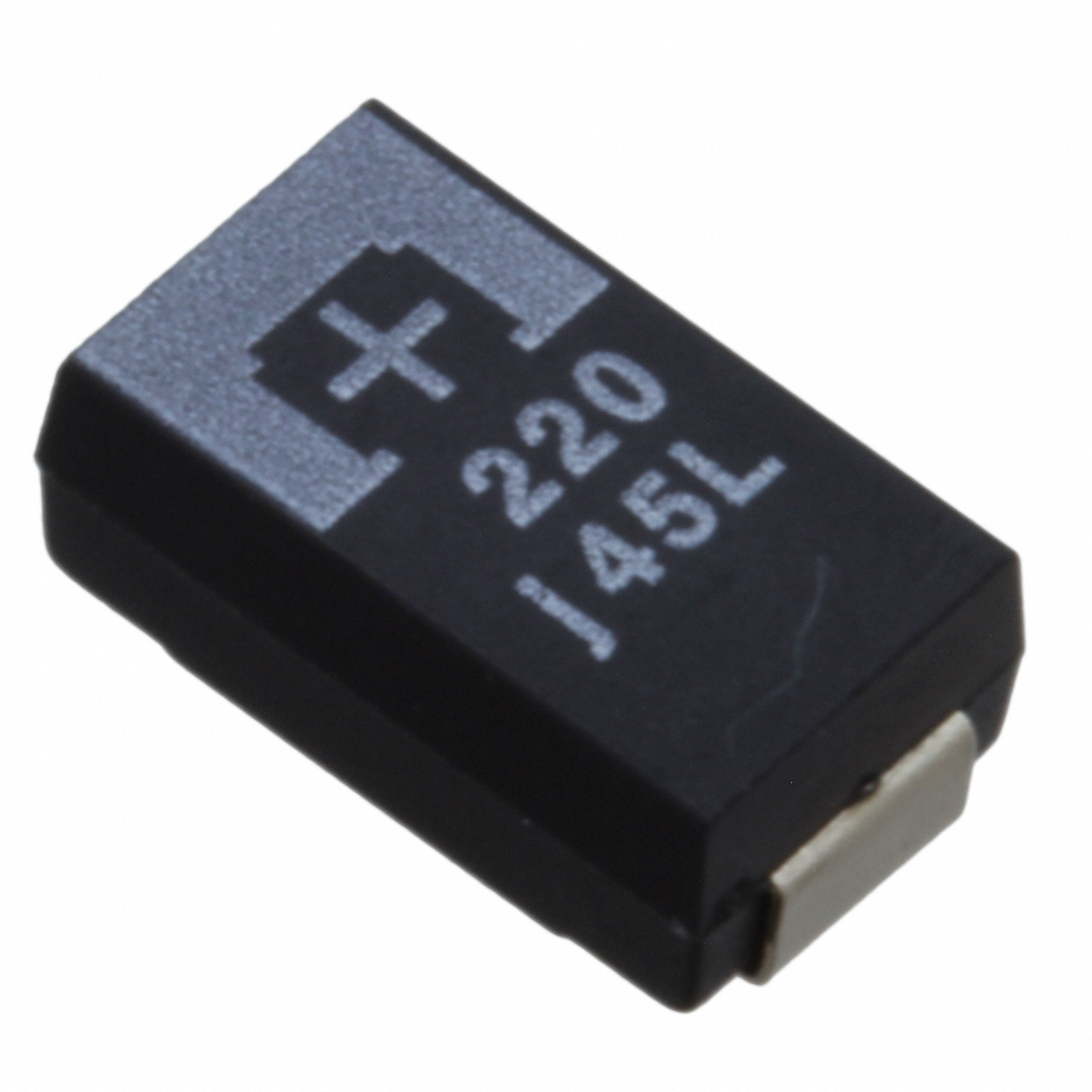

Panasonic Electronic Components 6THB220ML	Surface Mount	220 µF	20 %	6.3 VDC	2.9 mm	0.114 "	General Purpose	0.169 "	7.3 mm	0.287 "	4.3 mm	D3L	40 mOhm	Molded	1000 Hrs	2917 (7343 Metric)	-55 C	125 °C
Panasonic Electronic Components 6THB330M	Surface Mount	330 µF	20 %	6.3 VDC			General Purpose	0.169 "	7.3 mm	0.287 "	4.3 mm	D4	40 mOhm	Molded	1000 Hrs	2917 (7343 Metric)	-55 C	125 °C	0.154 in	3.9 mm
