2100LL Series

Catalog

FIXED IND 18UH 10.1A 7 MOHM TH

Part	Material - Core	Size / Dimension [diameter]	Size / Dimension [x]	Mounting Type	DC Resistance (DCR) [Max]	Inductance	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Inductance Frequency - Test	Package / Case	Shielding	Type	DC Resistance (DCR)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [diameter]

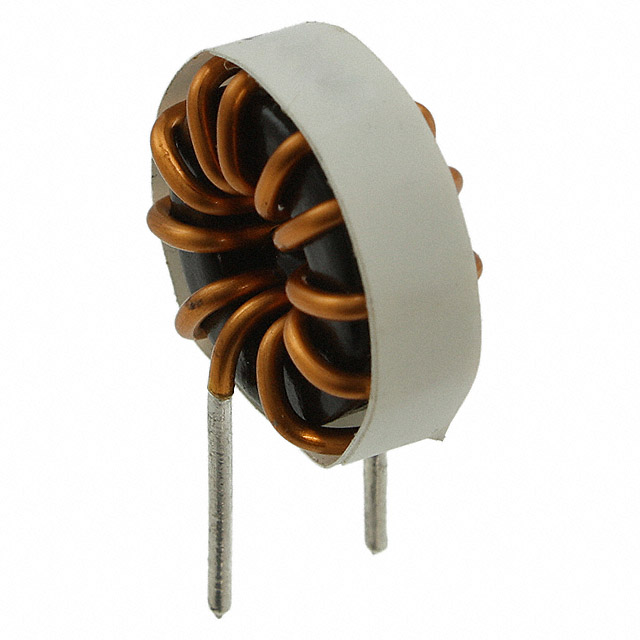

Bourns Inc. 2100LL-180-V-RC	Sendust	0.86 in	11.43 mm	Through Hole	7 mOhm	18 µH	15 %	-55 C	125 °C	10.1 A	1 kHz	Radial Vertical (Open)	Shielded	Toroidal

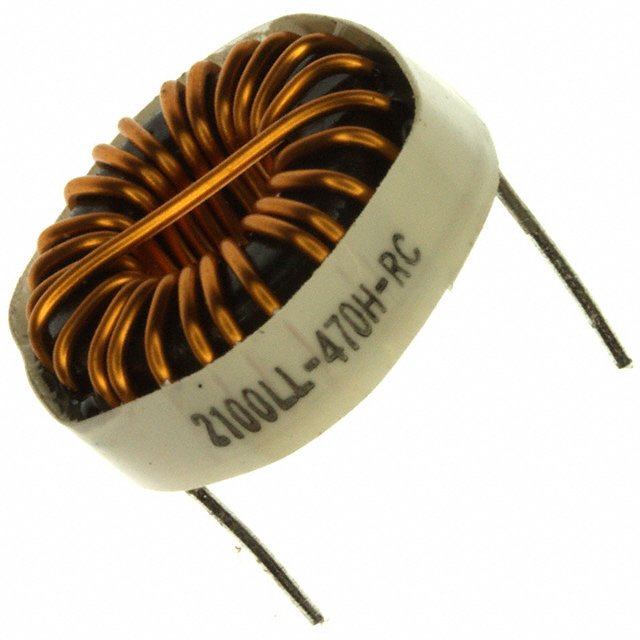

Bourns Inc. 2100LL-470-H-RC	Sendust	21.84 mm		Through Hole		47 µH	15 %	-55 C	125 °C	5.2 A	1 kHz	Radial Horizontal (Open)	Shielded	Toroidal	24 mOhm	0.45 "	11.43 mm	0.86 in
Bourns Inc. 2100LL-181-H-RC	Sendust	21.84 mm		Through Hole	48 mOhm	180 µH	15 %	-55 C	125 °C	3.7 A	1 kHz	Radial Horizontal (Open)	Shielded	Toroidal		0.45 "	11.43 mm	0.86 in

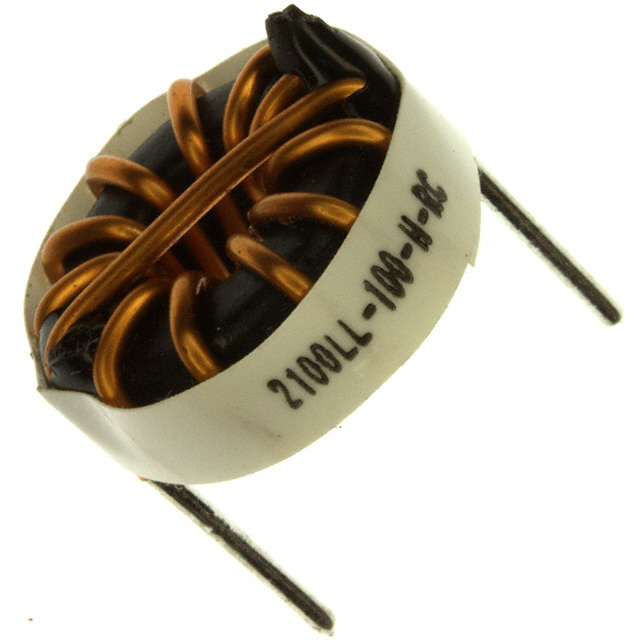

Bourns Inc. 2100LL-100-H-RC	Sendust	21.84 mm		Through Hole	5 mOhm	10 µH	15 %	-55 C	125 °C	11.4 A	1 kHz	Radial Horizontal (Open)	Shielded	Toroidal		0.45 "	11.43 mm	0.86 in
Bourns Inc. 2100LL-470-V-RC	Sendust	0.86 in	11.43 mm	Through Hole		47 µH	15 %	-55 C	125 °C	5.2 A	1 kHz	Radial Vertical (Open)	Shielded	Toroidal	24 mOhm
Bourns Inc. 2100LL-680-V-RC	Sendust	0.86 in	11.43 mm	Through Hole	30 mOhm	68 µH	15 %	-55 C	125 °C	4.7 A	1 kHz	Radial Vertical (Open)	Shielded	Toroidal
Bourns Inc. 2100LL-391-V-RC	Sendust	0.86 in	11.43 mm	Through Hole		390 µH	15 %	-55 C	125 °C	2.4 A	1 kHz	Radial Vertical (Open)	Shielded	Toroidal	112 mOhm

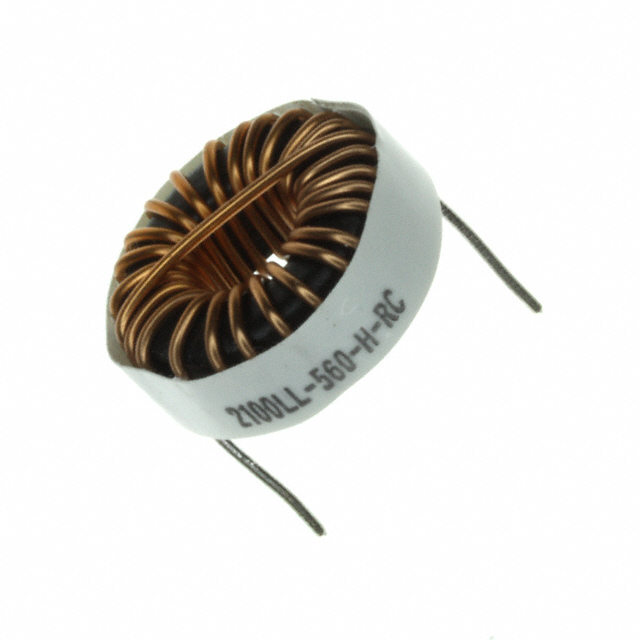

Bourns Inc. 2100LL-560-H-RC	Sendust	21.84 mm		Through Hole	26 mOhm	56 µH	15 %	-55 C	125 °C	5 A	1 kHz	Radial Horizontal (Open)	Shielded	Toroidal		0.45 "	11.43 mm	0.86 in
Bourns Inc. 2100LL-270-V-RC	Sendust	0.86 in	11.43 mm	Through Hole	12 mOhm	27 µH	15 %	-55 C	125 °C	7.3 A	1 kHz	Radial Vertical (Open)	Shielded	Toroidal
Bourns Inc. 2100LL-121-V-RC	Sendust	0.86 in	11.43 mm	Through Hole			15 %	-55 C	125 °C	4.1 A	1 kHz	Radial Vertical (Open)	Shielded	Toroidal	39 mOhm
