796348 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

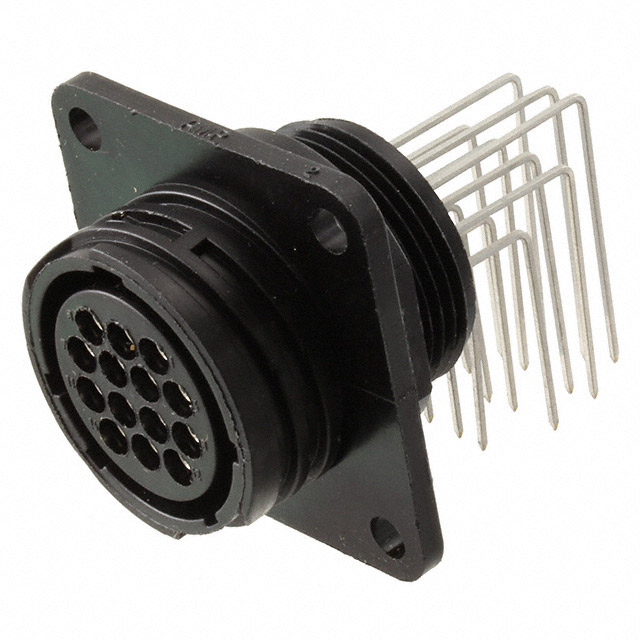

CONN RCPT FMALE 14P TIN-LEAD SLD
| Part | Mounting Feature | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Material Flammability Rating | Orientation | Number of Positions | Primary Material | Contact Finish - Mating | Voltage Rating | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Connector Type | Contact Material | Fastening Type | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Flange | Panel Mount Right Angle Through Hole | -55 C | 105 ░C | 100 çin | 2.54 çm | UL94 V-0 | Keyed | 14 | Plastic | Tin-Lead | 250 VAC | 14 | 17 | Receptacle Female Sockets | Brass | Threaded | Solder |
 TE Connectivity AMP Connectors | Flange | Panel Mount Right Angle Through Hole | -55 C | 105 ░C | 30 Áin | 0.76 Ám | UL94 V-0 | Keyed | 14 | Plastic | Gold | 250 VAC | 14 | 17 | Receptacle Female Sockets | Brass | Threaded | Solder |
