1776244 Series

Catalog

TERM BLK 3POS SIDE ENTRY 5MM PCB

Part	Pitch [x]	Pitch [x]	Voltage	Mating Orientation	Features	Current	Wire Termination	Clamp Material - Plating	Torque - Screw	Torque - Screw	Contact Material - Plating [custom]	Positions Per Level	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Color	Number of Levels	Screw Material - Plating	Screw Thread	Wire Gauge [Min]	Wire Gauge [Max]

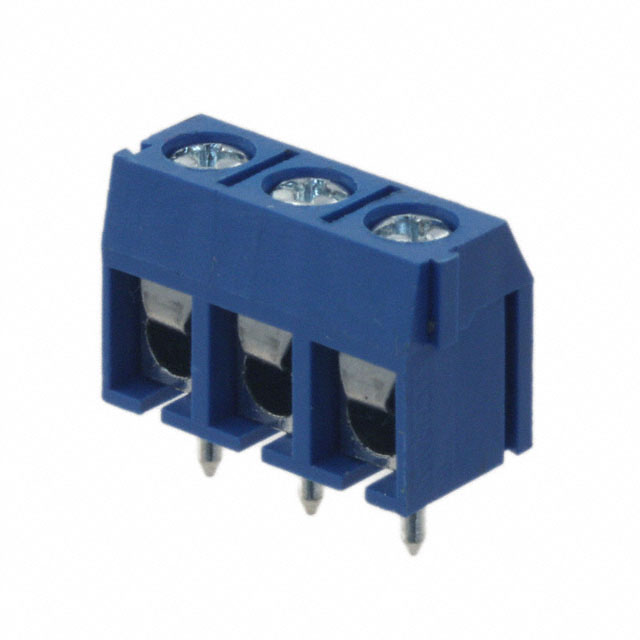

TE Connectivity Raychem Cable Protection 1776244-3	5 mm	0.197 in	300 V	Horizontal with Board	Interlocking (Side)	10 A	Screw - Leaf Spring Wire Guard	Stainless Steel	0.51 Nm	4.5 Lb-In	Brass - Tin Plated	3	Through Hole	105 ░C	-55 °C	Blue	1	Steel Galvanized - Chromate Plated	M2.6	14 AWG	22 AWG

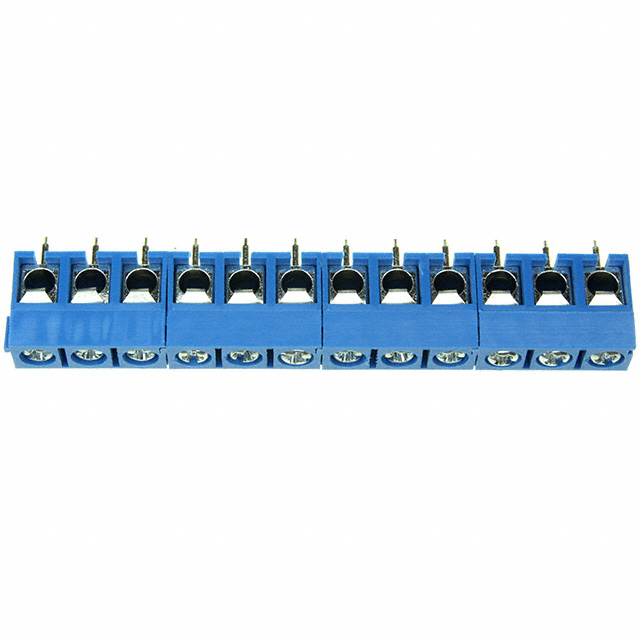

TE Connectivity Raychem Cable Protection 1-1776244-2	5 mm	0.197 in	300 V	Horizontal with Board	Interlocking (Side)	10 A	Screw - Leaf Spring Wire Guard	Stainless Steel	0.51 Nm	4.5 Lb-In	Brass - Tin Plated	12	Through Hole	105 ░C	-55 °C	Blue	1	Steel Galvanized - Chromate Plated	M2.6	14 AWG	22 AWG

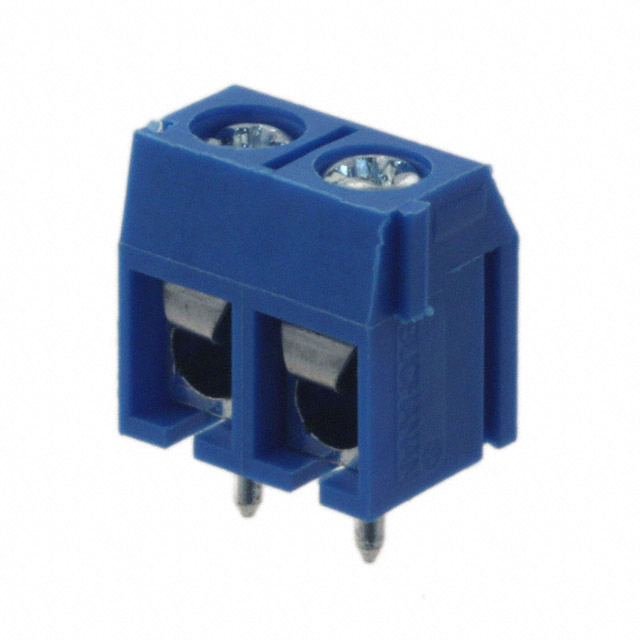

TE Connectivity Raychem Cable Protection 1776244-2	5 mm	0.197 in	300 V	Horizontal with Board	Interlocking (Side)	10 A	Screw - Leaf Spring Wire Guard	Stainless Steel	0.51 Nm	4.5 Lb-In	Brass - Tin Plated	2	Through Hole	105 ░C	-55 °C	Blue	1	Steel Galvanized - Chromate Plated	M2.6	14 AWG	22 AWG
TE Connectivity Raychem Cable Protection 1-1776244-1	5 mm	0.197 in	300 V	Horizontal with Board	Interlocking (Side)	10 A	Screw - Leaf Spring Wire Guard	Stainless Steel	0.51 Nm	4.5 Lb-In	Brass - Tin Plated	11	Through Hole	105 ░C	-55 °C	Blue	1	Steel Galvanized - Chromate Plated	M2.6	14 AWG	22 AWG
