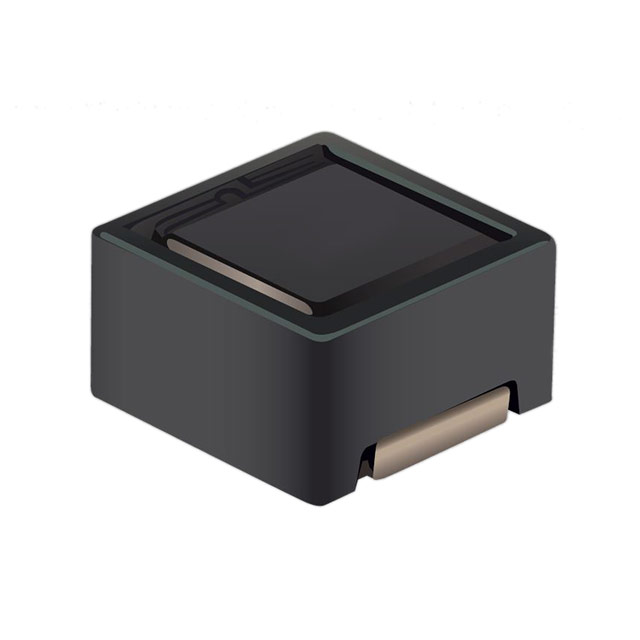

SRR4828A Series

Catalog

IND,4.8X4.8X2.8MM,1.8UH30%,4.6A,SHDSMD /TAPE & REEL - 7" REEL

Part	Ratings	Package / Case	Inductance	Material - Core	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Current - Saturation (Isat)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Shielding	Tolerance	DC Resistance (DCR) [Max]	Inductance Frequency - Test	Frequency - Self Resonant	Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Mounting Type	DC Resistance (DCR)
Bourns Inc. SRR4828A-1R8Y	AEC-Q200	Nonstandard	1.8 µH	Ferrite	4.8 mm	4.8 mm	0.189 in	0.189 "	2.5 A	0.118 "	3 mm	Shielded	30 %	30 mOhm	100 kHz	105 MHz	Drum Core Wirewound	-40 C	150 °C	4.6 A	Surface Mount
Bourns Inc. SRR4828A-470M	AEC-Q200	Nonstandard	47 µH	Ferrite	4.8 mm	4.8 mm	0.189 in	0.189 "	470 mA	0.118 "	3 mm	Shielded	20 %	270 mOhm	100 kHz	13 MHz	Drum Core Wirewound	-40 C	150 °C	1.2 A	Surface Mount
Bourns Inc. SRR4828A-1R2Y	AEC-Q200	Nonstandard	1.2 µH	Ferrite	4.8 mm	4.8 mm	0.189 in	0.189 "	3 A	0.118 "	3 mm	Shielded	30 %		100 kHz	155 MHz	Drum Core Wirewound	-40 C	150 °C	5 A	Surface Mount	24 mOhm
Bourns Inc. SRR4828A-151M	AEC-Q200	Nonstandard	150 µH	Ferrite	4.8 mm	4.8 mm	0.189 in	0.189 "	280 mA	0.118 "	3 mm	Shielded	20 %	860 mOhm	100 kHz	7 MHz	Drum Core Wirewound	-40 C	150 °C	600 mA	Surface Mount
Bourns Inc. SRR4828A-820M	AEC-Q200	Nonstandard	82 µH	Ferrite	4.8 mm	4.8 mm	0.189 in	0.189 "	350 mA	0.118 "	3 mm	Shielded	20 %	480 mOhm	100 kHz	10 MHz	Drum Core Wirewound	-40 C	150 °C	0.85 A	Surface Mount
Bourns Inc. SRR4828A-330M	AEC-Q200	Nonstandard	33 µH	Ferrite	4.8 mm	4.8 mm	0.189 in	0.189 "	0.6 A	0.118 "	3 mm	Shielded	20 %		100 kHz	15 MHz	Drum Core Wirewound	-40 C	150 °C	1.4 A	Surface Mount	260 mOhm
Bourns Inc. SRR4828A-101M	AEC-Q200	Nonstandard	100 µH	Ferrite	4.8 mm	4.8 mm	0.189 in	0.189 "	330 mA	0.118 "	3 mm	Shielded	20 %		100 kHz	8.5 MHz	Drum Core Wirewound	-40 C	150 °C	700 mA	Surface Mount
Bourns Inc. SRR4828A-6R8Y	AEC-Q200	Nonstandard	6.8 µH	Ferrite	4.8 mm	4.8 mm	0.189 in	0.189 "	1.3 A	0.118 "	3 mm	Shielded	30 %		100 kHz	40 MHz	Drum Core Wirewound	-40 C	150 °C	2.6 A	Surface Mount	74 mOhm
Bourns Inc. SRR4828A-8R2Y	AEC-Q200	Nonstandard	8.2 µH	Ferrite	4.8 mm	4.8 mm	0.189 in	0.189 "	1.25 A	0.118 "	3 mm	Shielded	30 %	87 mOhm	100 kHz	35 MHz	Drum Core Wirewound	-40 C	150 °C	2.4 A	Surface Mount
Bourns Inc. SRR4828A-2R7Y	AEC-Q200	Nonstandard	2.7 µH	Ferrite	4.8 mm	4.8 mm	0.189 in	0.189 "	2.2 A	0.118 "	3 mm	Shielded	30 %	34 mOhm	100 kHz	80 MHz	Drum Core Wirewound	-40 C	150 °C	4 A	Surface Mount
