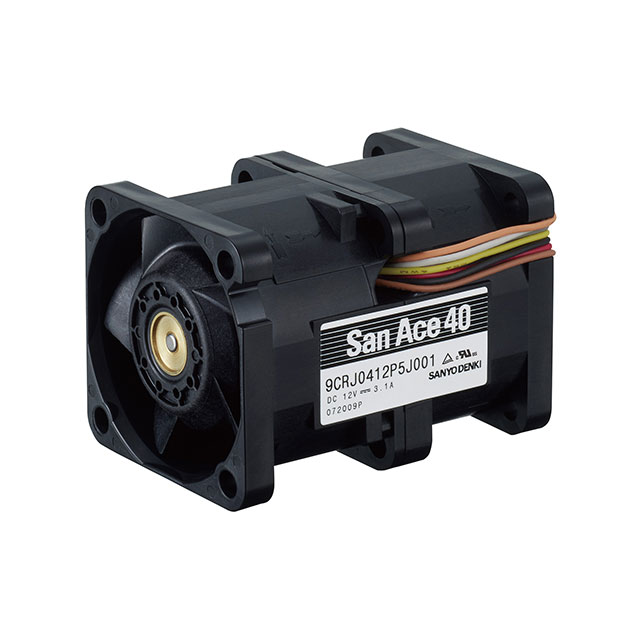

9CRJ0412 Series
Manufacturer: Sanyo Denki America Inc.
Beta
⌘K
AXIAL FAN, 37.4CFM, 72DBA, 37.2W, 12VDC ROHS COMPLIANT: YES
| Part | Lifetime @ Temp. | Voltage Range [Min] | Voltage Range [Max] | Material - Blade | Current Rating (Amps) | Material - Frame | RPM [custom] | RPM [custom] | Bearing Type | Noise | Termination | Fan Type | Size / Dimension [x] | Size / Dimension [z] | Power (Watts) | Features | Weight | Weight | Voltage - Rated | Width [y] | Air Flow | Air Flow | Static Pressure | Static Pressure | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sanyo Denki America Inc. | 30000 Hrs | 10.8 VDC | 12.6 VDC | Plastic | 3.1 A | Plastic | 3200 RPM 32000 RPM | 36200 RPM | Ball | 72 dB(A) | 4 | Tubeaxial (Dual) | 40 mm | 40 mm | 37.2 W | Counter-Rotating Locked Rotor Protection PWM Control Speed Sensor (Tach) | 110.22 g | 0.243 lb | 12 VDC | 56 mm | 37.4 CFM | 1.05 m³/min | 9.64 in H2O | 2401.2 Pa | -20 ░C | 70 °C |
