MOP-TFT800480 Series

Catalog

DISPLAY LCD TFT 5.0" RGB IPS TRA

Part	Dot Pitch [x]	Dot Pitch [y]	Backlight	Dot Pixels [x]	Dot Pixels [y]	Diagonal Screen Size	Diagonal Screen Size	Display Type	Interface	Touchscreen	Controller Type	Graphics Color	Viewing Area [y]	Viewing Area [z]	Viewing Area [x]	Display Mode	Viewing Area [custom]	Viewing Area [custom]	Viewing Area [custom]	Viewing Area [custom]
Matrix Orbital MOP-TFT800480-50A-IPS-BLH-TPN	0.14 mm	0.14 mm	LED	800 pixels	480	127 mm	5 in	IPS (In-Plane Switching) TFT - Color	Parallel 24-Bit (RGB)	Capacitive Non-Touch Resistive	HX8264+HX8664	Blue Green Red	110.7 mm	67.4 mm

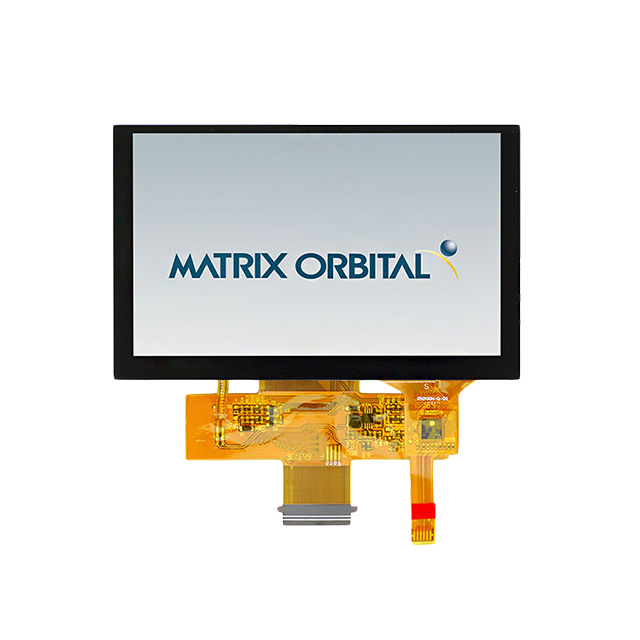

Matrix Orbital MOP-TFT800480-50A-BLM-TPC	0.14 mm	0.14 mm	LED	800 pixels	480 pixels	127 mm	5 in	TFT - Color	Parallel 24-Bit (RGB)	Capacitive		Blue Green Red	66.1 mm		109.3 mm	Transmissive

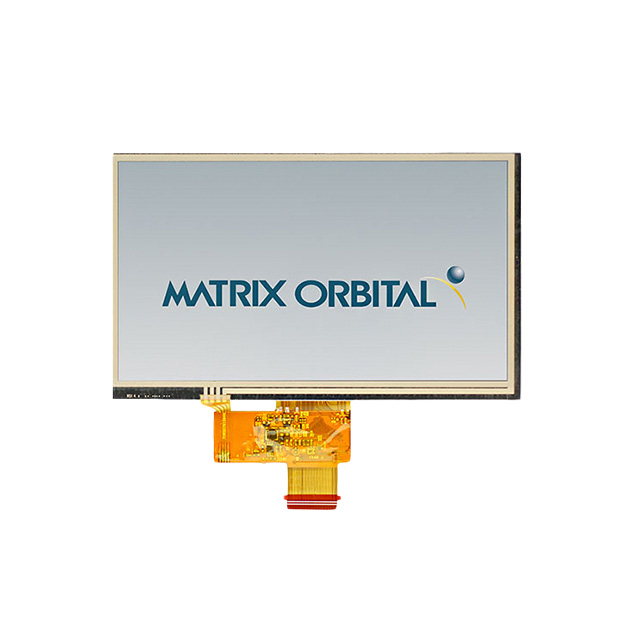

Matrix Orbital MOP-TFT800480-70A-BLM-TPR	0.19 mm	0.18 mm	LED	800 pixels	480 pixels	177.8 mm	7 "	TFT - Color	Parallel 24-Bit (RGB)	Resistive		Blue Green Red	155.08 mm	86.92 mm		Transmissive

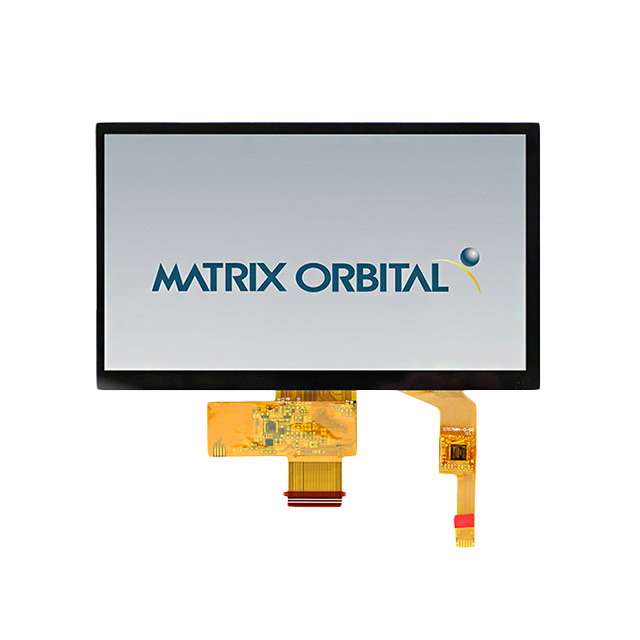

Matrix Orbital MOP-TFT800480-70A-BLM-TPC	0.19 mm	0.18 mm	LED	800 pixels	480 pixels	177.8 mm	7 "	TFT - Color	Parallel 24-Bit (RGB)	Capacitive		Blue Green Red	155.08 mm	86.92 mm		Transmissive

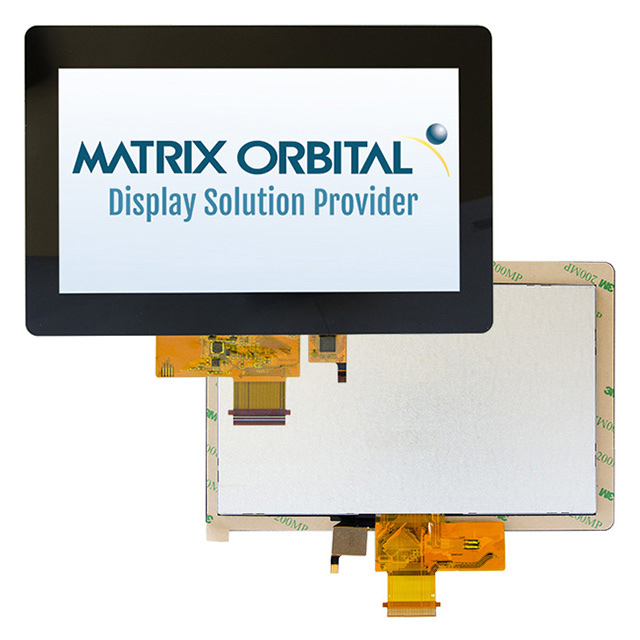

Matrix Orbital MOP-TFT800480-70G-BLM-TPC	0.19 mm	0.18 mm	LED	800 pixels	480 pixels	177.8 mm	7 "	TFT - Color	Parallel 24-Bit (RGB)	Capacitive		Blue Green Red				Transmissive	154.84 mm	86.63 mm

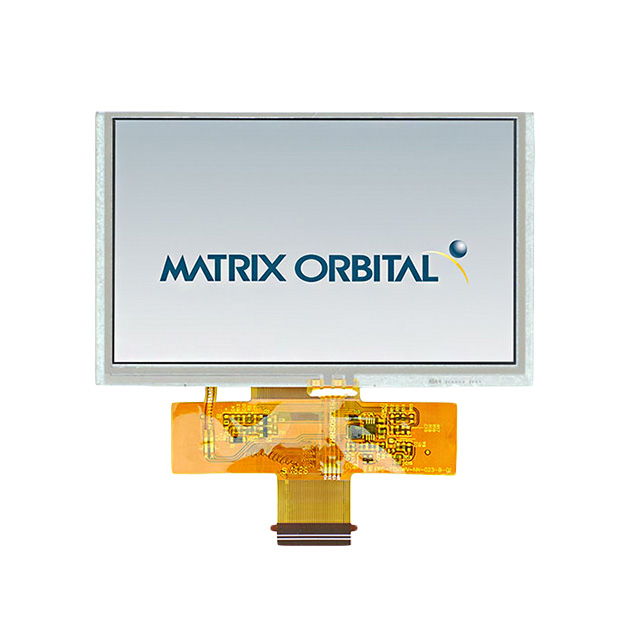

Matrix Orbital MOP-TFT800480-50A-BLM-TPR	0.14 mm	0.14 mm	LED	800 pixels	480 pixels	127 mm	5 in	TFT - Color	Parallel 24-Bit (RGB)	Resistive		Blue Green Red	67.6 mm		110.8 mm	Transmissive

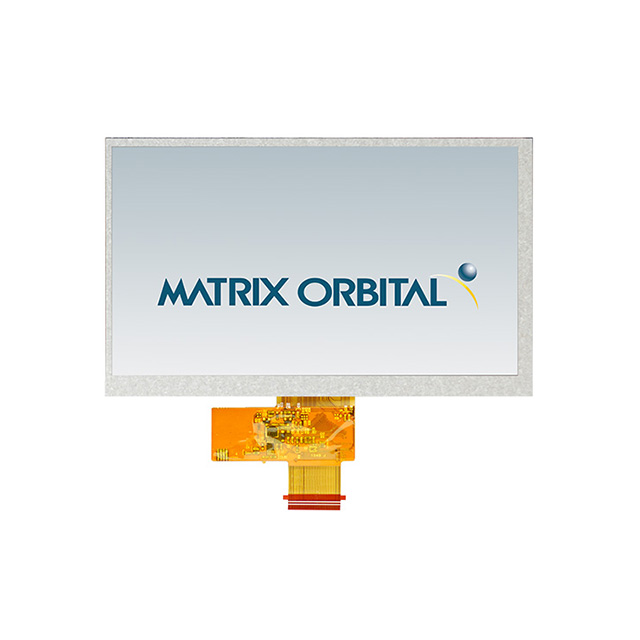

Matrix Orbital MOP-TFT800480-70A-BLM-TPN	0.19 mm	0.18 mm	LED	800 pixels	480 pixels	177.8 mm	7 "	TFT - Color	Parallel 24-Bit (RGB)			Blue Green Red	85.63 mm		153.84 mm	Transmissive
Matrix Orbital MOP-TFT800480-50G-BLM-TPC	0.14 mm	0.14 mm	LED	800 pixels	480 pixels	127 mm	5 in	TFT - Color	Parallel 24-Bit (RGB)	Capacitive		Blue Green Red				Transmissive			66.4 mm	109.7 mm
