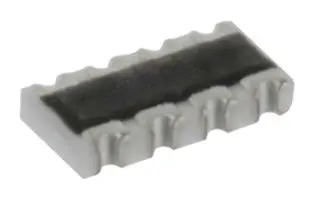

EXB-U3 Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
RES ARRAY
| Part | Number of Pins | Tolerance | Operating Temperature [Min] | Operating Temperature [Max] | Temperature Coefficient | Circuit Type | Power Per Element | Supplier Device Package | Qualification | Resistance (Ohms) | Mounting Type | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Grade | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Number of Resistors | Package / Case | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Panasonic Industrial Automation Sales | 8 | 5 % | -55 °C | 125 °C | 200 ppm/°C | Isolated | 63 mW | 1206 | AEC-Q200 | 27000 Ohms | Surface Mount | 0.6 mm | 0.024 in | Automotive | 0.063 in | 1.6 mm | 0.126 " | 3.2 mm | 4 | 1206 (3216 Metric) Convex Long Side Terminals | |
Panasonic Industrial Automation Sales | 8 | 5 % | -55 °C | 125 °C | Isolated | 63 mW | 1206 | AEC-Q200 | 1 Ohms | Surface Mount | 0.6 mm | 0.024 in | Automotive | 0.063 in | 1.6 mm | 0.126 " | 3.2 mm | 4 | 1206 (3216 Metric) Convex Long Side Terminals | ||
Panasonic Industrial Automation Sales | 8 | 5 % | -55 °C | 125 °C | Isolated | 63 mW | 1206 | AEC-Q200 | 3.6 Ohms | Surface Mount | 0.6 mm | 0.024 in | Automotive | 0.063 in | 1.6 mm | 0.126 " | 3.2 mm | 4 | 1206 (3216 Metric) Convex Long Side Terminals | ||
 Panasonic Industrial Automation Sales | 8 | 5 % | -55 °C | 125 °C | 200 ppm/°C | Isolated | 63 mW | 1206 | AEC-Q200 | 680 Ohms | Surface Mount | 0.6 mm | 0.024 in | Automotive | 0.063 in | 1.6 mm | 0.126 " | 3.2 mm | 4 | 1206 (3216 Metric) Convex Long Side Terminals | |
Panasonic Industrial Automation Sales | 8 | 5 % | -55 °C | 125 °C | 200 ppm/°C | Isolated | 63 mW | 1206 | AEC-Q200 | Surface Mount | 0.6 mm | 0.024 in | Automotive | 0.063 in | 1.6 mm | 0.126 " | 3.2 mm | 4 | 1206 (3216 Metric) Convex Long Side Terminals | ||
 Panasonic Industrial Automation Sales | 8 | 5 % | -55 °C | 125 °C | Isolated | 63 mW | 1206 | AEC-Q200 | 3 Ohms | Surface Mount | 0.6 mm | 0.024 in | Automotive | 0.063 in | 1.6 mm | 0.126 " | 3.2 mm | 4 | 1206 (3216 Metric) Convex Long Side Terminals | ||
Panasonic Industrial Automation Sales | 8 | 5 % | -55 °C | 125 °C | 200 ppm/°C | Isolated | 63 mW | 1206 | AEC-Q200 | 1.1 kOhms | Surface Mount | 0.6 mm | 0.024 in | Automotive | 0.063 in | 1.6 mm | 0.126 " | 3.2 mm | 4 | 1206 (3216 Metric) Convex Long Side Terminals | |
Panasonic Industrial Automation Sales | 8 | 5 % | -55 °C | 125 °C | 200 ppm/°C | Isolated | 63 mW | 1206 | AEC-Q200 | 200 Ohms | Surface Mount | 0.6 mm | 0.024 in | Automotive | 0.063 in | 1.6 mm | 0.126 " | 3.2 mm | 4 | 1206 (3216 Metric) Convex Long Side Terminals | |
Panasonic Industrial Automation Sales | 8 | 5 % | -55 °C | 125 °C | 200 ppm/°C | Isolated | 63 mW | 1206 | AEC-Q200 | 56 kOhms | Surface Mount | 0.6 mm | 0.024 in | Automotive | 0.063 in | 1.6 mm | 0.126 " | 3.2 mm | 4 | 1206 (3216 Metric) Convex Long Side Terminals | |
Panasonic Industrial Automation Sales | 8 | 5 % | -55 °C | 125 °C | 200 ppm/°C | Isolated | 63 mW | 1206 | AEC-Q200 | Surface Mount | 0.6 mm | 0.024 in | Automotive | 0.063 in | 1.6 mm | 0.126 " | 3.2 mm | 4 | 1206 (3216 Metric) Convex Long Side Terminals | 120k |
