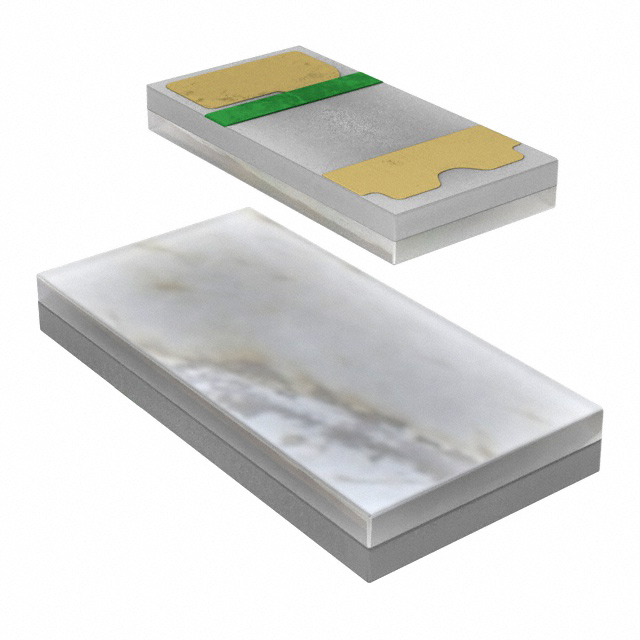

SML-LXFP0603 Series

Manufacturer: Lumex Opto/Components Inc.

Catalog

LED YELLOW CLEAR SMD

Part	Size / Dimension [x]	Size / Dimension [y]	Millicandela Rating	Current - Test	Height (Max) [z]	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Mounting Type	Lens Transparency	Configuration	Lens Color	Wavelength - Peak	Lens Style	Lens Size [y]	Lens Size [x]	Package / Case	Package / Case	Viewing Angle	Color
Lumex Opto/Components Inc. SML-LXFP0603SYC-TR	1.6 mm	0.8 mm	33 mcd	5 mA	0.2 mm	SMD	2 V	Surface Mount	Clear	Standard	Colorless	590 nm	Rectangle with Flat Top	0.8 mm	1.6 mm	1608 Metric	0603	130 °	Yellow
Lumex Opto/Components Inc. SML-LXFP0603UPGCTR	1.6 mm	0.8 mm	630 mcd	15 mA	0.2 mm	SMD	3.2 V	Surface Mount	Clear	Standard	Colorless	525 nm	Rectangle with Flat Top	0.8 mm	1.6 mm	1608 Metric	0603	130 °	Green
Lumex Opto/Components Inc. SML-LXFP0603SOC-TR	1.6 mm	0.8 mm	45 mcd	5 mA	0.2 mm	SMD	2 V	Surface Mount	Clear	Standard	Colorless	610 nm	Rectangle with Flat Top	0.8 mm	1.6 mm	1608 Metric	0603	130 °
Lumex Opto/Components Inc. SML-LXFP0603SIC-TR	1.6 mm	0.8 mm	33 mcd	5 mA	0.2 mm	SMD	2 V	Surface Mount	Clear	Standard	Colorless		Rectangle with Flat Top	0.8 mm	1.6 mm	1608 Metric	0603	130 °	Red
Lumex Opto/Components Inc. SML-LXFP0603USBCTR	1.6 mm	0.8 mm	50 mcd	5 mA	0.2 mm	SMD	3 V	Surface Mount	Clear	Standard	Colorless	470 nm	Rectangle with Flat Top	0.8 mm	1.6 mm	1608 Metric	0603	130 °	Blue
Lumex Opto/Components Inc. SML-LXFP0603UWW-TR	1.6 mm	0.8 mm	158 mcd	5 mA	0.2 mm	SMD	2.95 V	Surface Mount	Diffused	Standard	Yellow		Rectangle with Flat Top	0.8 mm	1.6 mm	1608 Metric	0603	130 °	White
Lumex Opto/Components Inc. SML-LXFP0603SUGCTR	1.6 mm	0.8 mm	13 mcd	5 mA	0.2 mm	SMD	2 V	Surface Mount	Clear	Standard	Colorless		Rectangle with Flat Top	0.8 mm	1.6 mm	1608 Metric	0603	130 °	Green
