87587 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER VERT 26POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Insulation Height	Insulation Height	Style	Contact Shape	Overall Contact Length	Overall Contact Length	Shrouding	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Contact Finish - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Number of Positions	Number of Positions Loaded	Contact Material	Contact Length - Mating	Contact Length - Mating	Number of Rows [custom]	Mounting Type	Insulation Material	Contact Type	Insulation Color	Current Rating (Amps)	Termination
TE Connectivity AMP Connectors 87587-9	2.54 µm	100 µin	Detent Lock	0.44 in	11.18 mm	Board to Board Cable	Square	13.55 mm	0.533 in	Shrouded - 4 Wall	Tin-Lead	100 çin	2.54 çm	105 ░C	-65 ░C	Header	Tin-Lead	0.1 in	2.54 mm	0.1 "	2.54 mm	0.125 in	3.18 mm	UL94 V-0	26	All	Phosphor Bronze	8.08 mm	0.318 in	2	Through Hole	Glass Filled Nylon Polyamide (PA)	Male Pin	Black	3 A	Solder
TE Connectivity AMP Connectors 1-87587-8	2.54 µm	100 µin	Detent Lock	0.44 in	11.18 mm	Board to Board Cable	Square	13.55 mm	0.533 in	Shrouded - 4 Wall	Tin-Lead	100 çin	2.54 çm	105 ░C	-65 ░C	Header	Tin-Lead	0.1 in	2.54 mm	0.1 "	2.54 mm	0.125 in	3.18 mm	UL94 V-0	44	All	Phosphor Bronze	8.08 mm	0.318 in	2	Through Hole	Glass Filled Nylon Polyamide (PA)	Male Pin	Black	3 A	Solder
TE Connectivity AMP Connectors 6-87587-6	2.54 µm	100 µin	Detent Lock	0.44 in	11.18 mm	Board to Board Cable	Square	13.55 mm	0.533 in	Shrouded - 4 Wall	Tin	100 çin	2.54 çm	105 ░C	-65 ░C	Header		0.1 in	2.54 mm	0.1 "	2.54 mm	0.125 in	3.18 mm	UL94 V-0	40	All	Phosphor Bronze	8.08 mm	0.318 in	2	Through Hole	Glass Filled Nylon Polyamide (PA)	Male Pin	Black	3 A	Solder
TE Connectivity AMP Connectors 87587-7	2.54 µm	100 µin	Detent Lock	0.44 in	11.18 mm	Board to Board Cable	Square	13.55 mm	0.533 in	Shrouded - 4 Wall	Tin-Lead	100 çin	2.54 çm	105 ░C	-65 ░C	Header	Tin-Lead	0.1 in	2.54 mm	0.1 "	2.54 mm	0.125 in	3.18 mm	UL94 V-0	22	All	Phosphor Bronze	8.08 mm	0.318 in	2	Through Hole	Glass Filled Nylon Polyamide (PA)	Male Pin	Black	3 A	Solder

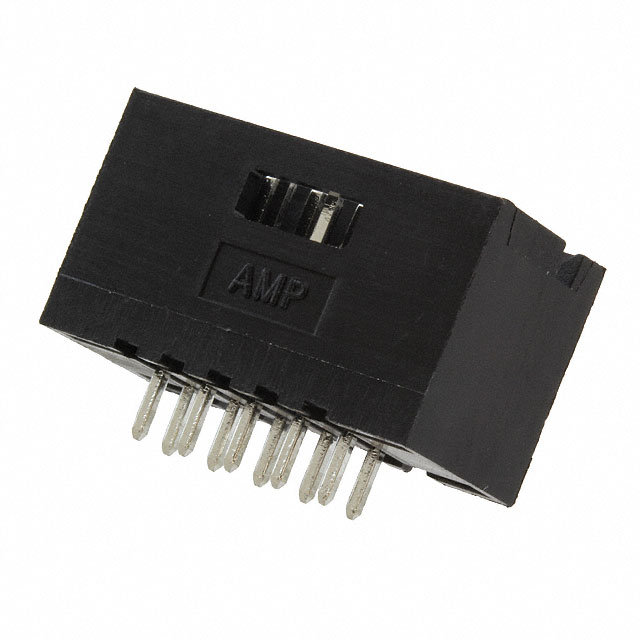

TE Connectivity AMP Connectors 87587-1	2.54 µm	100 µin	Detent Lock	0.44 in	11.18 mm	Board to Board Cable	Square	13.55 mm	0.533 in	Shrouded - 4 Wall	Tin-Lead	100 çin	2.54 çm	105 ░C	-65 ░C	Header	Tin-Lead	0.1 in	2.54 mm	0.1 "	2.54 mm	0.125 in	3.18 mm	UL94 V-0	10	All	Phosphor Bronze	8.08 mm	0.318 in	2	Through Hole	Glass Filled Nylon Polyamide (PA)	Male Pin	Black	3 A	Solder
TE Connectivity AMP Connectors 87587-3	2.54 µm	100 µin	Detent Lock	0.44 in	11.18 mm	Board to Board Cable	Square	13.55 mm	0.533 in	Shrouded - 4 Wall	Tin-Lead	100 çin	2.54 çm	105 ░C	-65 ░C	Header	Tin-Lead	0.1 in	2.54 mm	0.1 "	2.54 mm	0.125 in	3.18 mm	UL94 V-0	14	All	Phosphor Bronze	8.08 mm	0.318 in	2	Through Hole	Glass Filled Nylon Polyamide (PA)	Male Pin	Black	3 A	Solder
TE Connectivity AMP Connectors 87587-6	2.54 µm	100 µin	Detent Lock	0.44 in	11.18 mm	Board to Board Cable	Square	13.55 mm	0.533 in	Shrouded - 4 Wall	Tin-Lead	100 çin	2.54 çm	105 ░C	-65 ░C	Header	Tin-Lead	0.1 in	2.54 mm	0.1 "	2.54 mm	0.125 in	3.18 mm	UL94 V-0	20	All	Phosphor Bronze	8.08 mm	0.318 in	2	Through Hole	Glass Filled Nylon Polyamide (PA)	Male Pin	Black	3 A	Solder
