ISNF Series

Catalog

ISNF PULSE TRANSFORMER SMD 0.1A

Part	Weight [custom]	Weight [custom]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Transformer Type	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary [custom]	ET (Volt-Time)	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Inductance	Weight	Weight	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Weight [diameter]	Weight [diameter]	Height - Seated (Max)

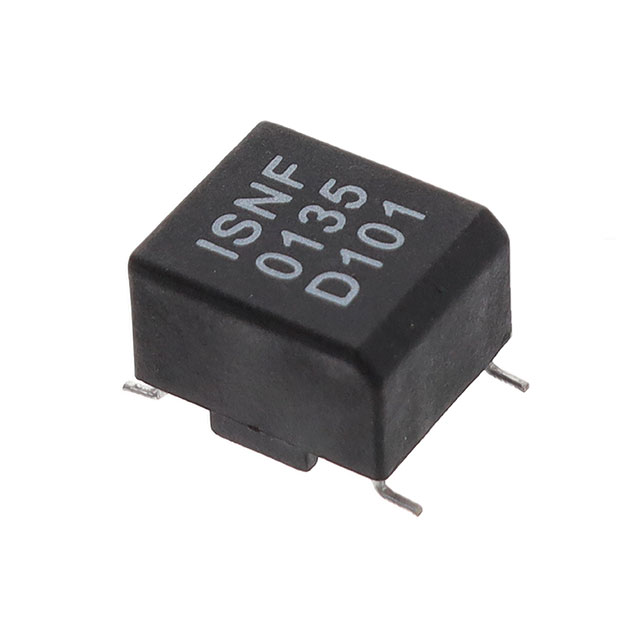

SCHURTER Inc. ISNF-0135-D101	0.29 oz	8.22 g	0.598 in	15.2 mm	13 mm	0.512 "	100 °C	-25 °C	SCR and Triac Trigger (Encapsulated)	1	1	1	150 VµS	Surface Mount	11 mm	0.433 in	1.1 mH
SCHURTER Inc. ISNF-0239-D202			0.894 in	22.7 mm	22.3 mm	0.878 "	100 °C	-25 °C	SCR and Triac Trigger (Encapsulated)	1	1	1	350 Vµs	Surface Mount			1.6 mH	0.352 oz	9.97 g	14 mm	0.551 in
SCHURTER Inc. ISNF-0249-D101			0.717 in	18.2 mm	17.8 mm	0.701 in	100 °C	-25 °C	SCR and Triac Trigger (Encapsulated)	1	1	1	250 VµS	Surface Mount			1.4 mH				0.532 "	0.32 oz	9.12 g	13.5 mm
