NCP3337 Series

LDO Regulator, 500 mA, Low Iq, with Power Good

Catalog

LDO Regulator, 500 mA, Low Iq, with Power Good

Part	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Package / Case	Control Features	Mounting Type	Number of Regulators	Current - Output	Output Configuration	Voltage - Input (Max) [Max]	Current - Quiescent (Iq)	Protection Features	Voltage - Output (Min/Fixed)	Current - Supply (Max) [Max]	Voltage Dropout (Max) [Max]	Supplier Device Package	Voltage - Output (Max) [Max]	Output Type	Supplied Contents	Board Type	Voltage - Output [Min]	Voltage - Output [Max]	Channels per IC	Utilized IC / Part	Regulator Type	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output
ON Semiconductor NCP3337MN250R2G	85 °C	-40 °C	1.81 mOhm	10-VFDFN Exposed Pad	Enable Power Good	Surface Mount	1	500 mA	Positive	12 V	220 µA	Over Current Over Temperature	2.5 V	14 mA	0.34 V	10-DFN (3x3)
ON Semiconductor NCP3337MN180R2G	85 °C	-40 °C	1.81 mOhm	10-VFDFN Exposed Pad	Enable Power Good	Surface Mount	1	500 mA	Positive	12 V	220 µA	Over Current Over Temperature	1.8 V	14 mA	0.62 V	10-DFN (3x3)
ON Semiconductor NCP3337MNADJR2G	85 °C	-40 °C		10-VFDFN Exposed Pad	Enable Power Good	Surface Mount	1	500 mA	Positive	12 V	220 µA	Over Current Over Temperature	1.25 V	14 mA	0.34 V	10-DFN (3x3)	10 V	Adjustable

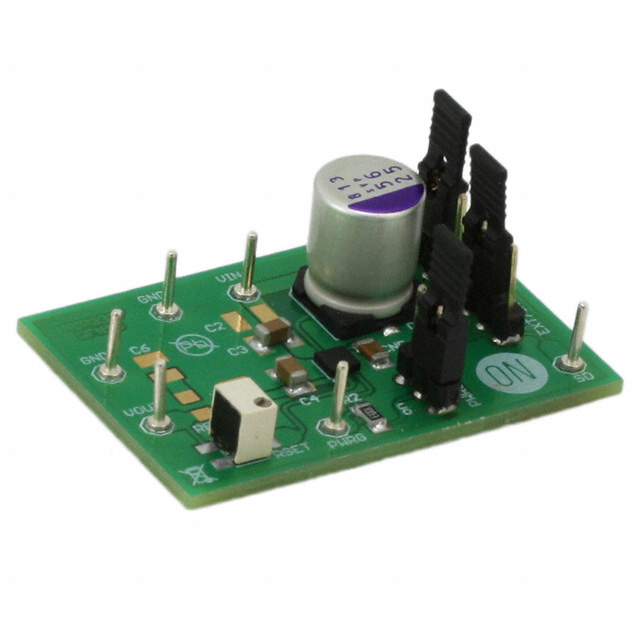

ON Semiconductor NCP3337MNADJGEVB								500 mA											Board(s)	Fully Populated	1.25 V	10 V	1 - Single	NCP3337	Positive Fixed	2.9 V	12 V

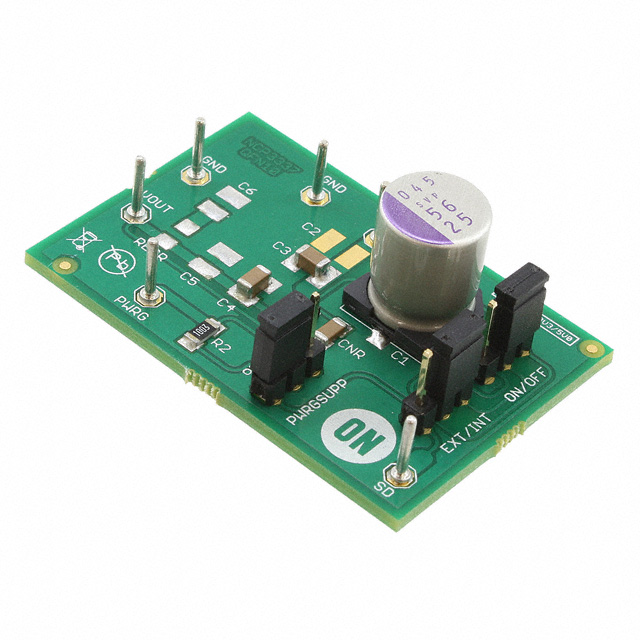

ON Semiconductor NCP3337MN500GEVB								500 mA											Board(s)	Fully Populated			1 - Single	NCP3337	Positive Fixed	2.9 V	12 V	5 V

Catalog

LDO Regulator, 500 mA, Low Iq, with Power Good

Key Features

• High Accuracy Over Line and Load (±0.9% at 25C)

• Ultra Low Dropout Voltage at Full Load (260 mV typ)

• No Minimum Output Current Required for Stability

• Low Noise

• Low Shutdown Current

• Reverse Bias Protected

• 2.9 V to 12 V Supply Range

• Thermal Shutdown Protection

• Current Limitation

• Requires Only 1.0 µF Output Capacitance for Stability

• Power Good Output

Description

The NCP3337 is a high performance, low dropout regulator. With accuracy of ±0.9% over line and load and ultra low quiescent current and noise it encompasses all of the necessary features required by today consumer electronics. This unique device is guaranteed to be stable without a minimum load current requirement and stable with any type of capacitor as small as 1.0 µF. The NCP3337 also comes equipped with sense and noise reduction pins to increase the overall utility of the device. The NCP3337 offers reverse bias protection.
