9250 Series
Manufacturer: Belden Inc.
Beta
⌘K

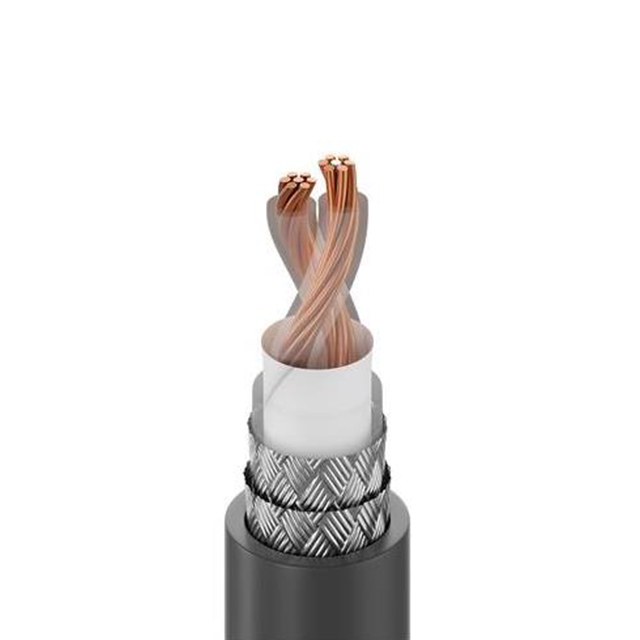

TWINAX RG-22B/ 18AWG 95 OHM
| Part | VoP, Velocity of Propagation | Shield Coverage | Shield Material | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Material | Cable Type | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length [x] | Length [x] | Jacket (Insulation) Material | Jacket Color | Conductor Strand [custom] | Conductor Strand | Wire Gauge [custom] | Wire Gauge | Cable Group | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 66 | 95 % | Copper Tinned | 80 °C | -40 C | Copper Bare | Twinaxial | Double Braid | 10.57 mm | 0.416 " | 152.4 m | 500 ft | Non Contaminating Poly-Vinyl Chloride (PVC) | Black | 7 | 26 AWG | 2 | 18 AWG | RG-22B | 95 Ohms |
Belden Inc. | 66 | 95 % | Copper Tinned | 80 °C | -40 C | Copper Bare | Twinaxial | Double Braid | 10.57 mm | 0.416 " | 304.8 m | 1000 ft | Non Contaminating Poly-Vinyl Chloride (PVC) | Black | 7 | 26 AWG | 2 | 18 AWG | RG-22B | 95 Ohms |
