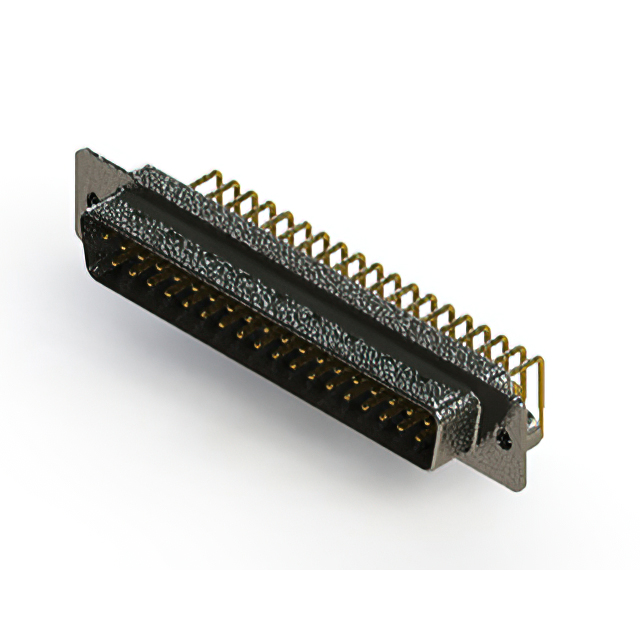

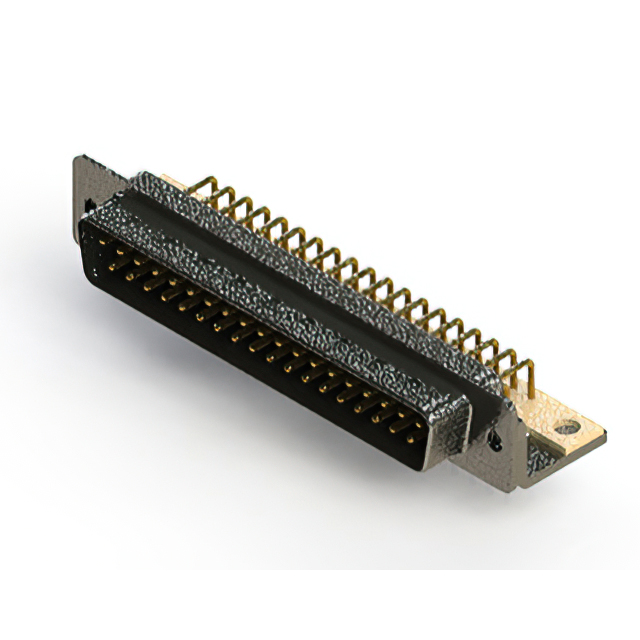

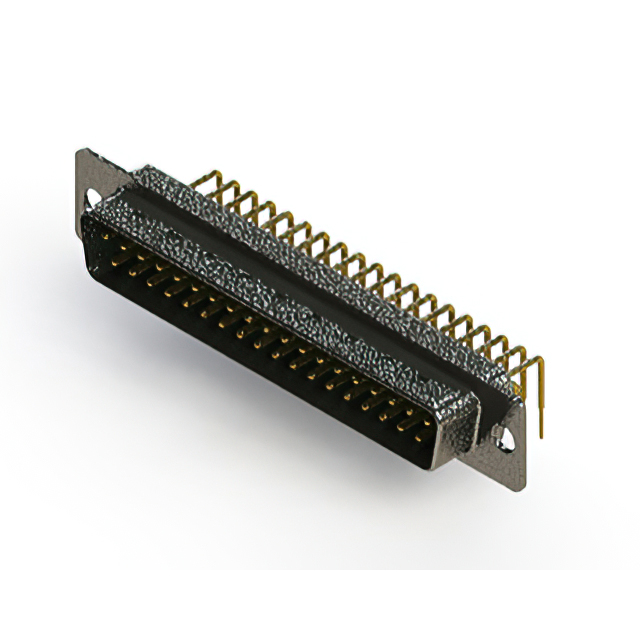

629-M37 Series
Manufacturer: EDAC Inc.
Beta
⌘K
629M SERIES RIGHT ANGLE D-SUB PL
| Part | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Color | Number of Positions | Flange Feature | Shell Size, Connector Layout | Shell Size, Connector Layout | Features | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Connector Style | Material Flammability Rating | Current Rating (Amps) | Termination | Contact Finish | Shell Material, Finish | Connector Type | Backset Spacing | Backset Spacing | Mounting Type | Number of Rows [custom] | Flange Feature | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Polyamide (PA6T) Nylon 6T | Black | 37 | 4-40 | 4 | DC C | Grounding Indents Mounting Brackets Shielded | 30 Áin | 0.76 Ám | Signal | Combo D-Sub | UL94 V-0 | 5 A | Solder | Gold | Nickel Plated Steel | Plug Male Pins | 9.4 mm | 0.37 in | Right Angle Through Hole | 2 | ||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Polyamide (PA6T) Nylon 6T | Black | 37 | Housing/Shell | 4 | DC C | Grounding Indents Mounting Brackets Shielded | 30 Áin | 0.76 Ám | Signal | Combo D-Sub | UL94 V-0 | 5 A | Solder | Gold | Nickel Plated Steel | Plug Male Pins | 9.4 mm | 0.37 in | Right Angle Through Hole | 2 | 4-40 | |
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Polyamide (PA6T) Nylon 6T | Black | 37 | 4-40 | 4 | DC C | Board Lock Grounding Indents Mounting Brackets Shielded | 15 µin | 0.38 µm | Signal | Combo D-Sub | UL94 V-0 | 5 A | Solder | Gold | Nickel Plated Steel | Plug Male Pins | 9.4 mm | 0.37 in | Right Angle Through Hole | 2 | ||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Polyamide (PA6T) Nylon 6T | Black | 37 | Housing/Shell (Unthreaded) | 4 | DC C | Grounding Indents Shielded | 30 Áin | 0.76 Ám | Signal | Combo D-Sub | UL94 V-0 | 5 A | Solder | Gold | Plug Male Pins | 9.4 mm | 0.37 in | Right Angle Through Hole | 2 | |||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Polyamide (PA6T) Nylon 6T | Black | 37 | 4-40 | 4 | DC C | Grounding Indents Mounting Brackets Shielded | 30 Áin | 0.76 Ám | Signal | Combo D-Sub | UL94 V-0 | 5 A | Solder | Gold | Plug Male Pins | 9.4 mm | 0.37 in | Right Angle Through Hole | 2 | |||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Polyamide (PA6T) Nylon 6T | Black | 37 | 4-40 | 4 | DC C | Grounding Indents Mounting Brackets Shielded | 30 Áin | 0.76 Ám | Signal | Combo D-Sub | UL94 V-0 | 5 A | Solder | Gold | Nickel Plated Steel | Plug Male Pins | 9.4 mm | 0.37 in | Right Angle Through Hole | 2 | ||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Polyamide (PA6T) Nylon 6T | Black | 37 | Housing/Shell | 4 | DC C | Grounding Indents Shielded | Signal | Combo D-Sub | UL94 V-0 | 5 A | Solder | Gold | Plug Male Pins | 9.4 mm | 0.37 in | Right Angle Through Hole | 2 | 4-40 | Flash | |||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Polyamide (PA6T) Nylon 6T | Black | 37 | Board Side (4-40) | 4 | DC C | Grounding Indents Mounting Brackets Shielded | 15 µin | 0.38 µm | Signal | Combo D-Sub | UL94 V-0 | 5 A | Solder | Gold | Nickel Plated Steel | Plug Male Pins | 9.4 mm | 0.37 in | Right Angle Through Hole | 2 | ||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Polyamide (PA6T) Nylon 6T | Black | 37 | Housing/Shell (Unthreaded) | 4 | DC C | Grounding Indents Shielded | 15 µin | 0.38 µm | Signal | Combo D-Sub | UL94 V-0 | 5 A | Solder | Gold | Nickel Plated Steel | Plug Male Pins | 9.4 mm | 0.37 in | Right Angle Through Hole | 2 | ||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Polyamide (PA6T) Nylon 6T | Black | 37 | 4-40 | 4 | DC C | Grounding Indents Mounting Brackets Shielded | Signal | Combo D-Sub | UL94 V-0 | 5 A | Solder | Gold | Plug Male Pins | 9.4 mm | 0.37 in | Right Angle Through Hole | 2 | Flash |
