633-M44 Series
Manufacturer: EDAC Inc.
Beta
⌘K

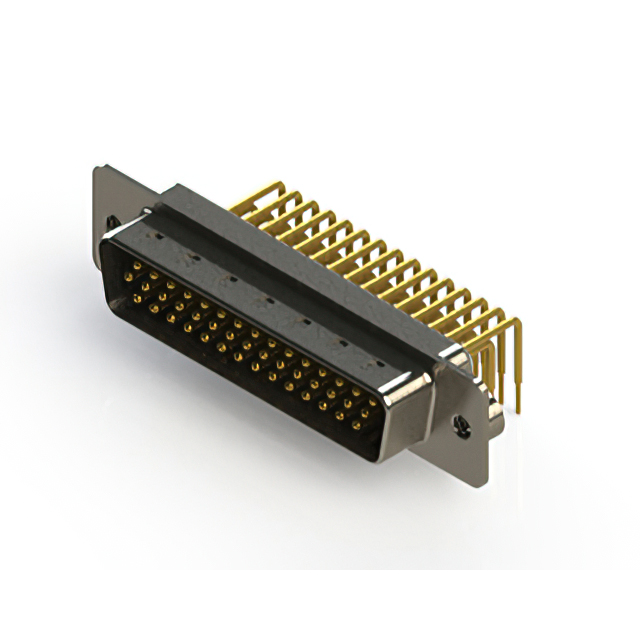

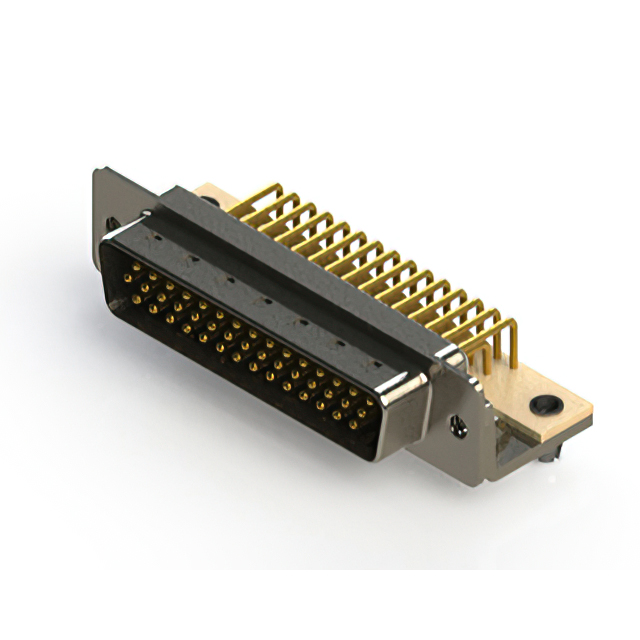

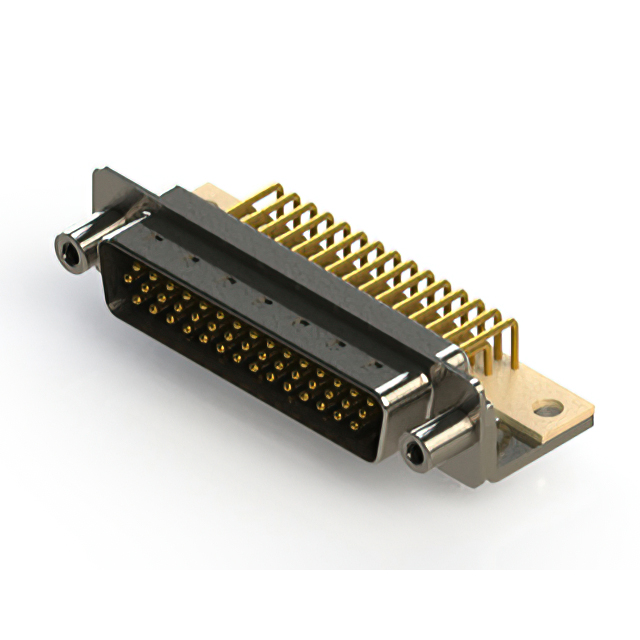

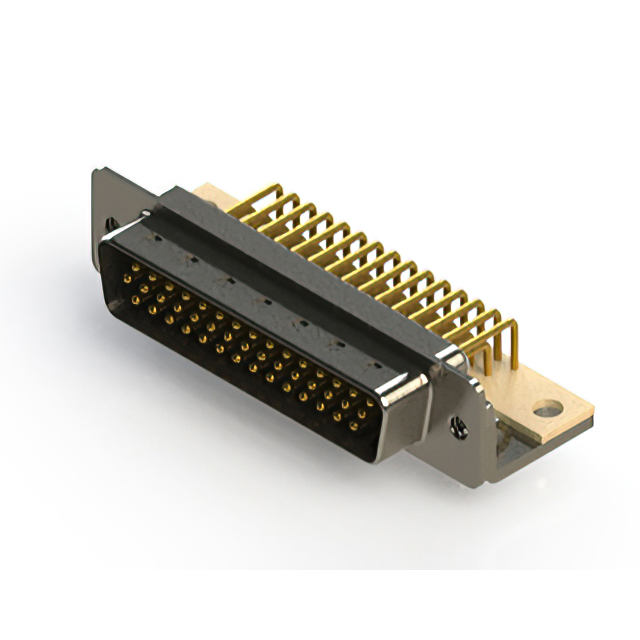

633M SERIES RIGHT ANGLE D-SUB PL
| Part | Dielectric Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Connector Type | Backset Spacing | Backset Spacing | Material Flammability Rating | Flange Feature | Contact Finish | Contact Finish Thickness | Number of Positions | Shell Material, Finish | Contact Type | Current Rating (Amps) | Termination | Mounting Type | Shell Size, Connector Layout | Connector Style | Number of Rows [custom] | Features | Contact Finish Thickness | Contact Finish Thickness | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyamide (PA6T) Nylon 6T | Black | -55 C | 125 °C | Copper Alloy | Plug Male Pins | 8.89 mm | 0.35 in | UL94 V-0 | Board Side (4-40) | Gold | Flash | 44 | Nickel Plated Steel | Signal | 5 A | Solder | Board Edge Right Angle Through Hole | 3 | D-Sub High Density | 3 | Grounding Indents Shielded | |||
 EDAC Inc. | Polyamide (PA6T) Nylon 6T | White | -55 C | 125 °C | Copper Alloy | Plug Male Pins | 8.89 mm | 0.35 in | UL94 V-0 | Housing/Shell (Unthreaded) | Gold | 44 | Nickel Plated Steel | Signal | 5 A | Solder | Board Edge Right Angle Through Hole | 3 | D-Sub High Density | 3 | Grounding Indents Shielded | 30 Áin | 0.76 Ám | ||
 EDAC Inc. | Polyamide (PA6T) Nylon 6T | White | -55 C | 125 °C | Copper Alloy | Plug Male Pins | 8.89 mm | 0.35 in | UL94 V-0 | Housing/Shell (Unthreaded) | Gold | Flash | 44 | Nickel Plated Steel | Signal | 5 A | Solder | Board Edge Right Angle Through Hole | 3 | D-Sub High Density | 3 | Grounding Indents Shielded | |||
 EDAC Inc. | Polyamide (PA6T) Nylon 6T | Black | -55 C | 125 °C | Copper Alloy | Plug Male Pins | 8.89 mm | 0.35 in | UL94 V-0 | Housing/Shell (Unthreaded) | Gold | 44 | Nickel Plated Steel | Signal | 5 A | Solder | Board Edge Right Angle Through Hole | 3 | D-Sub High Density | 3 | Grounding Indents Shielded | 15 µin | 0.38 µm | ||
 EDAC Inc. | Polyamide (PA6T) Nylon 6T | White | -55 C | 125 °C | Copper Alloy | Plug Male Pins | 8.89 mm | 0.35 in | UL94 V-0 | 4-40 | Gold | Flash | 44 | Nickel Plated Steel | Signal | 5 A | Solder | Board Edge Right Angle Through Hole | 3 | D-Sub High Density | 3 | Grounding Indents Shielded | |||
 EDAC Inc. | Polyamide (PA6T) Nylon 6T | Black | -55 C | 125 °C | Copper Alloy | Plug Male Pins | 8.89 mm | 0.35 in | UL94 V-0 | Housing/Shell (Unthreaded) | Gold | Flash | 44 | Nickel Plated Steel | Signal | 5 A | Solder | Board Edge Right Angle Through Hole | 3 | D-Sub High Density | 3 | Grounding Indents Shielded | |||
 EDAC Inc. | Polyamide (PA6T) Nylon 6T | White | -55 C | 125 °C | Copper Alloy | Plug Male Pins | 8.89 mm | 0.35 in | UL94 V-0 | Housing/Shell | Gold | 44 | Signal | 5 A | Solder | Board Edge Right Angle Through Hole | 3 | D-Sub High Density | 3 | Grounding Indents Shielded | 30 Áin | 0.76 Ám | 4-40 | ||
 EDAC Inc. | Polyamide (PA6T) Nylon 6T | White | -55 C | 125 °C | Copper Alloy | Plug Male Pins | 8.89 mm | 0.35 in | UL94 V-0 | Housing/Shell | Gold | Flash | 44 | Nickel Plated Steel | Signal | 5 A | Solder | Board Edge Right Angle Through Hole | 3 | D-Sub High Density | 3 | Grounding Indents Shielded | 4-40 | ||
 EDAC Inc. | Polyamide (PA6T) Nylon 6T | Black | -55 C | 125 °C | Copper Alloy | Plug Male Pins | 8.89 mm | 0.35 in | UL94 V-0 | Housing/Shell | Gold | Flash | 44 | Nickel Plated Steel | Signal | 5 A | Solder | Board Edge Right Angle Through Hole | 3 | D-Sub High Density | 3 | Grounding Indents Shielded | 4-40 | ||
 EDAC Inc. | Polyamide (PA6T) Nylon 6T | Black | -55 C | 125 °C | Copper Alloy | Plug Male Pins | 8.89 mm | 0.35 in | UL94 V-0 | Housing/Shell | Gold | 44 | Nickel Plated Steel | Signal | 5 A | Solder | Board Edge Right Angle Through Hole | 3 | D-Sub High Density | 3 | Grounding Indents Shielded | 15 µin | 0.38 µm | 4-40 |
