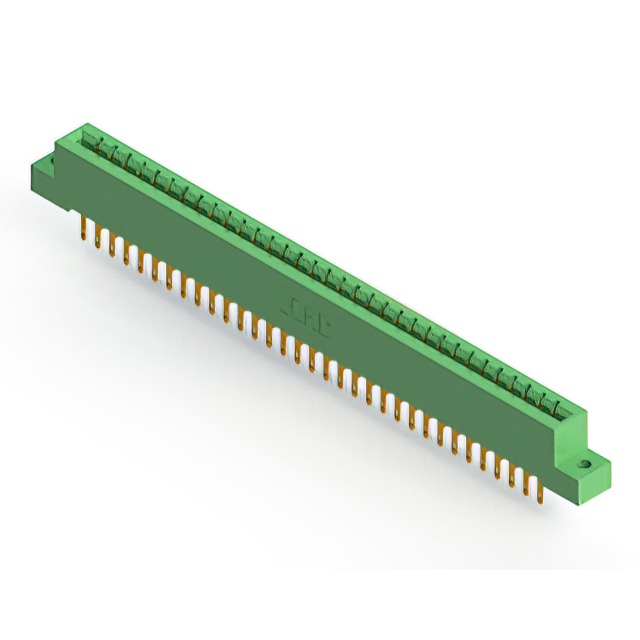

333-066 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 66POS 0.156

...

Part	Material - Insulation	Termination Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Number of Rows [custom]	Color	Mounting Type	Contact Finish	Contact Type	Number of Positions/Bay/Row	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Gender	Termination	Card Type	Contact Material	Card Thickness [Max]	Card Thickness [Min]	Pitch	Pitch	Read Out	Features
EDAC Inc. 333-066-540-803	Polyester Thermoplastic	2	0.25 Ám	10 Áin	66	2	Green	Through Hole	Gold	Cantilever	33	-40 C	105 ░C	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	Female	Wire Wrap	Non Specified - Dual Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	Dual
EDAC Inc. 333-066-560-803	Polyester Thermoplastic	2	0.25 Ám	10 Áin	66	2	Green	Board Edge Straddle Mount	Gold	Cantilever	33	-40 C	105 ░C	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	Female	Solder	Non Specified - Dual Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	Dual	Card Extender
EDAC Inc. 333-066-560-207	Polyester Thermoplastic	2	0.25 Ám	10 Áin	66	2	Green	Board Edge Straddle Mount	Gold	Cantilever	33	-40 C	105 ░C	Flush Mount M3 Threaded Insert Top Opening			Female	Solder	Non Specified - Dual Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	Dual	Card Extender
EDAC Inc. 333-066-520-803	Polyester Thermoplastic	2	0.25 Ám	10 Áin	66	2	Green	Through Hole	Gold	Cantilever	33	-40 C	105 ░C	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	Female	Solder	Non Specified - Dual Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	Dual
EDAC Inc. 333-066-542-207	Polyester Thermoplastic	2	0.25 Ám	10 Áin	66	2	Green	Through Hole	Gold	Cantilever	33	-40 C	105 ░C	Flush Mount M3 Threaded Insert Top Opening			Female	Wire Wrap	Non Specified - Dual Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	Dual
EDAC Inc. 333-066-558-208	Polyester Thermoplastic	2	0.25 Ám	10 Áin	66	2	Green	Right Angle Through Hole	Gold	Cantilever	33	-40 C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening			Female	Wire Wrap	Non Specified - Dual Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	Dual
EDAC Inc. 333-066-558-807	Polyester Thermoplastic	2	0.25 Ám	10 Áin	66	2	Green	Right Angle Through Hole	Gold	Cantilever	33	-40 C	105 ░C	M3 Threaded Insert Top Mount Opening			Female	Wire Wrap	Non Specified - Dual Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	Dual
EDAC Inc. 333-066-555-807	Polyester Thermoplastic	2	0.25 Ám	10 Áin	66	2	Green	Board Edge Straddle Mount	Gold	Cantilever	33	-40 C	105 ░C	M3 Threaded Insert Top Mount Opening			Female	Solder Eyelet(s)	Non Specified - Dual Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	Dual	Card Extender
EDAC Inc. 333-066-559-807	Polyester Thermoplastic	2	0.25 Ám	10 Áin	66	2	Green	Right Angle Through Hole	Gold	Cantilever	33	-40 C	105 ░C	M3 Threaded Insert Top Mount Opening			Female	Solder	Non Specified - Dual Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	Dual
EDAC Inc. 333-066-500-807	Diallyl Phthalate (DAP)	2	0.25 Ám	10 Áin	66	2	Green	Through Hole	Gold	Cantilever	33	-40 C	105 ░C	M3 Threaded Insert Top Mount Opening			Female	Solder Eyelet(s)	Non Specified - Dual Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	Dual
