LMZ13608 Series

8A SIMPLE SWITCHER® Power Module with 36V Maximum Input Voltage

Catalog

8A SIMPLE SWITCHER® Power Module with 36V Maximum Input Voltage

Part	Package / Case	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Type	Current - Output (Max) [Max]	Number of Outputs	Mounting Type	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Efficiency	Main Purpose	Outputs and Type	Outputs and Type	Utilized IC / Part	Current - Output	Board Type	Voltage - Input [Max]	Voltage - Input [Min]	Regulator Topology	Supplied Contents	Voltage - Output

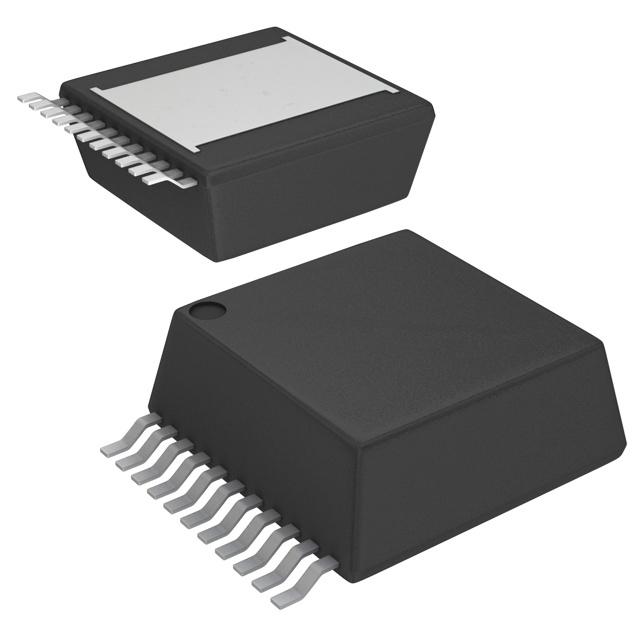

Texas Instruments LMZ13608TZE/NOPB	TO-PMOD-11 Power Module	0.8 V	6 V	Non-Isolated PoL Module	8 A	1	Surface Mount	ITE (Commercial)	125 °C	-40 °C	15 mm	0.23 "	15 mm	0.59 in	5.9 mm	0.59 in	36 V	6 V	93 %
Texas Instruments LMZ13608TZ/NOPB	TO-PMOD-11 Power Module	0.8 V	6 V	Non-Isolated PoL Module	8 A	1	Surface Mount	ITE (Commercial)	125 °C	-40 °C	15 mm	0.23 "	15 mm	0.59 in	5.9 mm	0.59 in	36 V	6 V	93 %

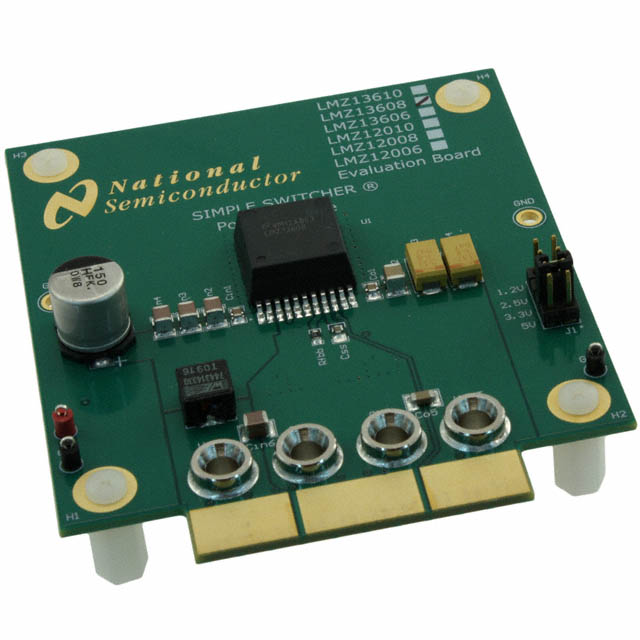

Texas Instruments LMZ13608EVAL/NOPB																				DC/DC Step Down	Non-Isolated	1	LMZ13608	8 A	Fully Populated	36 V	6 V	Buck	Board(s)	1.2 V 2.5 V 3.3 V 5 V

Catalog

8A SIMPLE SWITCHER® Power Module with 36V Maximum Input Voltage

Key Features

• Integrated Shielded InductorSimple PCB LayoutFixed Switching Frequency (350 kHz)Flexible Start-up Sequencing Using External Soft-Start, Tracking and Precision EnableProtection Against Inrush Currents and Faults Such as Input UVLO and Output Short CircuitJunction Temperature Range –40°C to 125°CSingle Exposed Pad and Standard Pinout for Easy Mounting and ManufacturingFully Enabled for WEBENCH®Power DesignerPin Compatible With LMZ22010/08, LMZ12010/08, LMZ23610/08/06H, and LMZ13610/06HPerformance BenefitsHigh Efficiency Reduces System Heat GenerationLow Radiated Emissions (EMI) Tested to EN55022 Class B StandardOnly 7 External ComponentsLow Output Voltage RippleNo External Heat Sink RequiredElectrical Specifications40-W Maximum Total Output PowerUp to 8-A Output CurrentInput Voltage Range 6 V to 36 VOutput Voltage Range 0.8 V to 6 VEfficiency up to 92%(1)(1)EN 55022:2006, +A1:2007, FCC Part 15 Subpart B, Tested on Evaluation Board with EMI ConfigurationIntegrated Shielded InductorSimple PCB LayoutFixed Switching Frequency (350 kHz)Flexible Start-up Sequencing Using External Soft-Start, Tracking and Precision EnableProtection Against Inrush Currents and Faults Such as Input UVLO and Output Short CircuitJunction Temperature Range –40°C to 125°CSingle Exposed Pad and Standard Pinout for Easy Mounting and ManufacturingFully Enabled for WEBENCH®Power DesignerPin Compatible With LMZ22010/08, LMZ12010/08, LMZ23610/08/06H, and LMZ13610/06HPerformance BenefitsHigh Efficiency Reduces System Heat GenerationLow Radiated Emissions (EMI) Tested to EN55022 Class B StandardOnly 7 External ComponentsLow Output Voltage RippleNo External Heat Sink RequiredElectrical Specifications40-W Maximum Total Output PowerUp to 8-A Output CurrentInput Voltage Range 6 V to 36 VOutput Voltage Range 0.8 V to 6 VEfficiency up to 92%(1)(1)EN 55022:2006, +A1:2007, FCC Part 15 Subpart B, Tested on Evaluation Board with EMI Configuration

Description

The LMZ13608 SIMPLE SWITCHER®power module is an easy-to-use step-down DC-DC solution capable of driving up to 8-A load. The LMZ13608 is available in an innovative package that enhances thermal performance and allows for hand or machine soldering. The LMZ13608 can accept an input voltage rail between 6 V and 36 V and can deliver an adjustable and highly accurate output voltage as low as 0.8 V. The LMZ13608 only requires two external resistors and three external capacitors to complete the power solution. The LMZ13608 is a reliable and robust design with the following protection features: thermal shutdown, input undervoltage lockout, output overvoltage protection, short circuit protection, output current limit, and the device allows start-up into a prebiased output. The LMZ13608 SIMPLE SWITCHER®power module is an easy-to-use step-down DC-DC solution capable of driving up to 8-A load. The LMZ13608 is available in an innovative package that enhances thermal performance and allows for hand or machine soldering. The LMZ13608 can accept an input voltage rail between 6 V and 36 V and can deliver an adjustable and highly accurate output voltage as low as 0.8 V. The LMZ13608 only requires two external resistors and three external capacitors to complete the power solution. The LMZ13608 is a reliable and robust design with the following protection features: thermal shutdown, input undervoltage lockout, output overvoltage protection, short circuit protection, output current limit, and the device allows start-up into a prebiased output.
