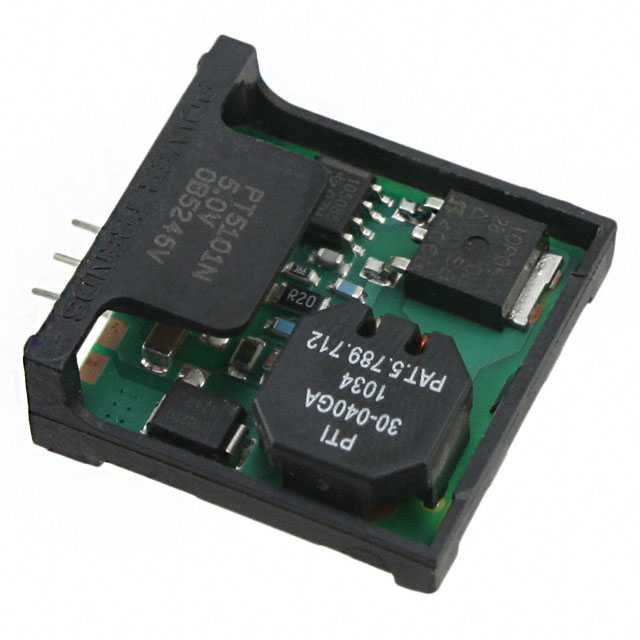

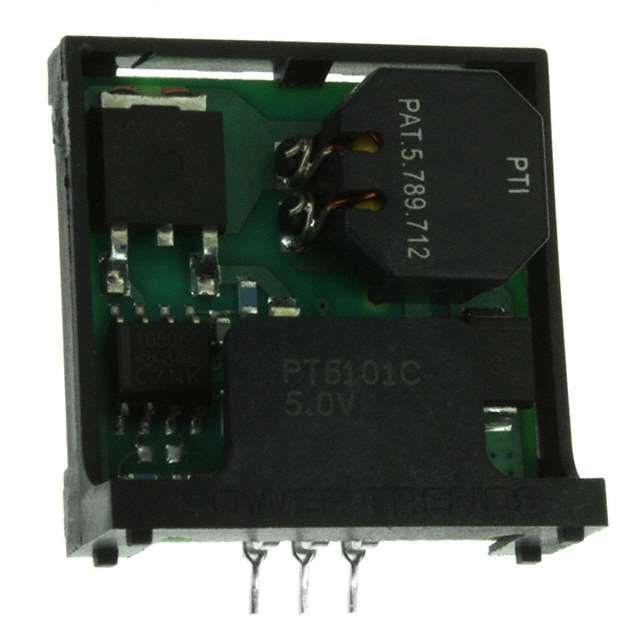

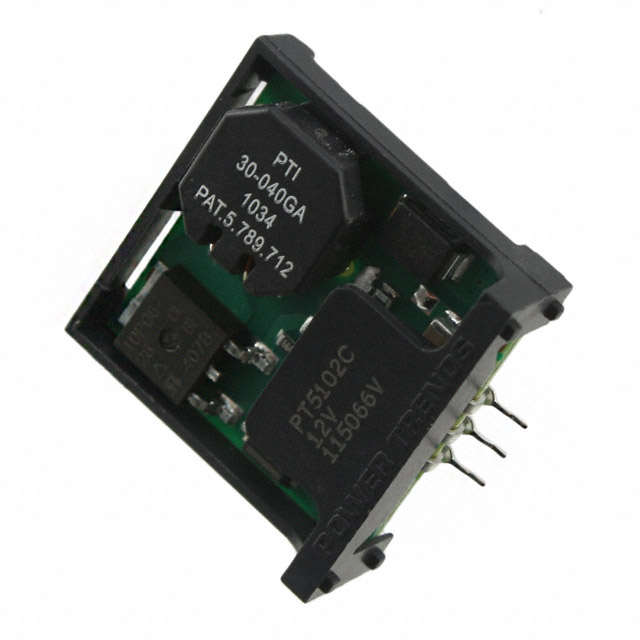

PT5105 Series
Manufacturer: Texas Instruments
Beta
⌘K
DC DC CONVERTER 6.5V 6W
| Part | Applications | Features | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Type | Current - Output (Max) [Max] | Mounting Type | Efficiency | Power (Watts) | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Voltage - Output 1 | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Number of Outputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | ITE (Commercial) | OCP OTP | 85 °C | -40 °C | 3-SMD Module | Linear Regulator Replacement | 1 A | Surface Mount | 90 % | 6 W | 38 V | 10.5 V | 6.5 V | 25.9 mm | 1.02 in | 9.7 mm | 25.4 mm | 25.4 mm | 0.38 in | 1 |
 Texas Instruments | ITE (Commercial) | OCP OTP | 85 °C | -40 °C | 3-SMD Module | Linear Regulator Replacement | 1 A | Surface Mount | 90 % | 6 W | 38 V | 10.5 V | 6.5 V | 25.4 mm | 1 in | 9.7 mm | 1.02 " | 25.9 mm | 0.38 in | 1 |
 Texas Instruments | ITE (Commercial) | OCP OTP | 85 °C | -40 °C | 3-SIP Module | Linear Regulator Replacement | 1 A | Through Hole | 90 % | 6 W | 38 V | 10.5 V | 6.5 V | 25.4 mm | 1 in | 25.9 mm | 0.38 in | 9.7 mm | 1.02 in | 1 |
