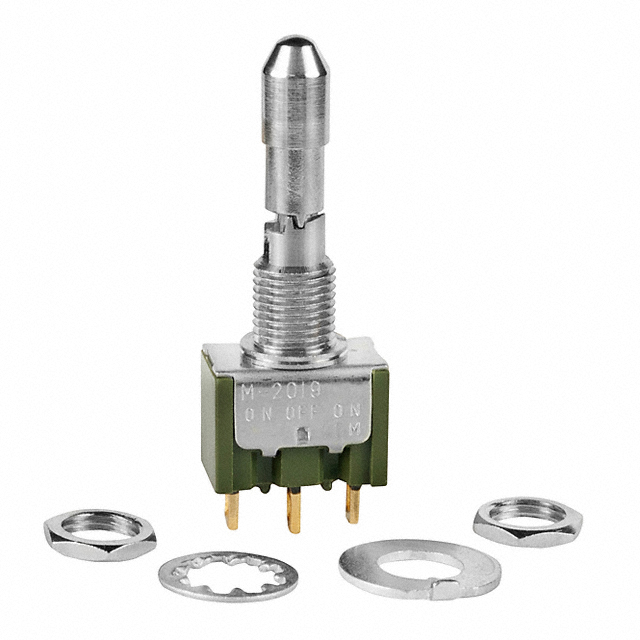

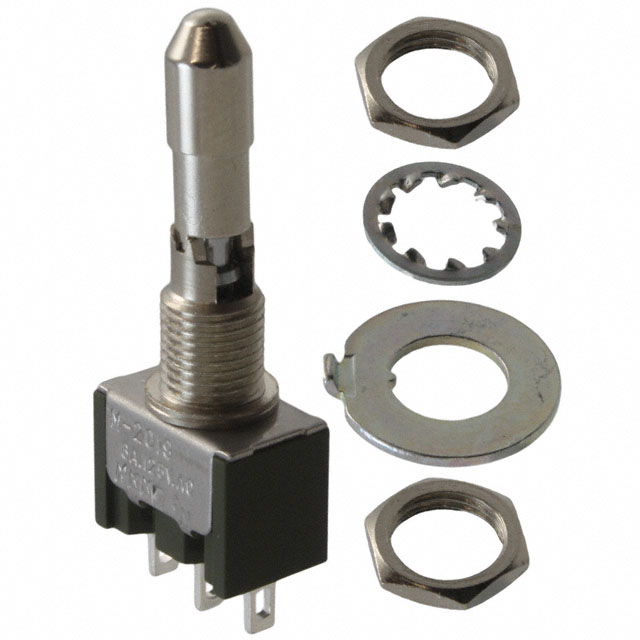

M2019LL Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE SPDT 0.4VA 28V
| Part | Actuator Material | Electrical Life | Illumination | Panel Cutout Dimensions [diameter] | Actuator Type | Termination Style | Circuit | Actuator Length [x] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Voltage Rating - AC | Switch Function | Features | Voltage Rating - DC | Bushing Thread |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | Brass Chrome Plated | 50000 Cycles | Non-Illuminated | 6.5 mm | Locking Lever | Solder Lug | SPDT | 16.5 mm | Panel Mount | 85 °C | -30 ░C | 0.4 VA | 28 V | On-Off-Mom | Epoxy Sealed Terminals | 28 V | 1/4-40 |
NKK Switches | Brass Chrome Plated | 25000 Steps | Non-Illuminated | 6.5 mm | Snap On Paddle | Solder Lug | SPDT | 16.5 mm | Panel Mount | 85 °C | -30 ░C | 0.4 VA | 28 V | On-Off-Mom | Black Cap | 28 V | 1/4-40 |
 NKK Switches | Brass Chrome Plated | 25000 Steps | Non-Illuminated | 6.5 mm | Locking Lever | Solder Lug | SPDT | 16.5 mm | Panel Mount | 85 °C | -30 ░C | 3 A 6 A | 125 V | On-Off-Mom | Epoxy Sealed Terminals | 30 V | 1/4-40 |
