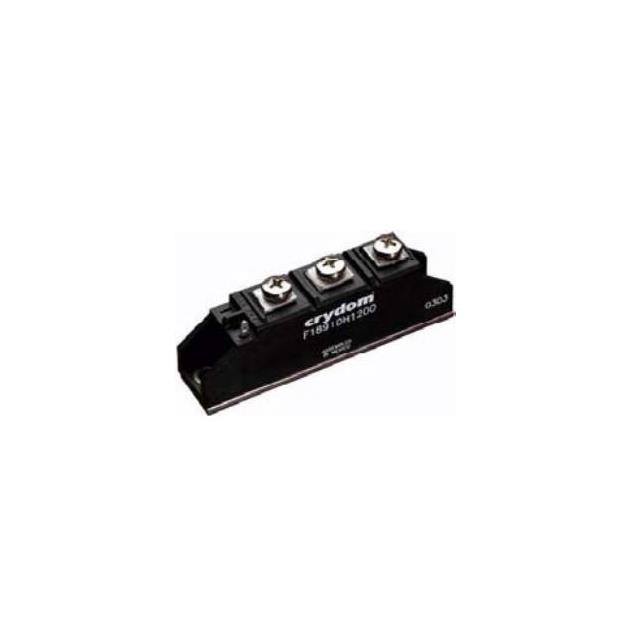

F18107 Series

Catalog

DIODE MODULE GP 1000V 105A

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Diode Configuration	Package / Case	Mounting Type	Speed [Min]	Technology	Current - Average Rectified (Io) (per Diode)	Voltage - Forward (Vf) (Max) @ If	Number of SCRs, Diodes	Current - Gate Trigger (Igt) (Max) [Max]	Voltage - Off State	Structure	Current - Non Rep. Surge 50, 60Hz (Itsm)	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package
Sensata-Crydom F18107RD1000	1000 V	1 Pair Series Connection	Module	Chassis Mount	200 mA 500 ns	Standard	105 A	1.65 V
Sensata-Crydom F18107HD1400			Module	Chassis Mount					2 SCRs	150 mA	1.4 kV	Series Connection - SCR/Diode	2250 A	-40 C	125 °C
Sensata-Crydom F18107RD1200	1.2 kV	1 Pair Series Connection	Module	Chassis Mount	200 mA 500 ns	Standard	105 A	1.65 V
Sensata-Crydom F18107HD1200			Module	Chassis Mount					2 SCRs	150 mA	1.2 kV	Series Connection - SCR/Diode	2250 A	-40 C	125 °C
Sensata-Crydom F18107SD1600			Module	Chassis Mount					2 SCRs	150 mA	1.6 kV	Series Connection - All SCRs	2250 A	-40 C	125 °C
Sensata-Crydom F18107SD400			Module	Chassis Mount					2 SCRs	150 mA	400 V	Series Connection - All SCRs	2250 A	-40 C	125 °C
Sensata-Crydom F18107RD1400	1400 V	1 Pair Series Connection	Module	Chassis Mount	200 mA 500 ns	Standard	105 A	1.65 V
Sensata-Crydom F18107D1600	600 V		Module	Chassis Mount	200 mA 500 ns	Standard										Module
