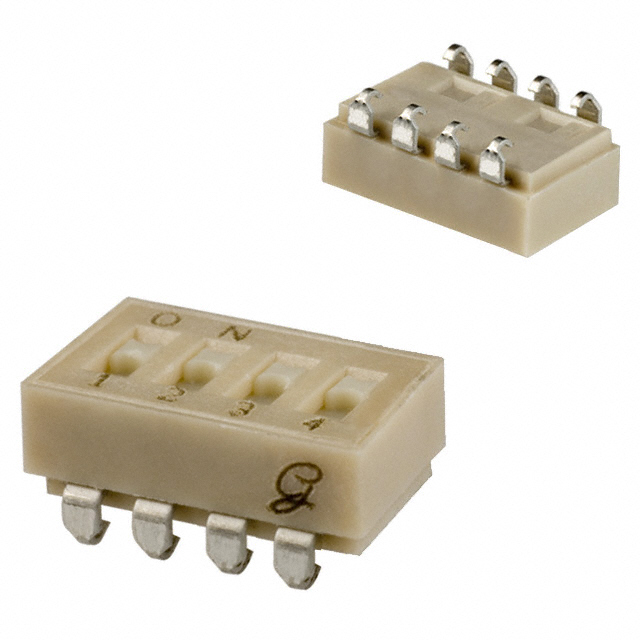

90HBJ04 Series
Manufacturer: Grayhill Inc.
Beta
⌘K
SWITCH SLIDE DIP SPST 0.025A 24V
| Part | Electrical Life | Body Material | Mechanical Life | Length | Length | Washable | Pitch | Pitch | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Mounting Type | Circuit | Contact Finish | Number of Positions | Height Above Board [z] | Height Above Board [z] | Actuator Level | Actuator Type | Current Rating (Amps) | Features | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | 2000 Steps | Thermoplastic | 2000 Cycles | 11.94 mm | 0.47 in | 2.54 mm | 0.1 " | J Lead | 85 °C | -40 C | Copper Alloy | Surface Mount | SPST | Gold | 4 | 0.22 in | 5.59 mm | Flush Recessed | Slide (Standard) | 25 mA | Tape Seal | 24 VDC | |
 Grayhill Inc. | 2000 Steps | Thermoplastic | 2000 Cycles | 11.94 mm | 0.47 in | 2.54 mm | 0.1 " | J Lead | 85 °C | -40 C | Copper Alloy | Surface Mount | SPST | Gold | 4 | 0.22 in | 5.59 mm | Flush Recessed | Slide (Standard) | 25 mA | Tape Seal | 24 VDC |
