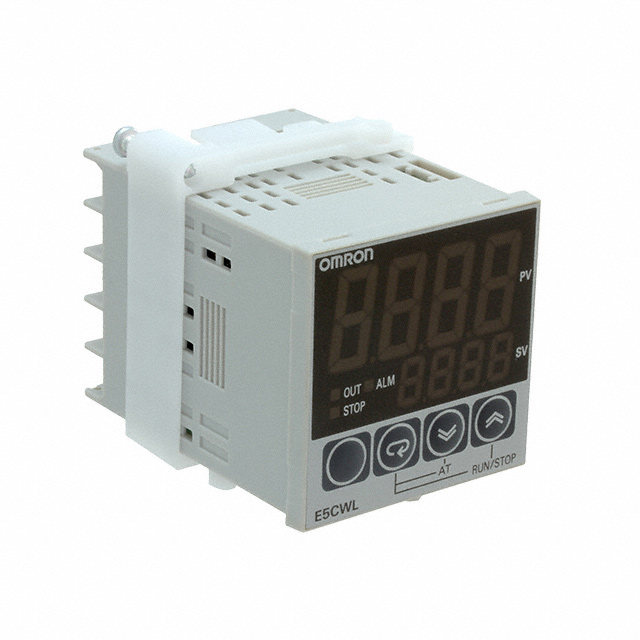

E5CWL Series

Catalog

CONTROL TEMP RELAY OUT 100-240V

Part	Weight [custom]	Weight [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Termination Style	Mounting Type	Number of Characters Per Row	Number of Characters Per Row	Display Characters - Height [z]	Display Characters - Height [z]	Voltage - Supply [Max]	Voltage - Supply [Min]	Ingress Protection	Control Method	Display Type	Output Type	Type	Input Range [Max]	Input Range [Min]
Omron Automation and Safety E5CWL-R1P AC100-240	100.24 g	0.221 lb	55 °C	-10 °C	45 mm	45 mm	Screw Terminal	Panel Mount	4	4	0.638 in	16.2 mm	240 VAC	100 VAC	IP50 - Dust Protected	On/Off Proportional (PID)	LED - Dual Color Characters	Relay (2)	Temperature Controller (RTD)	850 °C	-200 °C
Omron Automation and Safety E5CWL-Q1P AC100-240	100.24 g	0.221 lb	55 °C	-10 °C	45 mm	45 mm	Screw Terminal	Panel Mount	4	4	0.638 in	16.2 mm	240 VAC	100 VAC	IP50 - Dust Protected	On/Off Proportional (PID)	LED - Dual Color Characters	Relay Voltage (External SSR)	Temperature Controller (RTD)	850 °C	-200 °C
Omron Automation and Safety E5CWL-Q1TC AC100-240	100.24 g	0.221 lb	55 °C	-10 °C	45 mm	45 mm	Screw Terminal	Panel Mount	4	4	0.638 in	16.2 mm	240 VAC	100 VAC	IP50 - Dust Protected	On/Off Proportional (PID)	LED - Dual Color Characters	Relay Voltage (External SSR)	Temperature Controller (Type J K R S T)	1700 °C	-200 °C
