JB15LPC Series

Catalog

ILLUMINATED LOW PROFILE PROCESS SEALED TACTILE

Part	Switch Travel	Actuator Material	Mechanical Life	Outline [x]	Outline [y]	Actuator Height off PCB, Vertical [z]	Ingress Protection	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Contact Rating @ Voltage	Actuator Orientation	Illumination	Illumination Type, Color	Features	Mounting Type	Switch Function	Operating Force	Illumination Voltage (Nominal)	Circuit

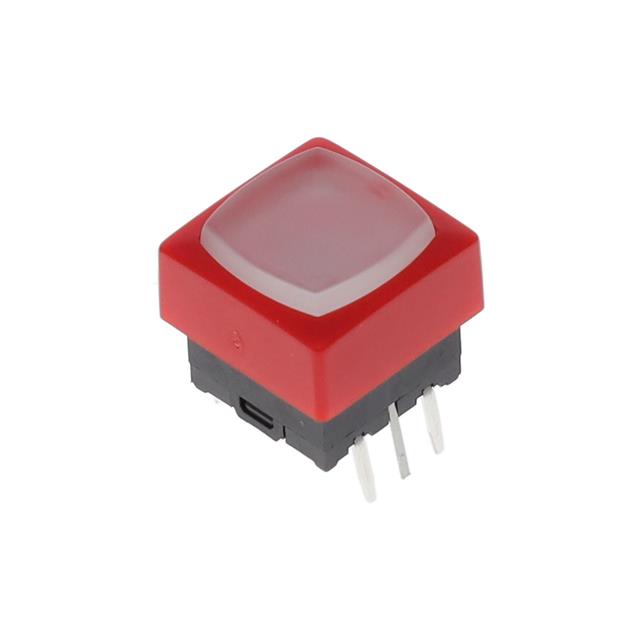

NKK Switches JB15LPC-BC	0.25 mm	Polyacetal	5000000 Cycles	10 mm	10 mm	11.2 mm	IP67 - Dust Tight Waterproof	Square Button	-25 °C	70 °C	PC Pin	0.05 A 24 VDC	Top Actuated	Illuminated	LED Red	Process Sealed	Through Hole	Off-Mom	176 gf	1.8 VDC	SPST-NO

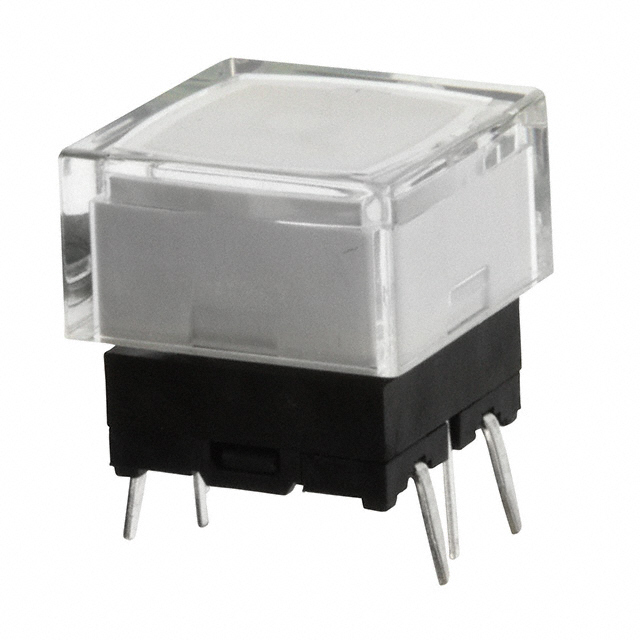

NKK Switches JB15LPC-JB	0.25 mm	Polyacetal	5000000 Cycles	10 mm	10 mm	11.2 mm	IP67 - Dust Tight Waterproof	Square Button	-25 °C	70 °C	PC Pin	0.05 A 24 VDC	Top Actuated	Illuminated	LED Red	Process Sealed	Through Hole	Off-Mom	176 gf	1.8 VDC	SPST-NO
NKK Switches JB15LPC-JF	0.25 mm	Polyacetal	5000000 Cycles	10 mm	10 mm	11.2 mm	IP67 - Dust Tight Waterproof	Square Button	-25 °C	70 °C	PC Pin	0.05 A 24 VDC	Top Actuated	Illuminated	LED Red	Process Sealed	Through Hole	Off-Mom	176 gf	1.8 VDC	SPST-NO
NKK Switches JB15LPC-JE	0.25 mm	Polyacetal	5000000 Cycles	10 mm	10 mm	11.2 mm	IP67 - Dust Tight Waterproof	Square Button	-25 °C	70 °C	PC Pin	0.05 A 24 VDC	Top Actuated	Illuminated	LED Red	Process Sealed	Through Hole	Off-Mom	176 gf	1.8 VDC	SPST-NO

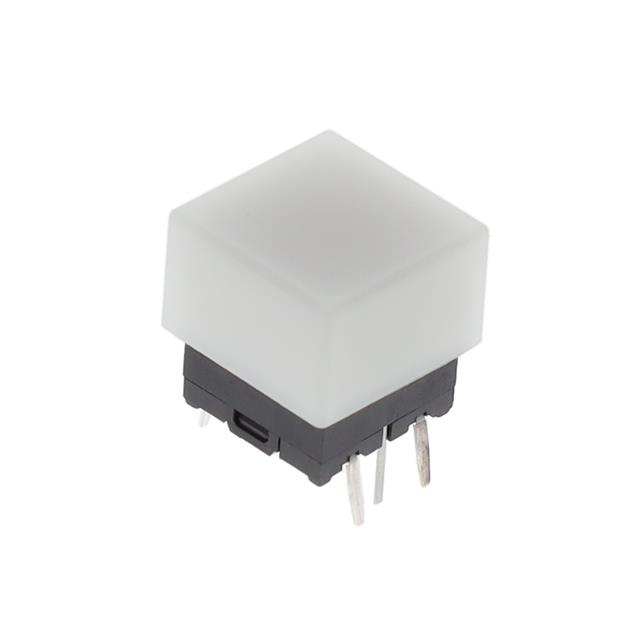

NKK Switches JB15LPC-B	0.25 mm	Polyacetal	5000000 Cycles	10 mm	10 mm	11.2 mm	IP67 - Dust Tight Waterproof	Square Button	-25 °C	70 °C	PC Pin	0.05 A 24 VDC	Top Actuated	Illuminated	LED Red	Process Sealed	Through Hole	Off-Mom	176 gf	1.8 VDC	SPST-NO
NKK Switches JB15LPC-C	0.25 mm	Polyacetal	5000000 Cycles	10 mm	10 mm	11.2 mm	IP67 - Dust Tight Waterproof	Square Button	-25 °C	70 °C	PC Pin	0.05 A 24 VDC	Top Actuated	Illuminated	LED Red	Process Sealed	Through Hole	Off-Mom	176 gf	1.8 VDC	SPST-NO
NKK Switches JB15LPC-BF	0.25 mm	Polyacetal	5000000 Cycles	10 mm	10 mm	11.2 mm	IP67 - Dust Tight Waterproof	Square Button	-25 °C	70 °C	PC Pin	0.05 A 24 VDC	Top Actuated	Illuminated	LED Red	Process Sealed	Through Hole	Off-Mom	176 gf	1.8 VDC	SPST-NO

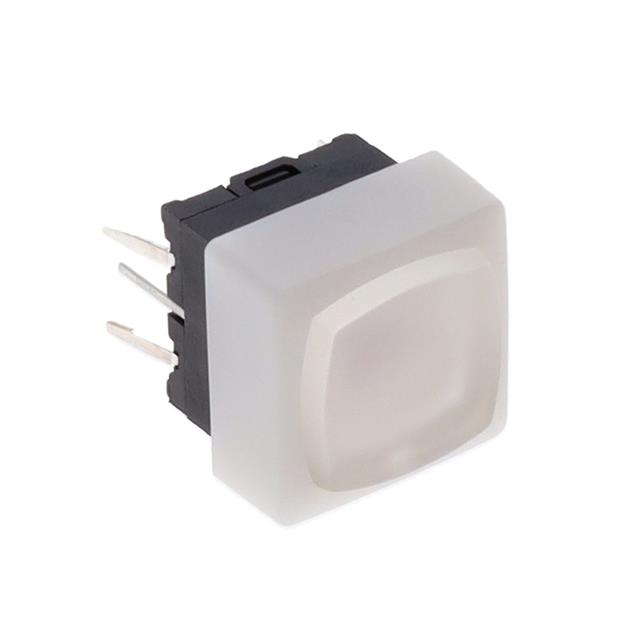

NKK Switches JB15LPC-BB	0.25 mm	Polyacetal	5000000 Cycles	10 mm	10 mm	11.2 mm	IP67 - Dust Tight Waterproof	Square Button	-25 °C	70 °C	PC Pin	0.05 A 24 VDC	Top Actuated	Illuminated	LED Red	Process Sealed	Through Hole	Off-Mom	176 gf	1.8 VDC	SPST-NO
NKK Switches JB15LPC-BH	0.25 mm	Polyacetal	5000000 Cycles	10 mm	10 mm	11.2 mm	IP67 - Dust Tight Waterproof	Square Button	-25 °C	70 °C	PC Pin	0.05 A 24 VDC	Top Actuated	Illuminated	LED Red	Process Sealed	Through Hole	Off-Mom	176 gf	1.8 VDC	SPST-NO
