LCD2 Series

Catalog

CONN TERM RECT TONG 2 AWG #3/8

Part	Contact Finish	Diameter - Barrel OD [diameter]	Diameter - Barrel OD [diameter]	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]	Contact Material	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Termination	Wire Gauge	Mounting Type	Width - Outer Edges	Width - Outer Edges	Insulation	Color	Tab Thickness	Tab Thickness	Terminal Style	Terminal Type	Stud/Tab Size	Diameter - Ring ID	Diameter - Ring ID	Tab Thickness [x]	Tab Thickness [x]	Width - Outer Edges [x]	Width - Outer Edges [x]	Length - Overall	Length - Overall	Diameter - Ring ID	Length - Overall [x]	Length - Overall [x]

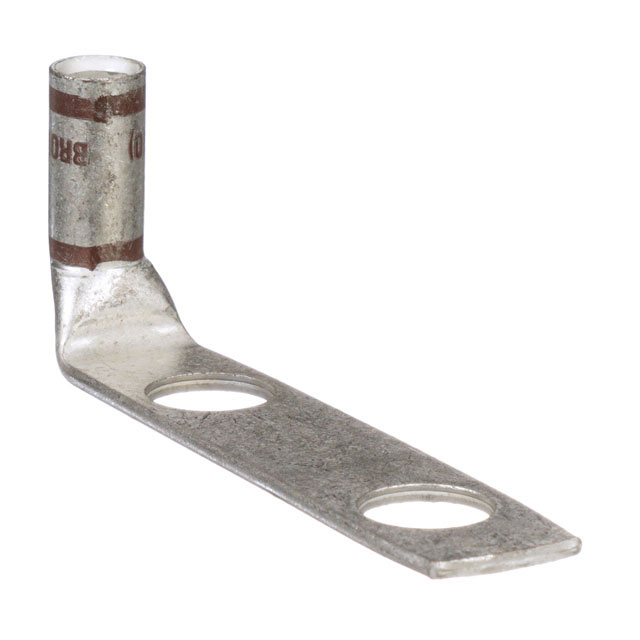

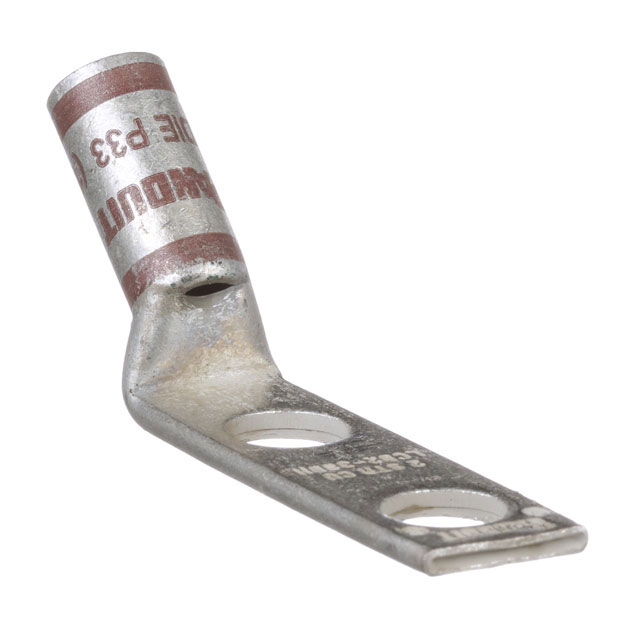

Panduit Corp LCD2-38DH-Q	Electro-Tin	0.42 in	10.67 mm	10.41 mm	0.41 "	Copper	7.87 mm	0.31 in	Barrel Crimp	2 AWG	Free Hanging (In-Line)	16.76 mm	0.66 in	Non-Insulated	Brown	2.54 mm	0.1 in	Two Stud Holes	Rectangular Tongue	0.375 Stud

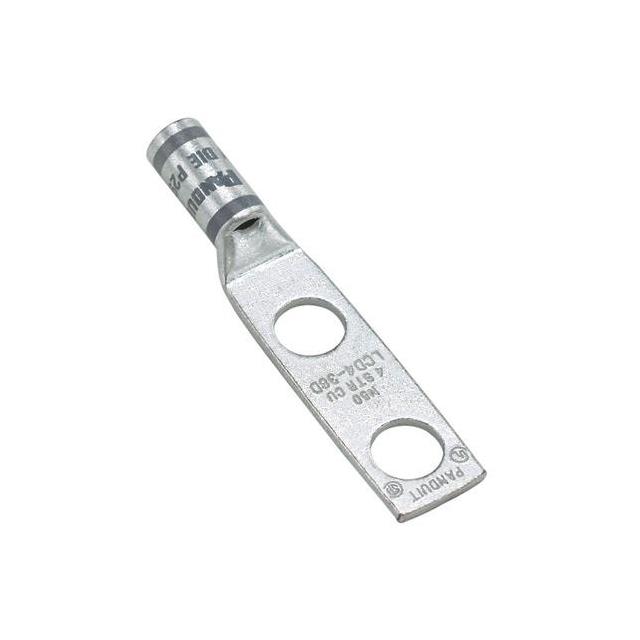

Panduit Corp LCD2/0-56C-X	Electro-Tin	0.58 "	14.73 mm			Copper	11.43 mm	0.45 in	Barrel Crimp		Free Hanging (In-Line)			Non-Insulated	Black			Two Stud Holes	Rectangular Tongue	0.3125 Stud	8.64 mm	0.34 in	3.3 mm	0.13 in	0.85 in	21.59 mm	2.95 in	74.93 mm
Panduit Corp LCD2-14A-Q	Electro-Tin	0.42 in	10.67 mm			Copper	7.87 mm	0.31 in	Barrel Crimp	2 AWG	Free Hanging (In-Line)	15.24 mm		Non-Insulated	Brown	2.54 mm	0.1 in	Two Stud Holes	Lug Grounding	0.25 Stud		6.86 mm			0.6 "				0.27 in	2.4 in	60.96 mm
Panduit Corp LCD2/0-14A-X	Electro-Tin	0.58 "	14.73 mm			Copper	11.43 mm	0.45 in	Barrel Crimp		Free Hanging (In-Line)			Non-Insulated	Black			Two Stud Holes	Rectangular Tongue	0.25 Stud		6.86 mm	3.3 mm	0.13 in	0.85 in	21.59 mm			0.27 in	2.7 in	68.58 mm

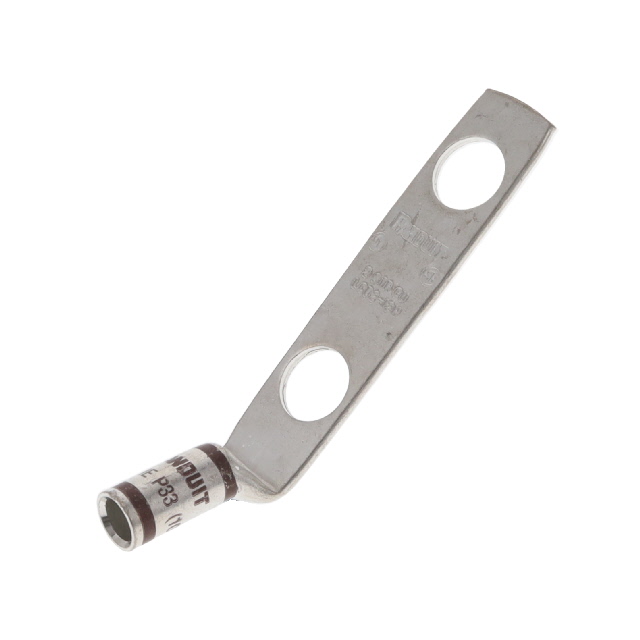

Panduit Corp LCD2-12H-Q	Electro-Tin	0.42 in	10.67 mm			Copper	7.87 mm	0.31 in	Barrel Crimp	2 AWG	Free Hanging (In-Line)			Non-Insulated	Brown	2.03 mm	0.08 "	Two Stud Holes	Rectangular Tongue	0.5 Stud	13.46 mm	0.53 in			0.75 in	19.05 mm
Panduit Corp LCD2/0-38DF-X	Electro-Tin	0.58 "	14.73 mm	10.41 mm	0.41 "	Copper	11.43 mm	0.45 in	Barrel Crimp		Free Hanging (In-Line) Right Angle			Non-Insulated	Black			Two Stud Holes	Rectangular Tongue	0.375 Stud			3.3 mm	0.13 in	0.85 in	21.59 mm

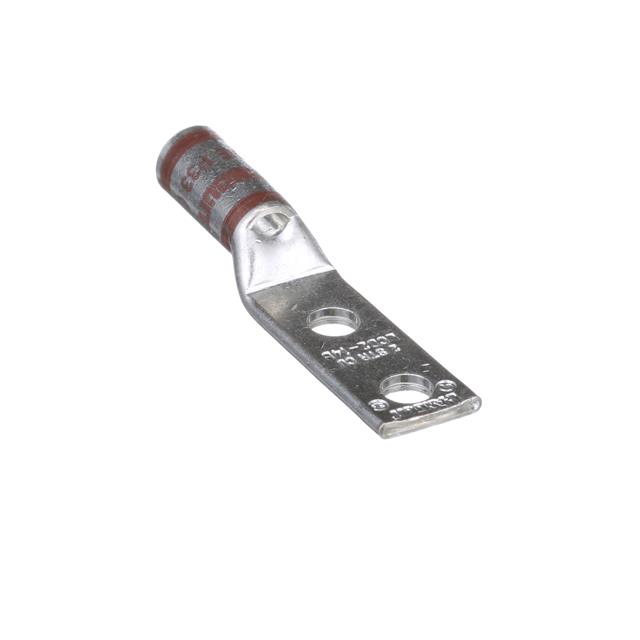

Panduit Corp LCD2-14B-Q	Electro-Tin	0.42 in	10.67 mm			Copper	7.87 mm	0.31 in	Barrel Crimp	2 AWG	Free Hanging (In-Line)	15.24 mm		Non-Insulated	Brown	2.54 mm	0.1 in	Two Stud Holes	Rectangular Tongue	0.25 Stud		6.86 mm			0.6 "				0.27 in	2.52 in	64 mm
Panduit Corp LCD2-14BH-Q	Electro-Tin	0.42 in	10.67 mm			Copper	7.87 mm	0.31 in	Barrel Crimp	2 AWG	Free Hanging (In-Line)	15.24 mm		Non-Insulated	Brown	2.54 mm	0.1 in	Two Stud Holes	Rectangular Tongue	0.25 Stud		6.86 mm			0.6 "				0.27 in
Panduit Corp LCD2-12F-Q	Electro-Tin	0.42 in	10.67 mm			Copper	7.87 mm	0.31 in	Barrel Crimp	2 AWG	Free Hanging (In-Line) Right Angle			Non-Insulated	Brown	2.03 mm	0.08 "	Two Stud Holes	Rectangular Tongue	0.5 Stud	13.46 mm	0.53 in			0.75 in	19.05 mm
Panduit Corp LCD2-14DH-Q	Electro-Tin	0.42 in	10.67 mm			Copper	7.87 mm	0.31 in	Barrel Crimp	2 AWG	Free Hanging (In-Line)	15.24 mm		Non-Insulated	Brown	2.54 mm	0.1 in	Two Stud Holes	Rectangular Tongue	0.25 Stud		6.86 mm			0.6 "				0.27 in
