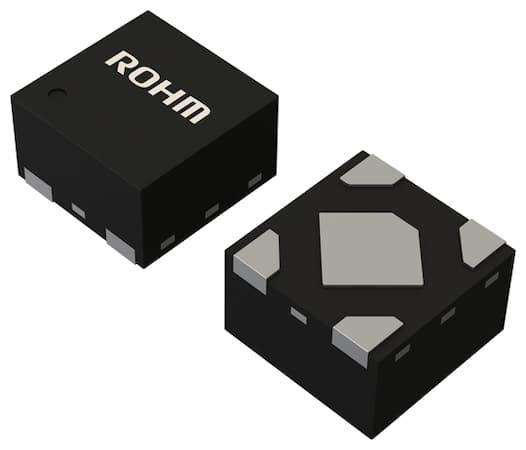

BD521VNVX-2C Series

Nano Energy™, 0.965V, Adjustable Delay Voltage Detector for Automotive

Catalog

Nano Energy™, 0.965V, Adjustable Delay Voltage Detector for Automotive

Part	Supplier Device Package	Reset Timeout [Min]	Number of Voltages Monitored	Reset	Type	Qualification	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Mounting Type	Grade	Output
Rohm Semiconductor BD521VNVX-2CTL	SSON004R1010	27.7 ms	1	Active High	Voltage Detector	AEC-Q100	125 °C	-40 °C	4-UDFN Exposed Pad	Surface Mount	Automotive	Open Drain or Open Collector

Catalog

Nano Energy™, 0.965V, Adjustable Delay Voltage Detector for Automotive

Key Features

• Nano Energy™, AEC-Q100 Qualified(Grade 1), Delay Time Setting Controlled by External Capacitor, Nch Open Drain Output Type, Miniature Surface-mount Package

Description

ROHM's Free Time Delay Setting CMOS Voltage Detector ICs are highly accurate, with ultra-low current consumption feature that uses CMOS process. Delay time setting can be control by an external capacitor. The lineup includes N-channel open drain output with detection voltage of 0.965V. The time delay has ±50% accuracy in the overall operating temperature range of -40℃ to 125℃.
