6309FE Series
Manufacturer: Belden Inc.
Beta
⌘K

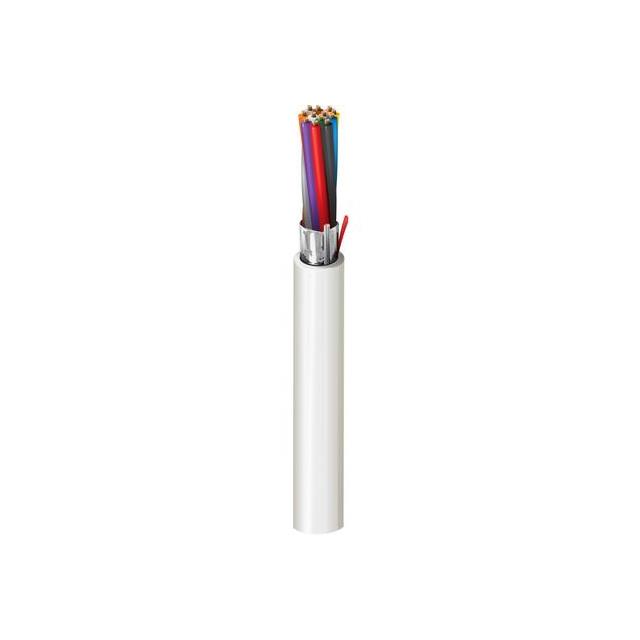

CABLE 12COND 18AWG NATURAL
| Part | Shield Material | Shield Coverage | Length | Length | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Features | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Jacket Color | Usage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Number of Conductors | Conductor Insulation | Jacket (Insulation) Material | Conductor Material | Cable Type | Ratings | Shield Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | 152.4 m | 500 ft | 300 VDC | 7.92 mm | 0.312 in | Drain Wire Rip Cord | 26 AWG | 7 | 75 ░C | 0 °C | Natural | Security Sound | 0.017 " | 0.432 mm | 18 AWG | 12 | Low Smoke Poly-Vinyl Chloride (LSPVC) | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | Copper Bare | Multi-Conductor | UL Style CMP | Foil |
