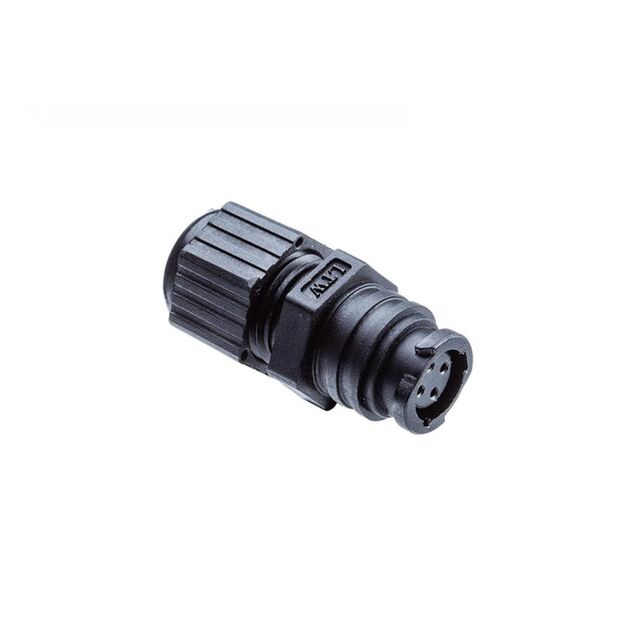

PLD-03 Series
Manufacturer: Amphenol LTW
Catalog
CIRCULAR SIZE 12
| Part | Color | Backshell Material, Plating | Operating Temperature [Min] | Operating Temperature [Max] | Shell Material | Features | Orientation | Contact Material | Cable Opening [diameter] | Cable Opening [diameter] | Mounting Type | Primary Material | Material Flammability Rating | Voltage Rating | Insert Material | Shell Size - Insert | Fastening Type | Ingress Protection | Contact Finish - Mating | Current Rating (Amps) | Connector Type | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol LTW | Black | Nylon Polyamide (PA) | -40 °C | 105 ░C | Nickel | Backshell | Keyed | Copper Alloy | 4.5 mm 6.5 mm | 0.177 in 0.256 in | Free Hanging (In-Line) | Metal | UL94 V-0 | 250 VAC | Nylon Polyamide (PA) | PL | Bayonet Lock | IP67 - Dust Tight Waterproof | Gold | 5 A | Receptacle Female Sockets | Unshielded |
