2.54mm Pitch C-Grid III Header, Single Row, Right-Angle, 40 Circuits, 0.38µm Gold (Au) Selective Plating
2.54mm Pitch C-Grid III Header, Single Row, Right-Angle, 40 Circuits, 0.38µm Gold (Au) Selective Plating
2.54mm Pitch C-Grid III Header, Single Row, Right-Angle, 40 Circuits, 0.38µm Gold (Au) Selective Plating
| Part | Applications | Contact Length - Mating | Contact Length - Mating | Style | Shrouding | Contact Length - Post [x] | Contact Length - Post [x] | Number of Positions | Pitch - Mating | Pitch - Mating | Connector Type | Material Flammability Rating | Contact Material | Mounting Type | Insulation Color | Insulation Height | Insulation Height | Insulation Material | Contact Finish - Post | Fastening Type | Contact Shape | Contact Type | Termination | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Rows | Number of Positions Loaded | Contact Finish Thickness - Post [custom] | Contact Finish Thickness - Post [custom] | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

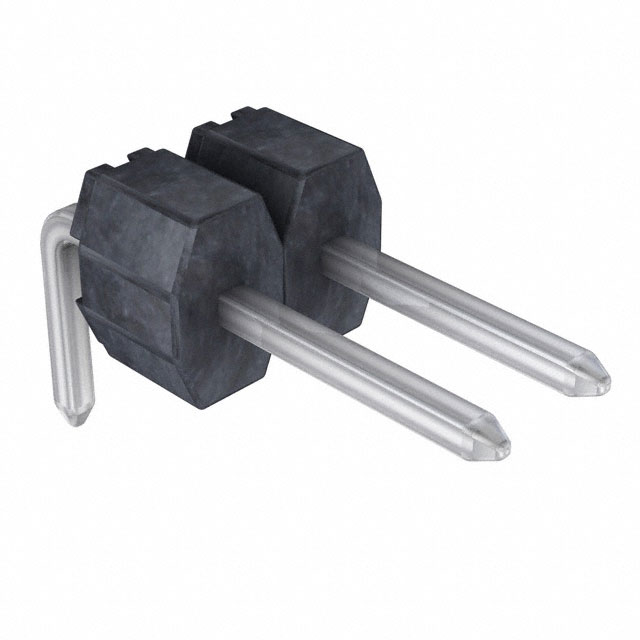

 Molex | Automotive General Purpose | 0.266 in | 6.75 mm | Board to Board Cable | Unshrouded | 0.114 in | 2.9 mm | 2 | 0.1 " | 2.54 mm | Header Breakaway | UL94 V-0 | Brass | Right Angle Through Hole | Black | 0.142 in | 3.6 mm | Polyester Glass Filled | Tin | Push-Pull | Square | Male Pin | Solder | 118.1 µin | 3 µm | 1 | All | |||
 Molex | Automotive General Purpose | 0.266 in | 6.75 mm | Board to Board Cable | Unshrouded | 0.114 in | 2.9 mm | 9 | 0.1 " | 2.54 mm | Header Breakaway | UL94 V-0 | Brass | Right Angle Through Hole | Black | 0.142 in | 3.6 mm | Polyester Glass Filled | Tin | Push-Pull | Square | Male Pin | Solder | 15 µin | 0.38 µm | 1 | All | 118.1 µin | 3 µm | Gold |
 Molex | Automotive General Purpose | 0.266 in | 6.75 mm | Board to Board Cable | Unshrouded | 0.114 in | 2.9 mm | 7 | 0.1 " | 2.54 mm | Header Breakaway | UL94 V-0 | Brass | Right Angle Through Hole | Black | 0.142 in | 3.6 mm | Polyester Glass Filled | Tin | Push-Pull | Square | Male Pin | Solder | 118.1 µin | 3 µm | 1 | All | |||
Molex | Automotive General Purpose | 0.266 in | 6.75 mm | Board to Board Cable | Unshrouded | 0.114 in | 2.9 mm | 12 | 0.1 " | 2.54 mm | Header Breakaway | UL94 V-0 | Brass | Right Angle Through Hole | Black | 0.142 in | 3.6 mm | Polyester Glass Filled | Tin | Push-Pull | Square | Male Pin | Solder | 118.1 µin | 3 µm | 1 | All | |||

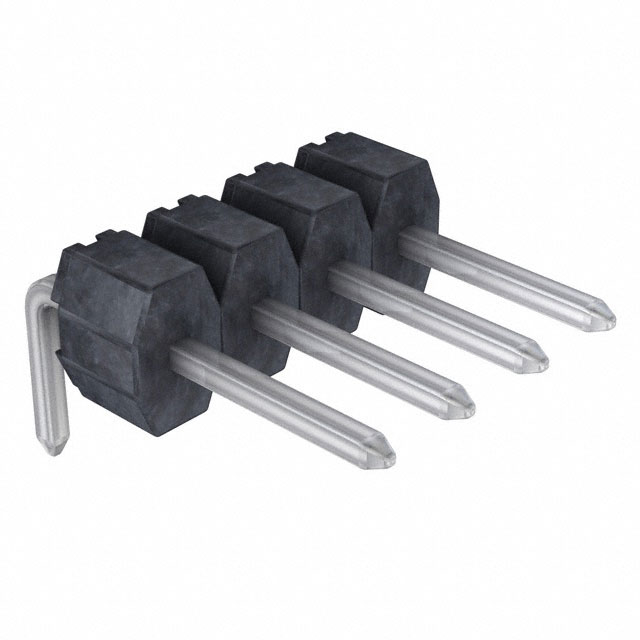

 Molex | Automotive General Purpose | 0.266 in | 6.75 mm | Board to Board Cable | Unshrouded | 0.114 in | 2.9 mm | 4 | 0.1 " | 2.54 mm | Header Breakaway | UL94 V-0 | Brass | Right Angle Through Hole | Black | 0.142 in | 3.6 mm | Polyester Glass Filled | Tin | Push-Pull | Square | Male Pin | Solder | 118.1 µin | 3 µm | 1 | All | |||
Molex | Automotive General Purpose | 0.266 in | 6.75 mm | Board to Board Cable | Unshrouded | 0.114 in | 2.9 mm | 8 | 0.1 " | 2.54 mm | Header Breakaway | UL94 V-0 | Brass | Right Angle Through Hole | Black | 0.142 in | 3.6 mm | Polyester Glass Filled | Tin | Push-Pull | Square | Male Pin | Solder | 118.1 µin | 3 µm | 1 | All | |||
Molex | Automotive General Purpose | 0.266 in | 6.75 mm | Board to Board Cable | Unshrouded | 0.114 in | 2.9 mm | 40 | 0.1 " | 2.54 mm | Header Breakaway | UL94 V-0 | Brass | Right Angle Through Hole | Black | 0.142 in | 3.6 mm | Polyester Glass Filled | Tin | Push-Pull | Square | Male Pin | Solder | 118.1 µin | 3 µm | 1 | All | |||
Molex | Automotive General Purpose | 0.266 in | 6.75 mm | Board to Board Cable | Unshrouded | 0.114 in | 2.9 mm | 9 | 0.1 " | 2.54 mm | Header Breakaway | UL94 V-0 | Brass | Right Angle Through Hole | Black | 0.142 in | 3.6 mm | Polyester Glass Filled | Tin | Push-Pull | Square | Male Pin | Solder | 118.1 µin | 3 µm | 1 | All | |||
 Molex | Automotive General Purpose | 0.266 in | 6.75 mm | Board to Board Cable | Unshrouded | 0.114 in | 2.9 mm | 0.1 " | 2.54 mm | Header Breakaway | UL94 V-0 | Brass | Right Angle Through Hole | Black | 0.142 in | 3.6 mm | Polyester Glass Filled | Tin | Push-Pull | Square | Male Pin | Solder | 118.1 µin | 3 µm | 1 | All | ||||
Molex | Automotive General Purpose | 0.266 in | 6.75 mm | Board to Board Cable | Unshrouded | 0.114 in | 2.9 mm | 5 | 0.1 " | 2.54 mm | Header Breakaway | UL94 V-0 | Brass | Right Angle Through Hole | Black | 0.142 in | 3.6 mm | Polyester Glass Filled | Tin | Push-Pull | Square | Male Pin | Solder | 15 µin | 0.38 µm | 1 | All | 118.1 µin | 3 µm | Gold |
