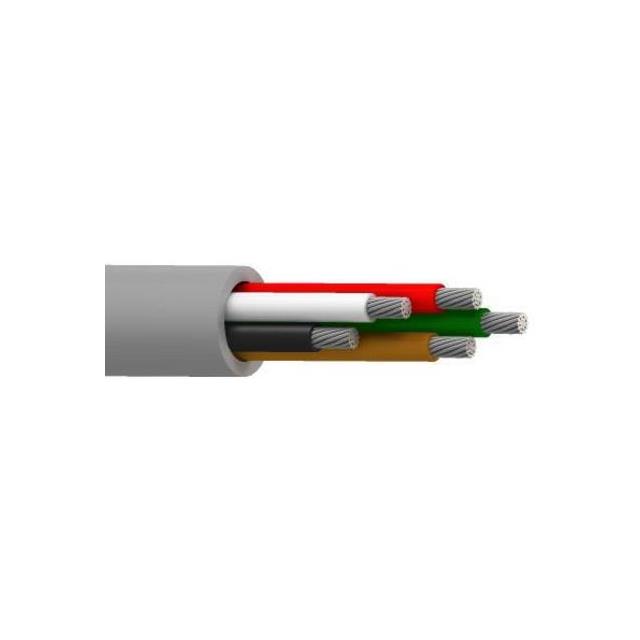

8445MN Series
Manufacturer: Belden Inc.
Beta
⌘K
CABLE 5COND 22AWG YELLOW
| Part | Number of Conductors | Voltage | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Conductor Material | Jacket (Insulation) Material | Jacket Color | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Ratings | Length | Length | Operating Temperature [Max] | Operating Temperature [Min] | Usage | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 5 | 300 VDC | Polypropylene (PP) | 0.406 mm | 0.016 in | 22 AWG | Copper Tinned | Poly-Vinyl Chloride (PVC) | Yellow | Multi-Conductor | 4.24 mm | 0.167 in | 34 AWG | 19 | UL Style 2937 | 304.8 m | 1000 ft | 80 °C | -20 ░C | Audio Control Instrumentation | ||
Belden Inc. | 5 | 300 VDC | Polypropylene (PP) | 0.406 mm | 0.016 in | 22 AWG | Copper Tinned | Poly-Vinyl Chloride (PVC) | Yellow | Multi-Conductor | 4.24 mm | 0.167 in | 34 AWG | 19 | UL Style 2937 | 80 °C | -20 ░C | Audio Control Instrumentation | 100 ft | 30.5 m |
