A3DA Series

Catalog

SWITCH PUSH SPST-NO 0.1A 30V

Part	Mechanical Life	Electrical Life	Actuator Marking	Panel Cutout Dimensions [diameter]	Illumination Voltage (Nominal)	Termination Style	Current Rating (Amps)	Circuit	Actuator Type	Color - Actuator/Cap	Switch Function	Type	Mounting Type	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Type, Color	Voltage Rating - DC	(Select First, Then Apply Filters) Compatible Series	Requires	Panel Cutout Dimensions	Illumination
Omron Automation and Safety A3DA-90A1-00EG	1000000 Cycles	100000 Cycles	No Marking	8 mm	2.1 VDC	Solder Lug	100 mA	SPST-NO	Button Square	Green	Off-Mom	Illuminated Standard	Panel Mount Front	IP40	55 °C	-10 °C	Green LED	30 V
Omron Automation and Safety A3DA-500W									Pushbutton Square										A3D Omron	Contact Block(s)	8 mm	Illuminated - White
Omron Automation and Safety A3DA-90A1-00ER	1000000 Cycles	100000 Cycles	No Marking	8 mm	1.7 VDC	Solder Lug	100 mA	SPST-NO	Button Square	Red	Off-Mom	Illuminated Standard	Panel Mount Front	IP40	55 °C	-10 °C	LED Red	30 V

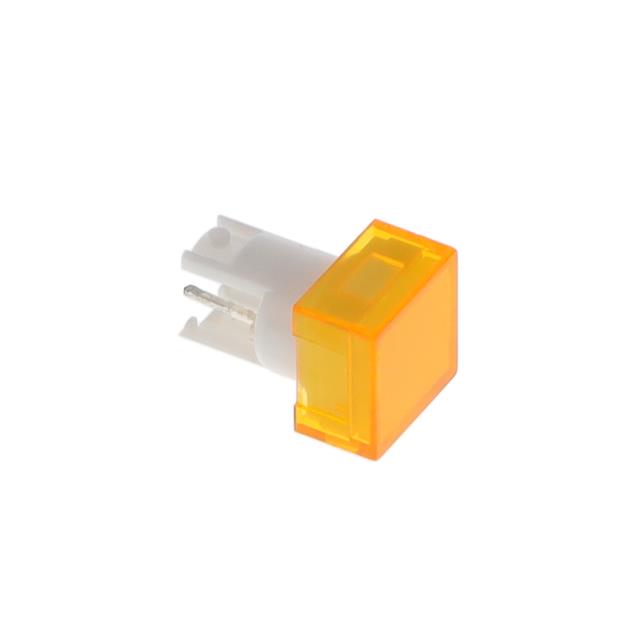

Omron Automation and Safety A3DA-500Y									Pushbutton Square										A3D Omron	Contact Block(s)	8 mm	Illuminated - Yellow

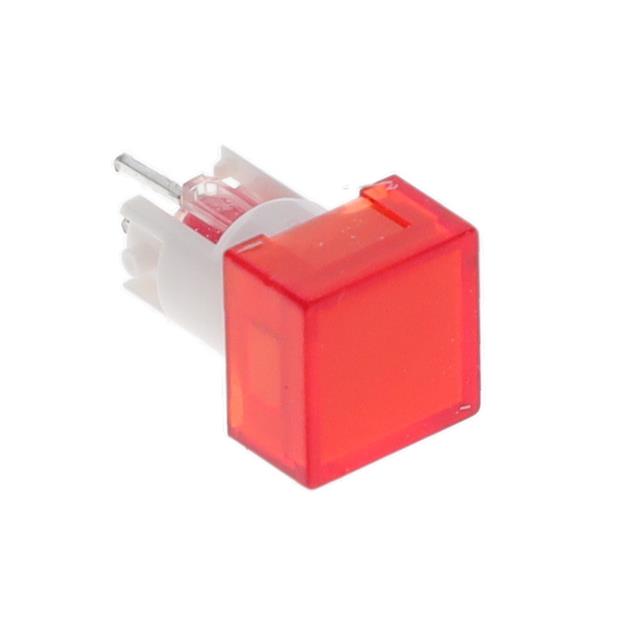

Omron Automation and Safety A3DA-500R									Pushbutton Square										A3D Omron	Contact Block(s)	8 mm	Illuminated - Red
Omron Automation and Safety A3DA-5201
Omron Automation and Safety A3DA-501B
