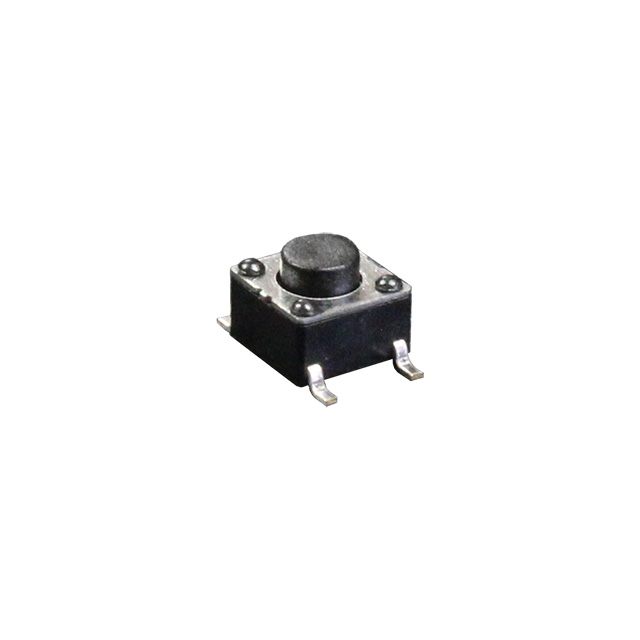

CS11025 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 50V

Part	Switch Travel	Actuator Material	Mounting Type	Switch Function	Outline [x]	Outline [y]	Actuator Type	Termination Style	Actuator Height off PCB, Vertical [z]	Actuator Orientation	Contact Rating @ Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Illumination	Operating Force

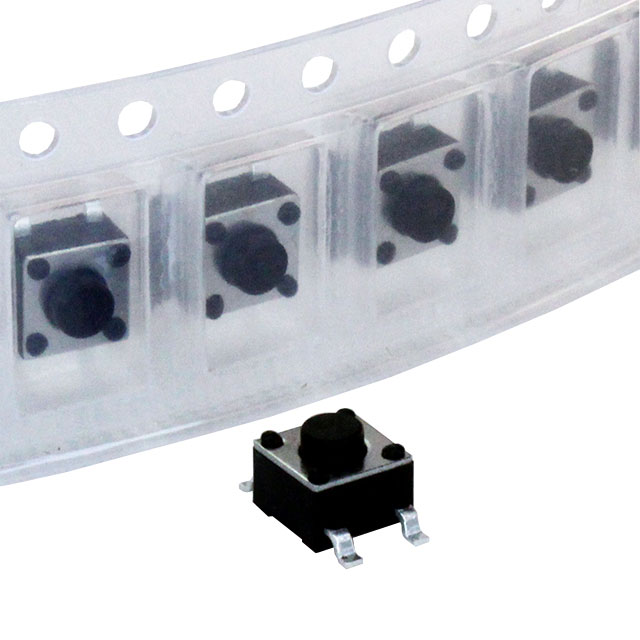

CIT Relay and Switch CS11025.0F160	0.25 mm	Nylon 6/6 Polyamide (PA66)	Surface Mount	Off-Mom	6 mm	6 mm	Standard	Gull Wing	5 mm	Top Actuated	0.05 A 50 VDC	85 °C	-40 C	SPST-NO	Non-Illuminated	160 gf

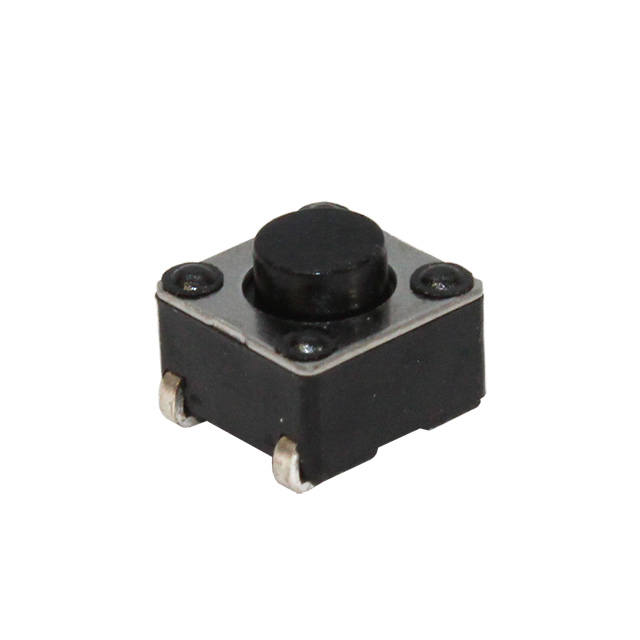

CIT Relay and Switch CS11025.0F260J	0.25 mm	Polyamide (PA46) Nylon 4/6	Surface Mount	Off-Mom	6 mm	6 mm	Plunger for Cap	J Lead	5 mm	Top Actuated	0.05 A 50 VDC	85 °C	-40 C	SPST-NO	Non-Illuminated	260 gf
CIT Relay and Switch CS11025.0F260	0.25 mm	Polyamide (PA46) Nylon 4/6	Surface Mount	Off-Mom	6 mm	6 mm	Plunger for Cap	Gull Wing	5 mm	Top Actuated	0.05 A 50 VDC	85 °C	-40 C	SPST-NO	Non-Illuminated	260 gf
CIT Relay and Switch CS11025.0F100	0.25 mm	Polyamide (PA46) Nylon 4/6	Surface Mount	Off-Mom	6 mm	6 mm	Plunger for Cap	Gull Wing	5 mm	Top Actuated	0.05 A 50 VDC	85 °C	-40 C	SPST-NO	Non-Illuminated	100 gf
CIT Relay and Switch CS11025.0F160J	0.25 mm	Polyamide (PA46) Nylon 4/6	Surface Mount	Off-Mom	6 mm	6 mm	Plunger for Cap	J Lead	5 mm	Top Actuated	0.05 A 50 VDC	85 °C	-40 C	SPST-NO	Non-Illuminated	160 gf
